System Diagram

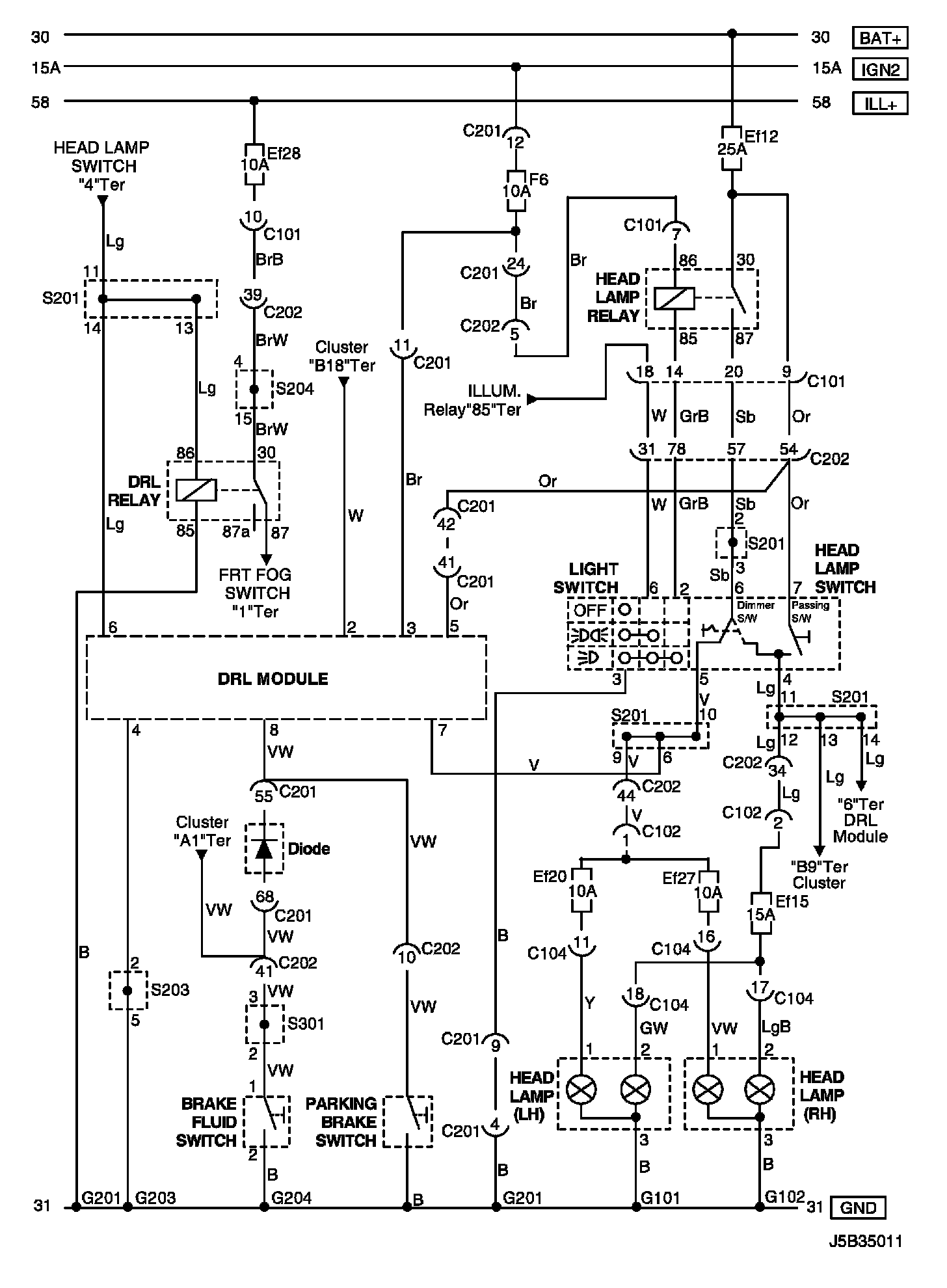

DRL (Day Time Running Light) Circuit Diagram:
WIRING DIAGRAM
C101 - G204:

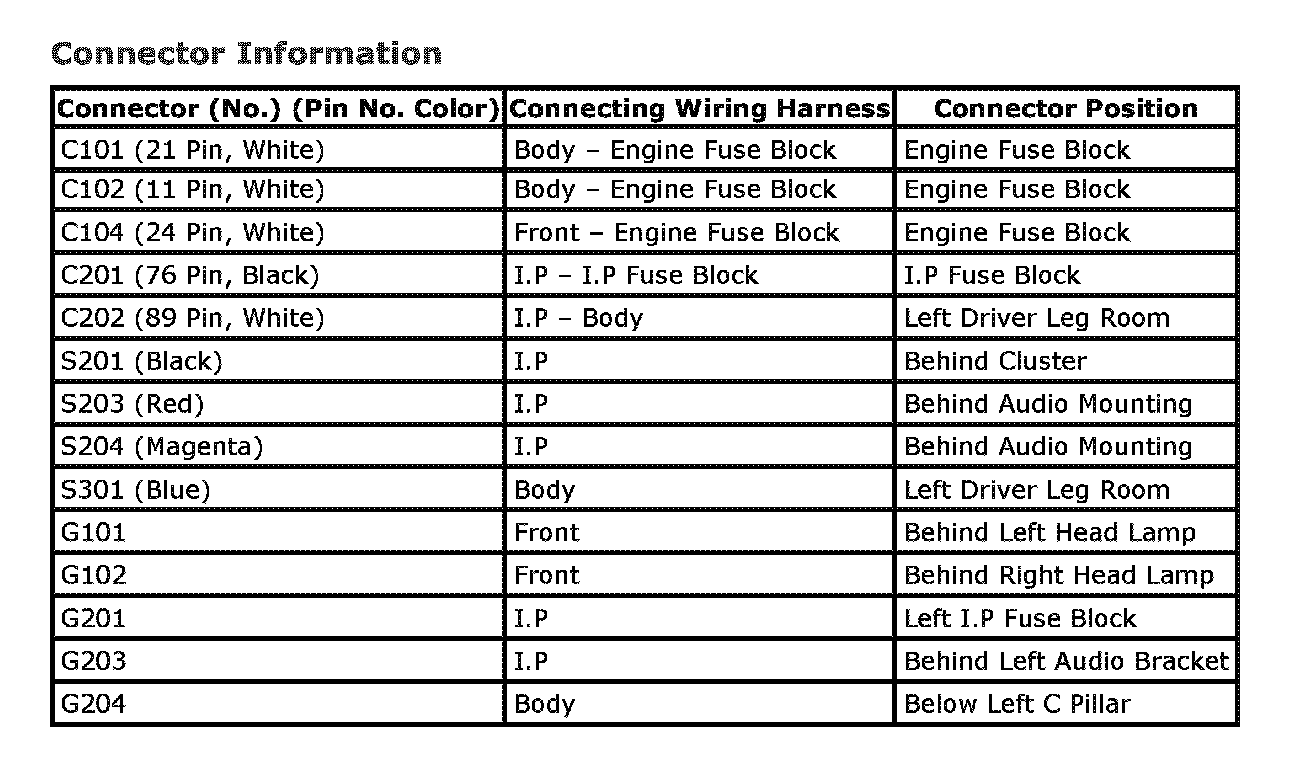

CONNECTOR INFORMATION

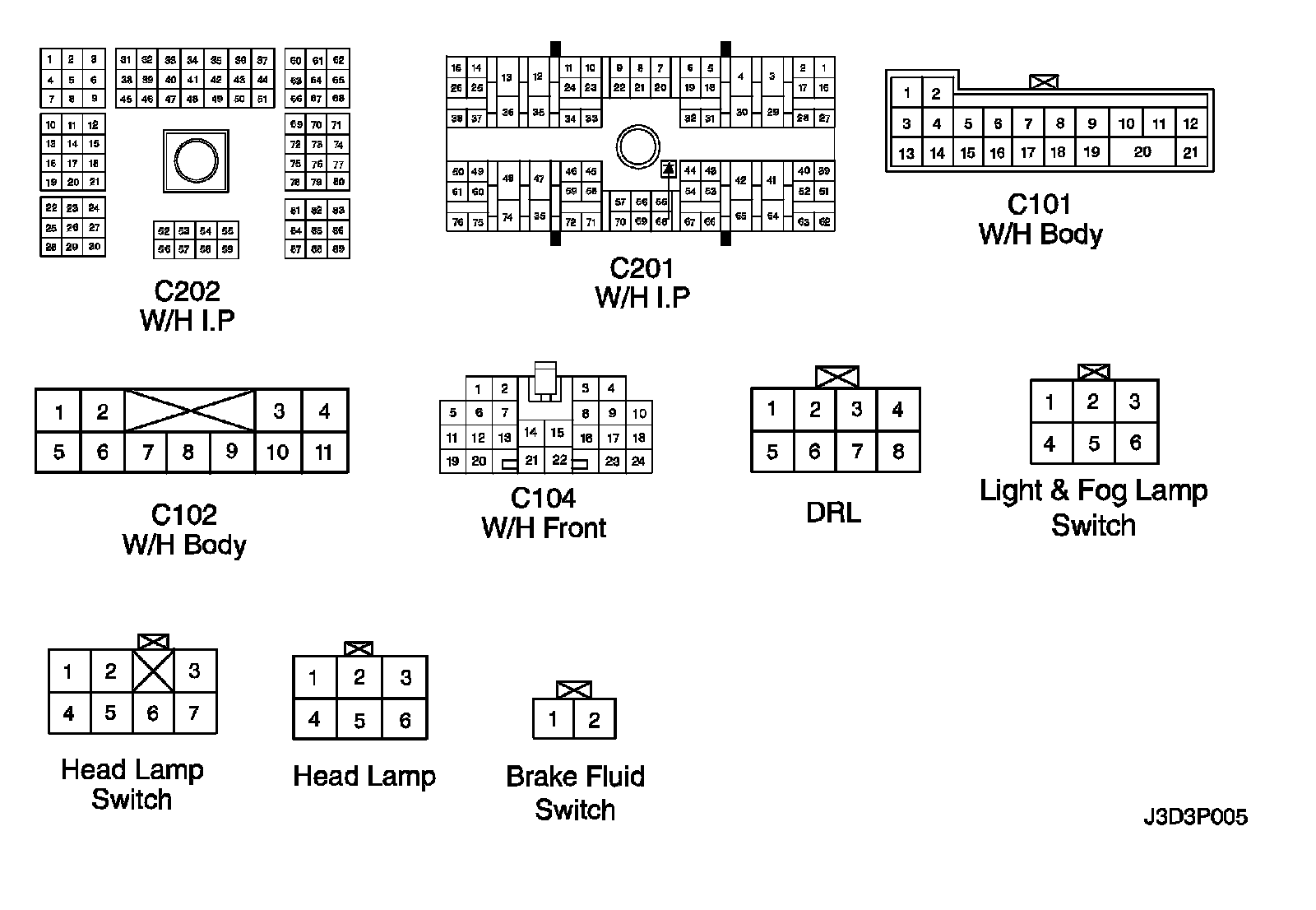

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

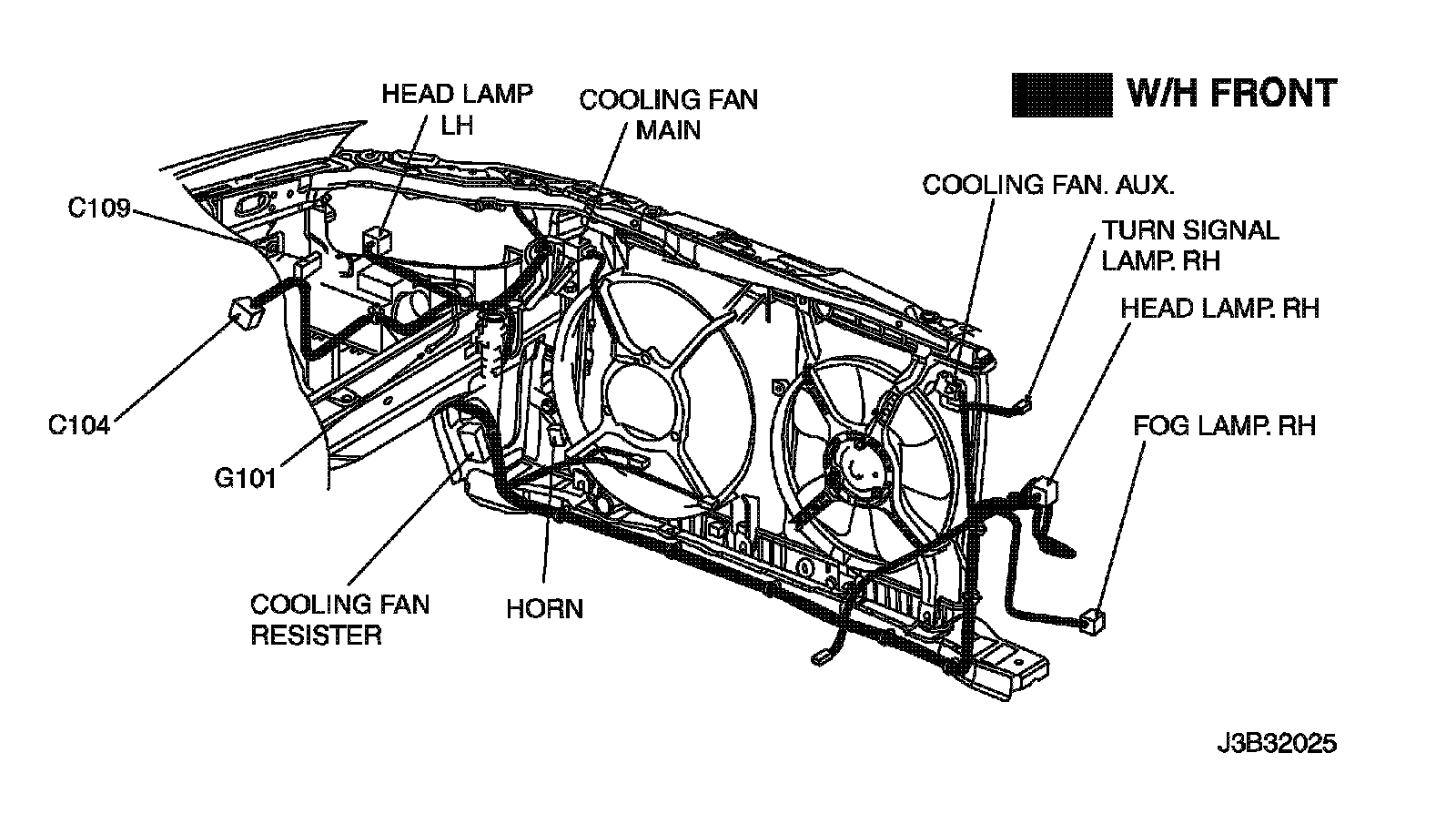

W/H FRONT:

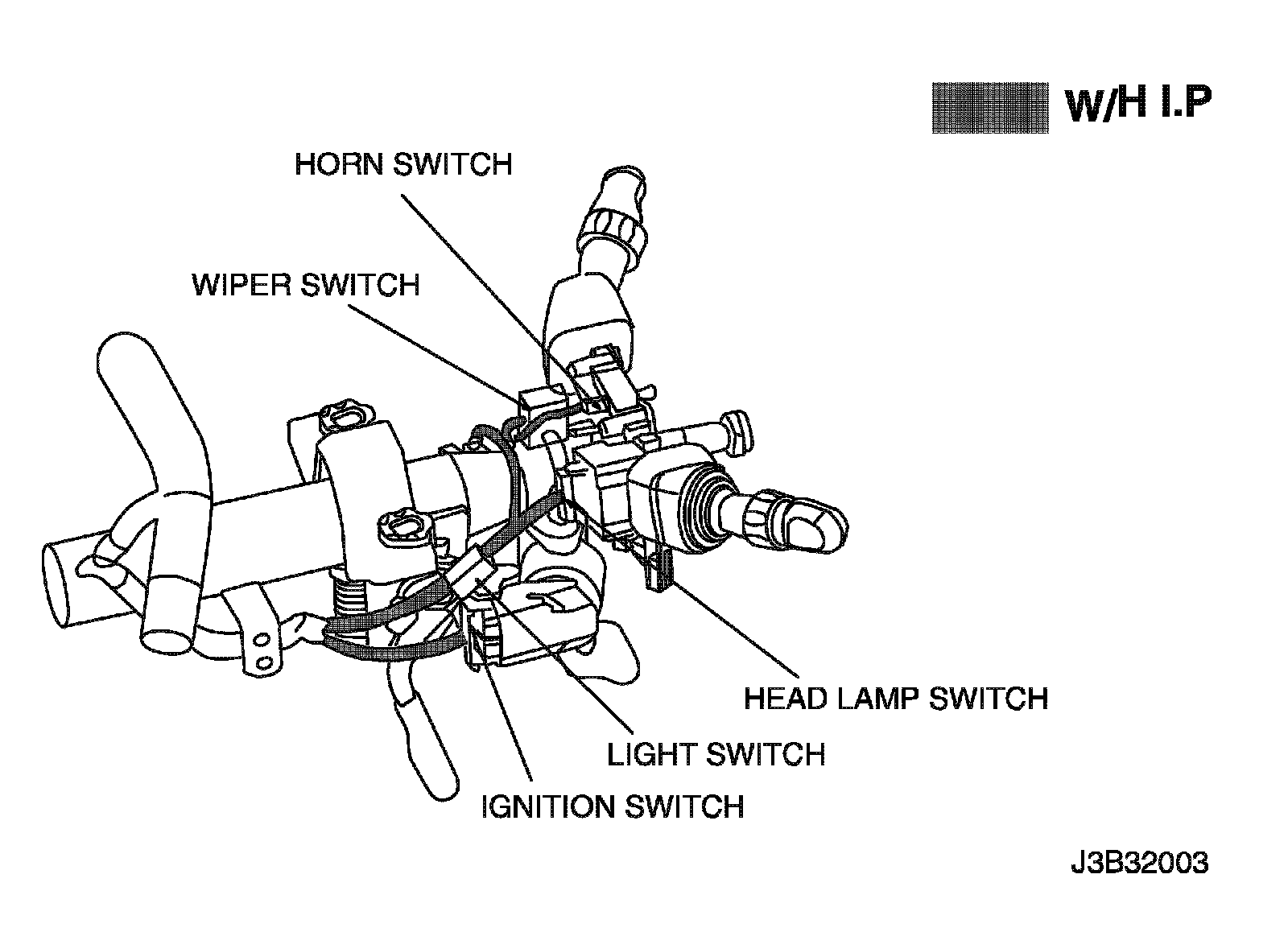

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S201:
S203:
S301 (Notchback):
S301 (Hatchback):
S301 (Station Wagon):
SPLICE PACK
