Remote Keyless Entry and Anti-Theft System Circuit

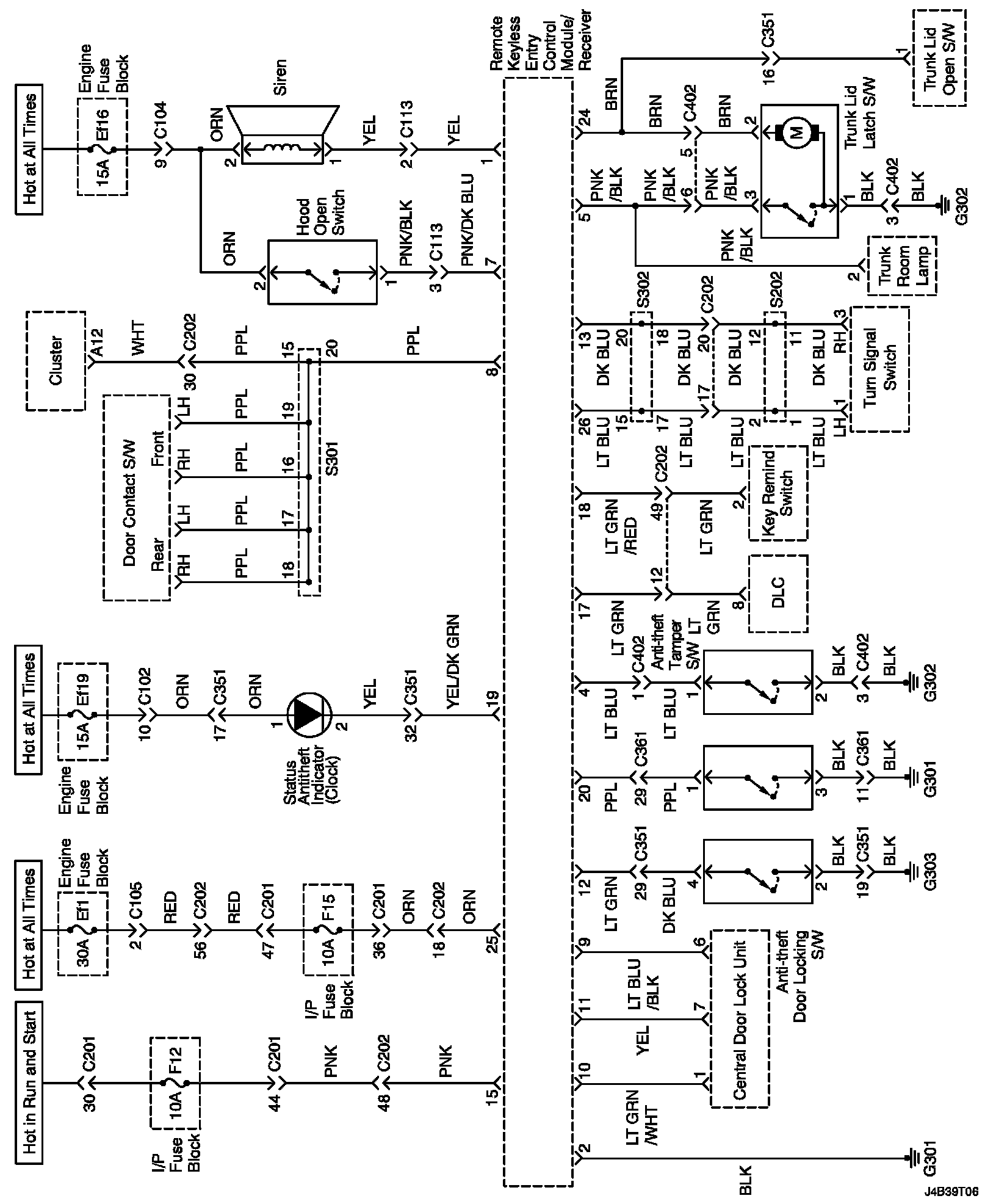

Remote Keyless Entry And Anti-Theft System Circuit Wiring Diagram:
