Side Sensor Removal and Installation: Installation

CAUTION: Proper operation of side sensor requires sensor be rigidly attached to specified position.

Check that none of following faulty conditions exists.
- Bend, deformity or rust of under body.
- Foreign matter on mating surface of sensor.
Install side sensor (1) on under body (2) and tighten side sensor bolt (3) to specified torque.
Tightening torque

Side sensor bolt (a): 9 N.m (0.9 kg-m, 6.5 lb-ft)

Fig 1: Installing Side Sensor On Under Body
Courtesy of SUZUKI OF AMERICA CORP.

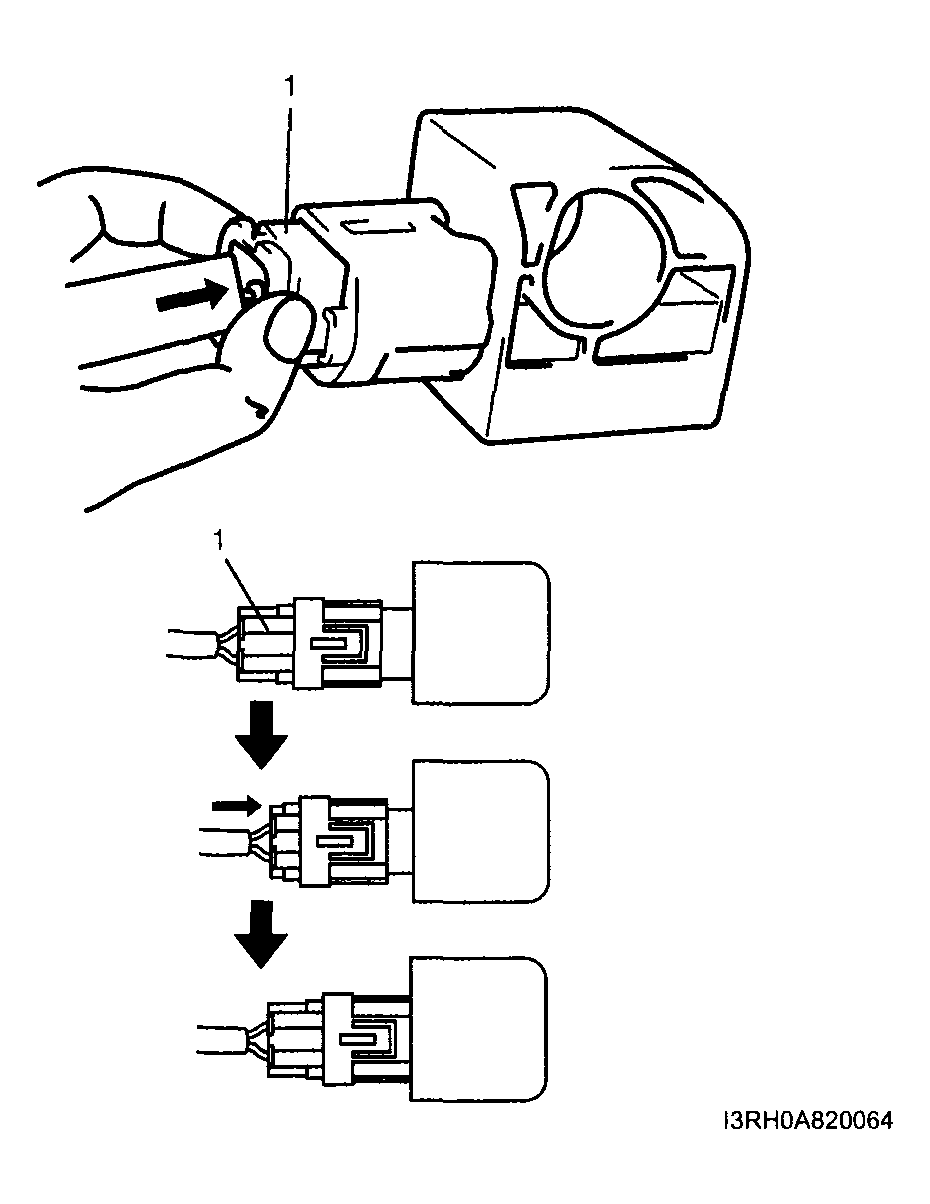

Connect side sensor connector pushing connector inner (1) as shown.

Fig 2: Connecting Side Sensor Connector Pushing Connector Inner
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable at battery.
Enable air bag system. Refer to "ENABLING AIR BAG SYSTEM :".
