Power Steering (P/S) System (If Equipped) Inspection

Visually check power steering system for leaks or damage.
Check fluid level with engine stopped.
If it is lower than LOWER level line, fill fluid up to UPPER level line.

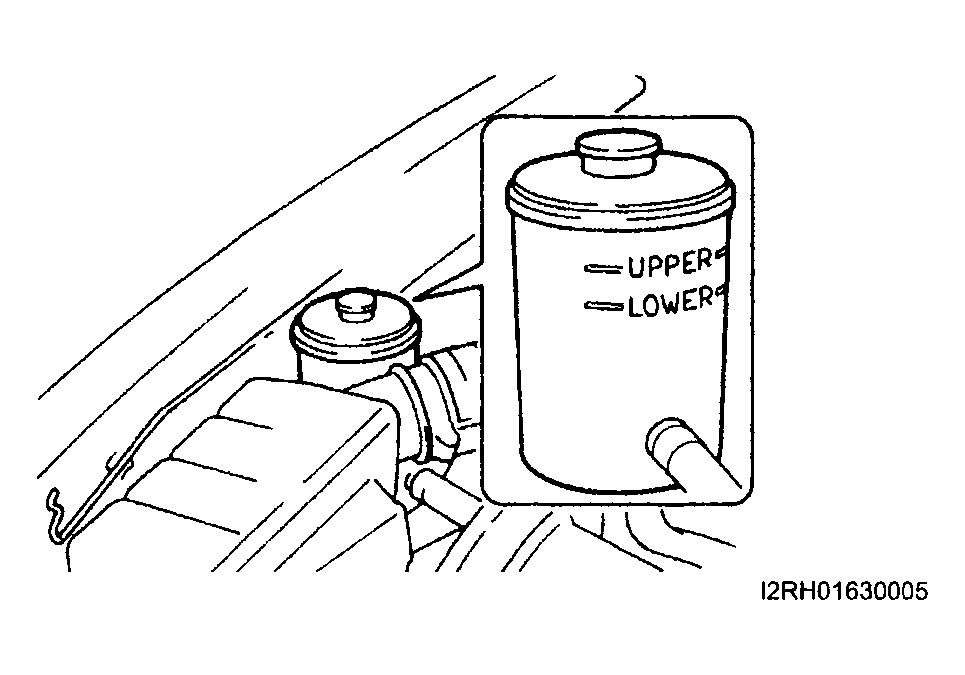

Fig 1: Checking Fluid Level Of Power Steering
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
- Fluid level should be checked when fluid is cool.
- Be sure to use an specified power steering fluid.
Visually check pump drive belt for cracks and wear.
Check belt for tension, referring to "DRIVE BELT INSPECTION :" If necessary, have belt adjusted or replaced.
