Special Tool

SPECIAL TOOLS DESCRIPTION

09912-58421 Checking tool set This kit includes the following items. 1. Tool body and washer, 2. Body plug, 3. Body attachment-1, 4. Holder, 5. Return hose and clamp, 6. Body attachment-2 and washer, 7. Hose attachment-1, 8. Hose attachment-2
G04014275
 09912-58432 Fuel pressure gauge hose This tool included in fuel pressure gauge set (09912-58413). /
G04014279

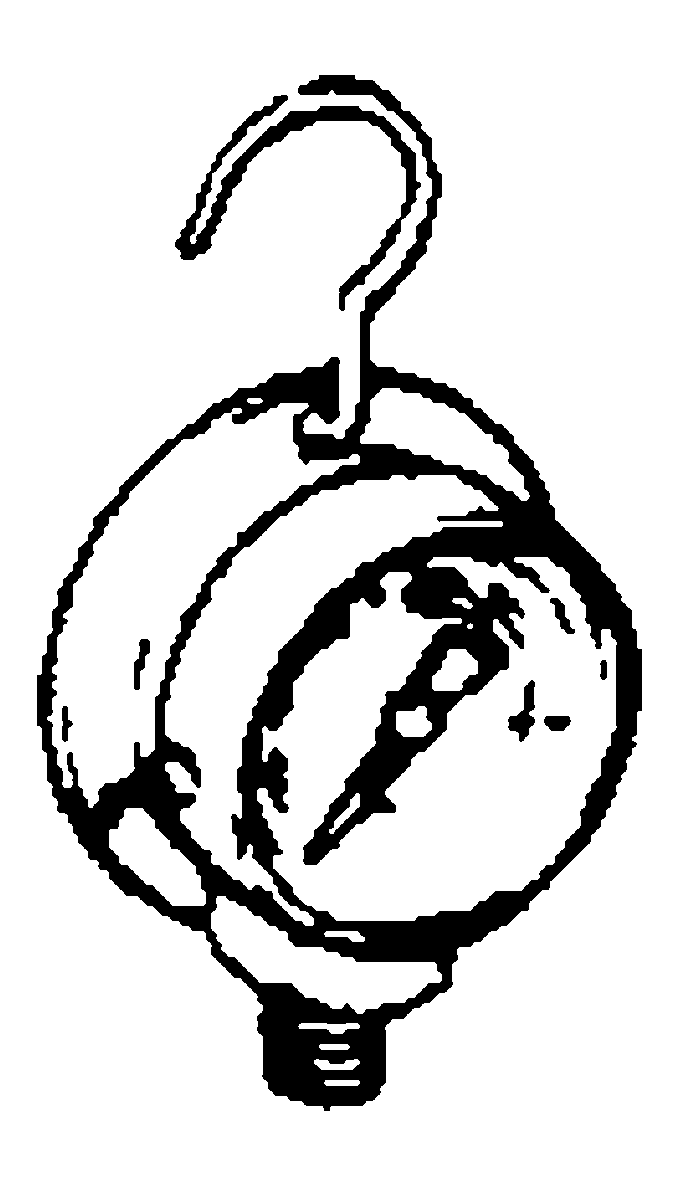

09912-58442 Fuel pressure gauge This tool included in fuel pressure gauge set (09912-58413).
G04014276
 09912-58490 3-way joint & hose
G04014280
09917-47011 Vacuum pump gauge
G04014277
 09919-47020 Quick joint remover / /
G04014281
09930-88530 Injector test lead
G04014278
