DTC P0481: Cooling Fan 2 (A/C Condenser Fan) Control Circuit: Wiring Diagram

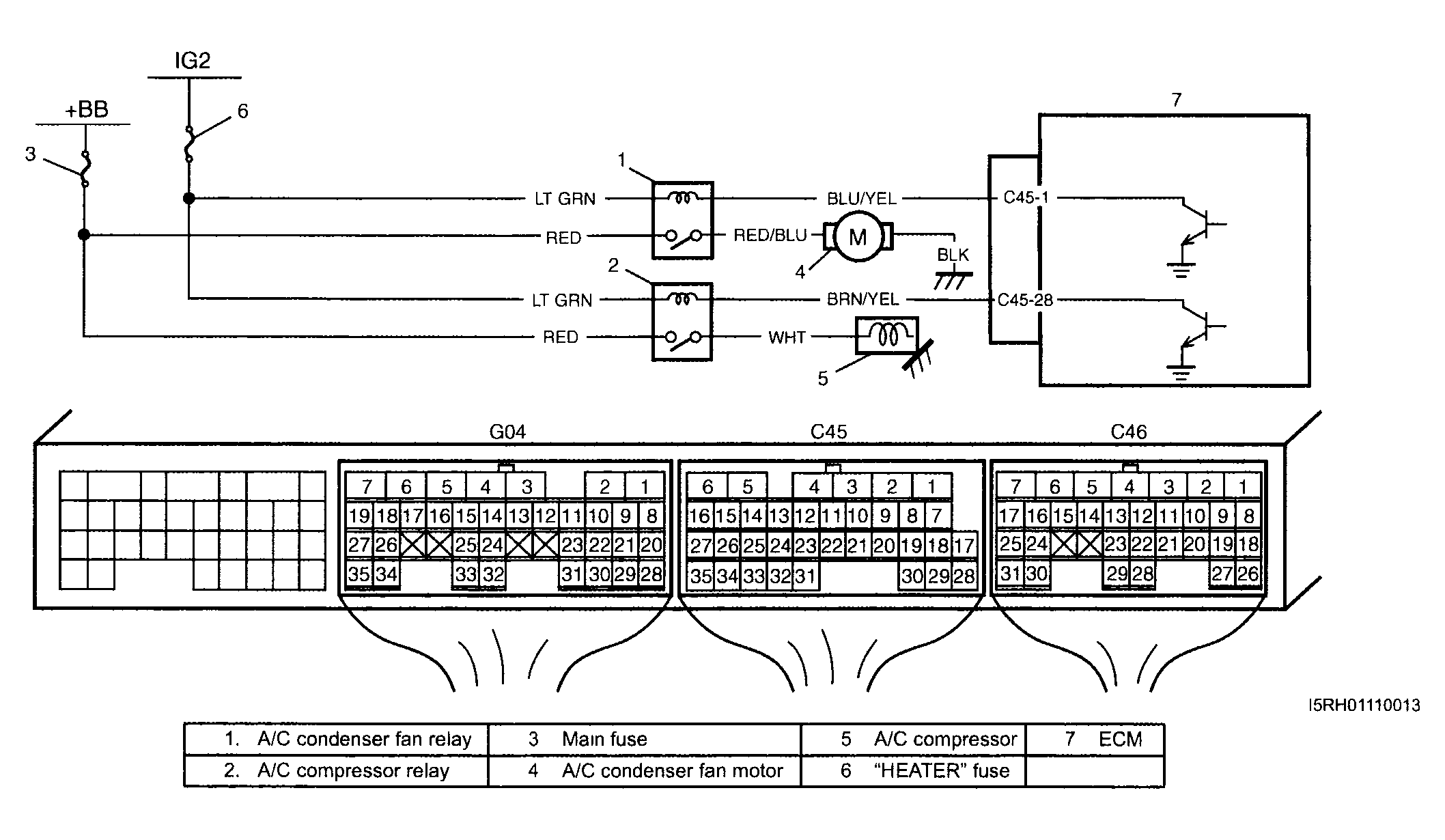

Fig 1: A/C Condenser Cooling Fan Control Circuit - Wiring Diagram (DTC P0481)
G04013746Courtesy of SUZUKI OF AMERICA CORP.
