DTC P0335: Crankshaft Position Sensor Circuit: Wiring Diagram

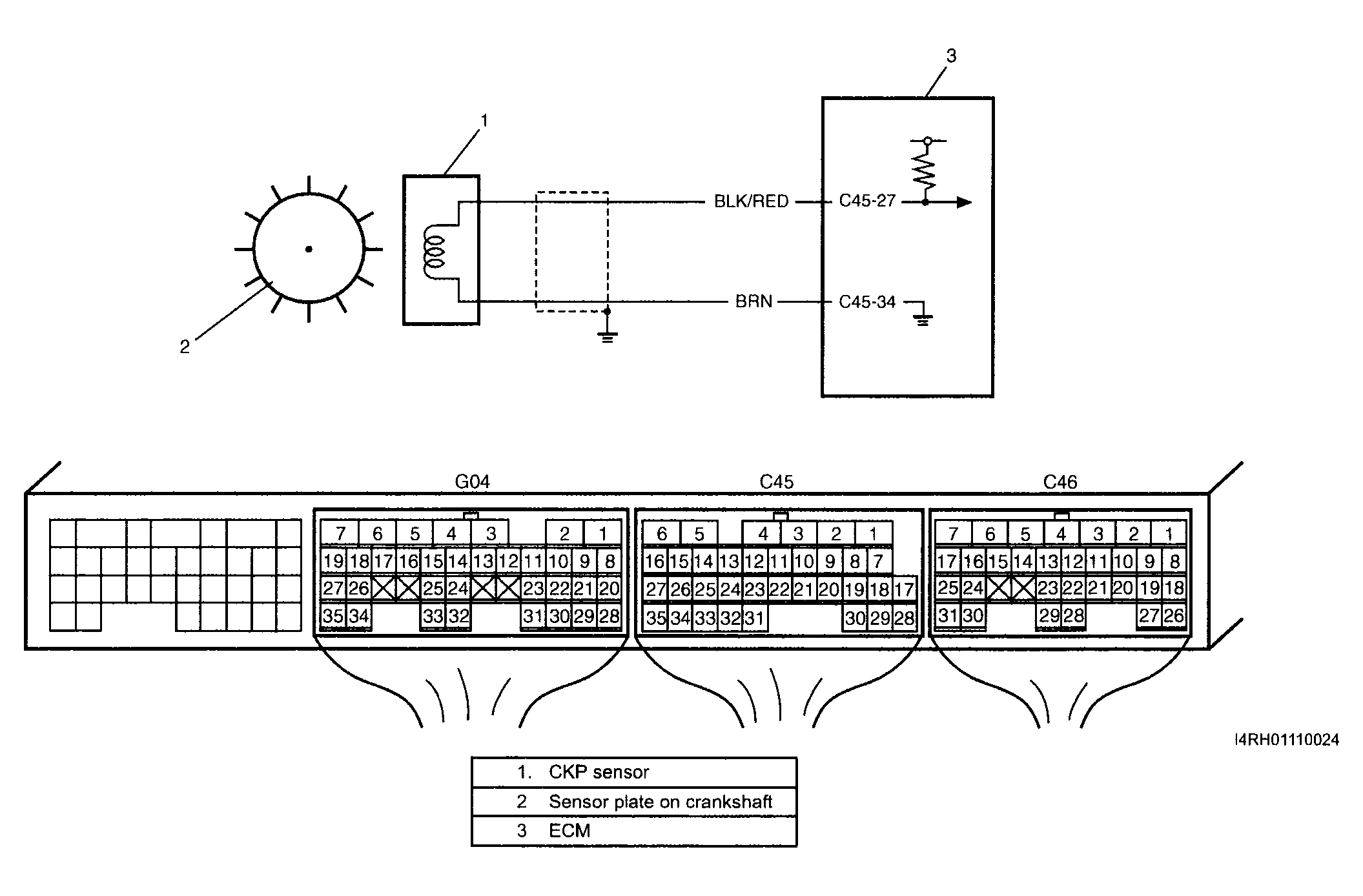

Fig 1: Crankshaft Sensor Circuit - Wiring Diagram (DTC P0335)
G04013721Courtesy of SUZUKI OF AMERICA CORP.
