Front Door Window Regulator Removal and installation: Installation

Reverse removal procedure noting the following instruction.

• Apply grease to sliding portions of window regulator.

  : Grease 99000-25010

• Tighten front door window regulator attaching bolts to proper tightening order.

Front door window regulator bolt tightening order

(a) --> (b)--> (c)

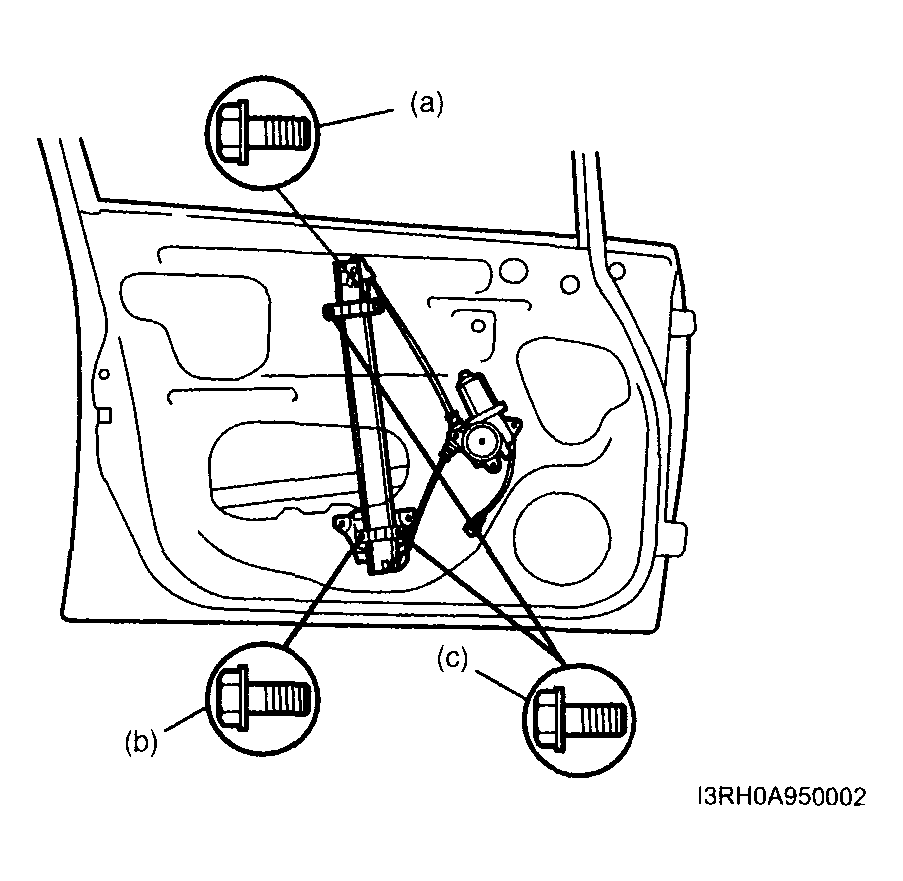

Fig 1: Tightening Front Door Window Regulator Attaching Bolts

Courtesy of SUZUKI OF AMERICA CORP.
