Manual Transaxle Assembly Disassembly and Reassembly: Disassembly

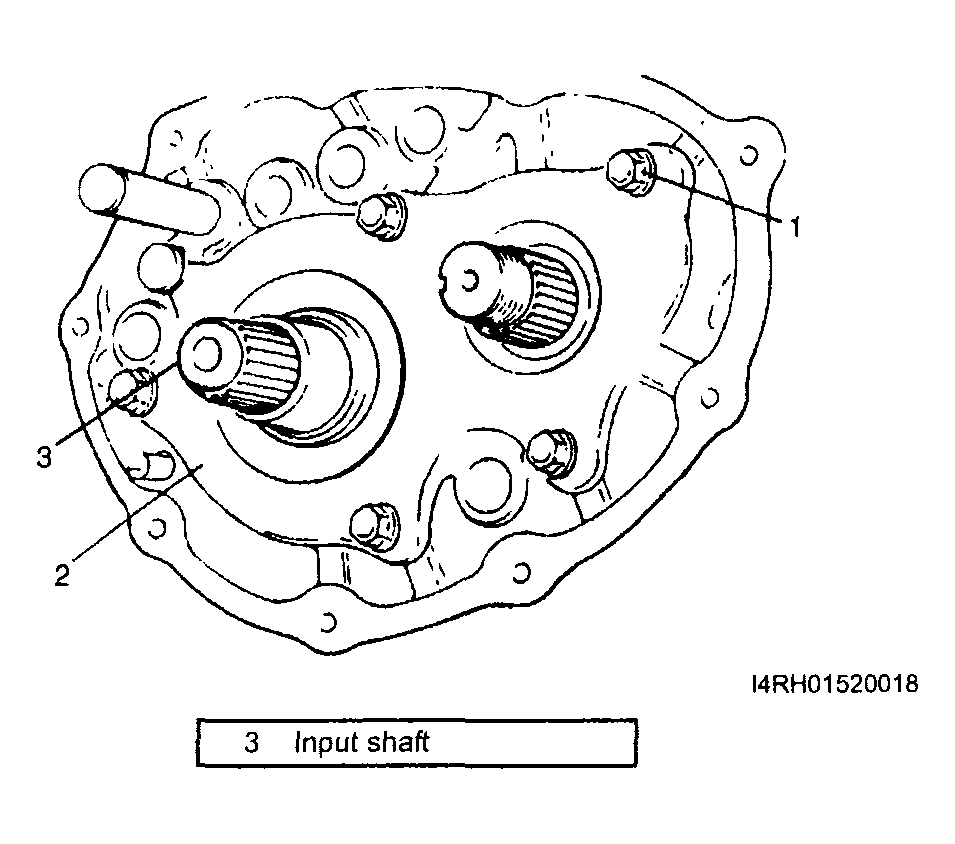

Remove left case plate bolts (1), and take off left case plate (2).

Fig 1: Removing Left Case Plate Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove bearing set shim.

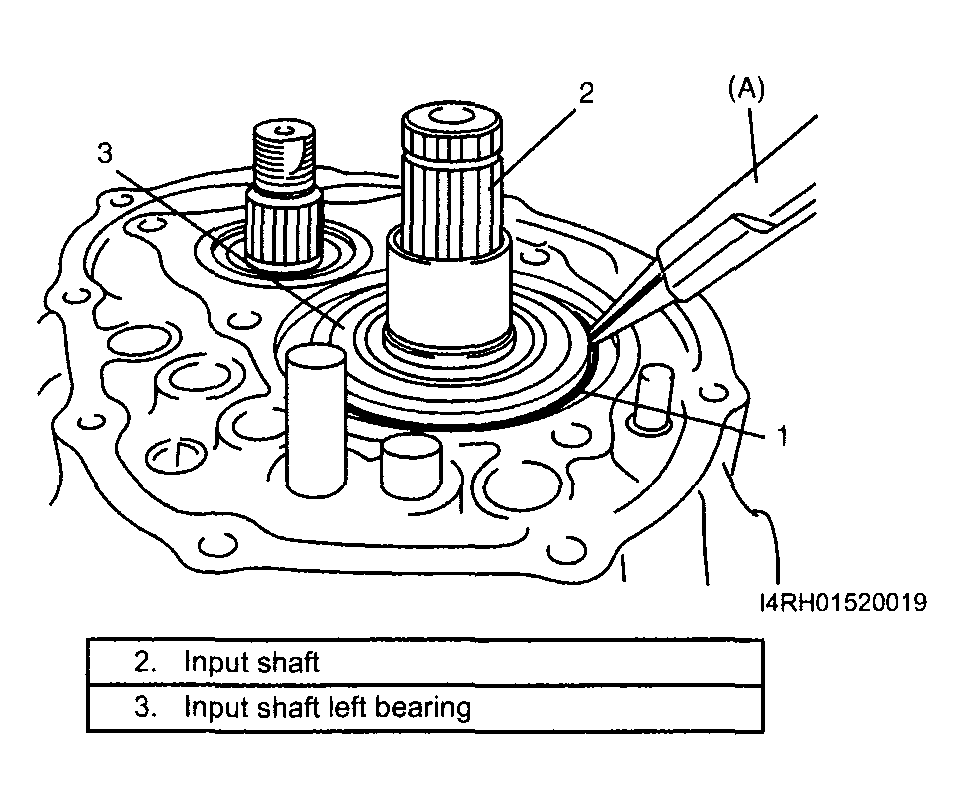

Remove snap ring (1) using special tool.
Special tool

(A): 09900--06107

Fig 2: Removing Snap Ring Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove gear shift locating bolts (1), then take out locating springs and steel balls.
Remove back up lamp switch (2).

Fig 3: Removing Back Up Lamp Switch
Courtesy of SUZUKI OF AMERICA CORP.
Remove reverse shaft bolt (2) with washer.
Remove transaxle case outside bolts (1) and clutch housing bolts.
Tapping left case flanges with plastic hammer, remove left case.

Fig 4: Removing Transaxle Case Outside Bolts And Clutch Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.

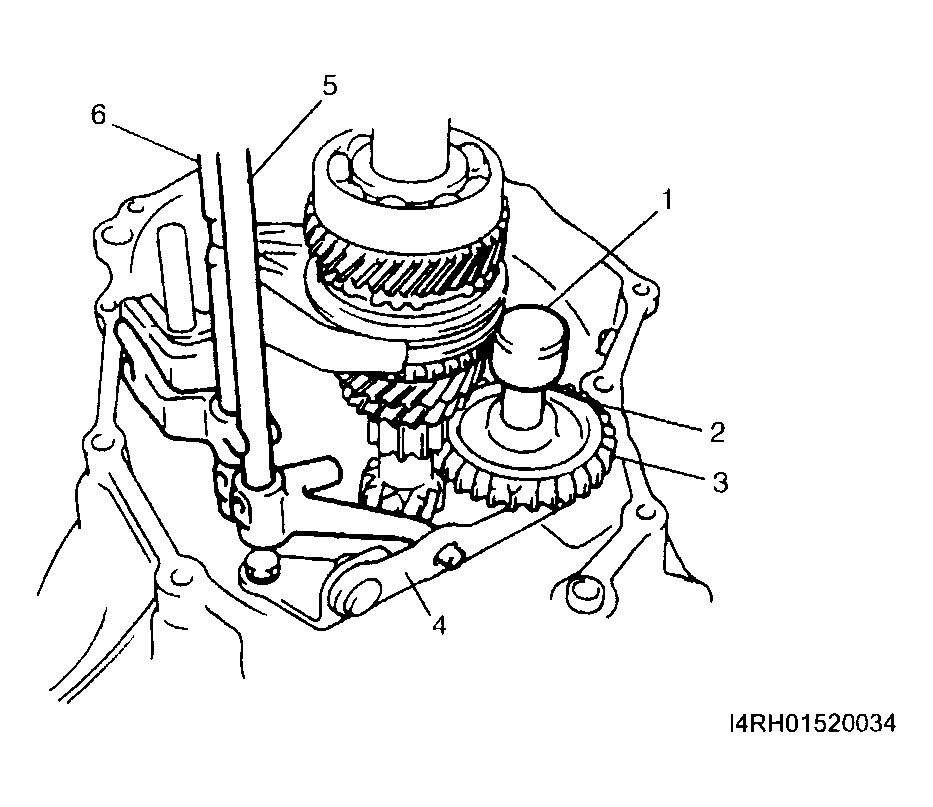

Pull out reverse gear shaft (1) with washer (2), then take off reverse idler gear (3).
Remove reverse gear shift lever (4).
Pull out 5th & reverse gear shift guide shaft (5) together with 5th & reverse gear shift shaft (6).
NOTE:
- When removing 5th & reverse gear shift shaft (6) and guide shaft (5), push up high speed gear shift shaft and shift it to 4th to facilitate removal of 5th & reverse shift shaft (6).
Fig 5: Removing Reverse Gear Shift Lever
Courtesy of SUZUKI OF AMERICA CORP.

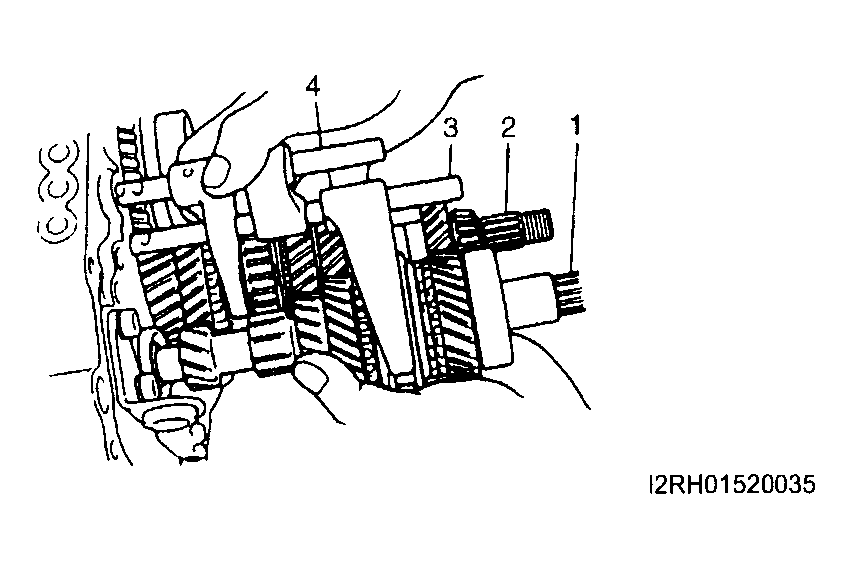

Tapping input shaft end with plastic hammer, push it out as assembly from case a little, then take out input shaft assembly (1), countershaft assembly (2), high speed gear shift shaft (3) and low speed gear shift shaft (4) all at once.

Fig 6: Removing Input Shaft Assembly (1), Countershaft Assembly (2), High Speed Gear Shift Shaft (3) And Low Speed Gear Shift Shaft (4)
Courtesy of SUZUKI OF AMERICA CORP.
Remove differential assembly from right case.
Remove countershaft left bearing outer race from left case (1) using special tool.
Special tool

(A): 09913--70123

Fig 7: Removing Countershaft Left Bearing Outer Race From Left Case Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove side bearing retainer bolts.

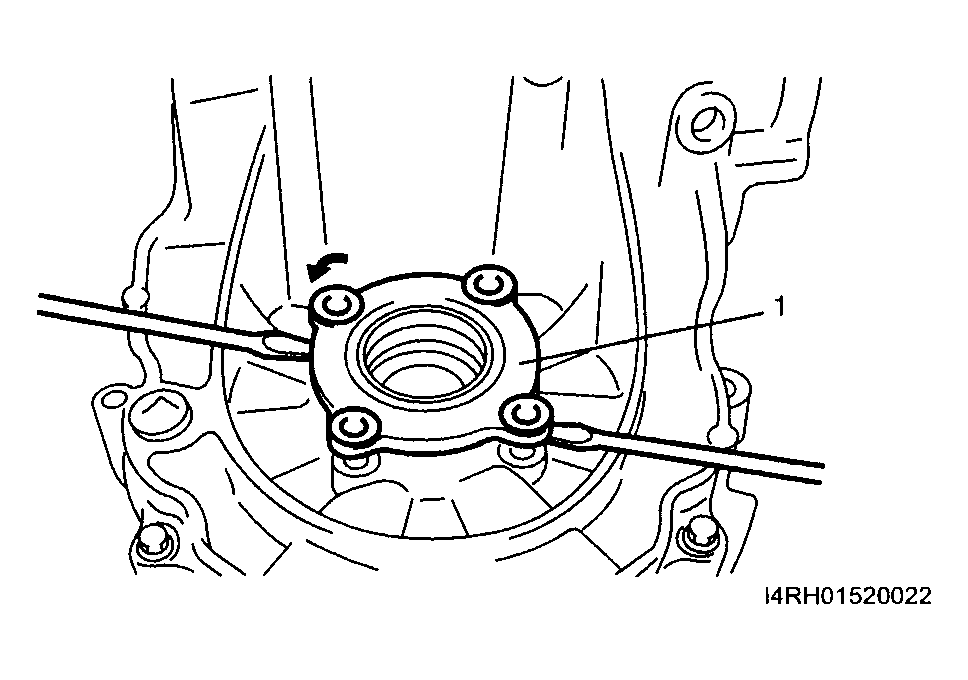

Turn side bearing retainer (1) counterclockwise until it stops, and remove side bearing retainer using 2 flat end rods or the like.

Fig 8: Removing Side Bearing Retainer
Courtesy of SUZUKI OF AMERICA CORP.

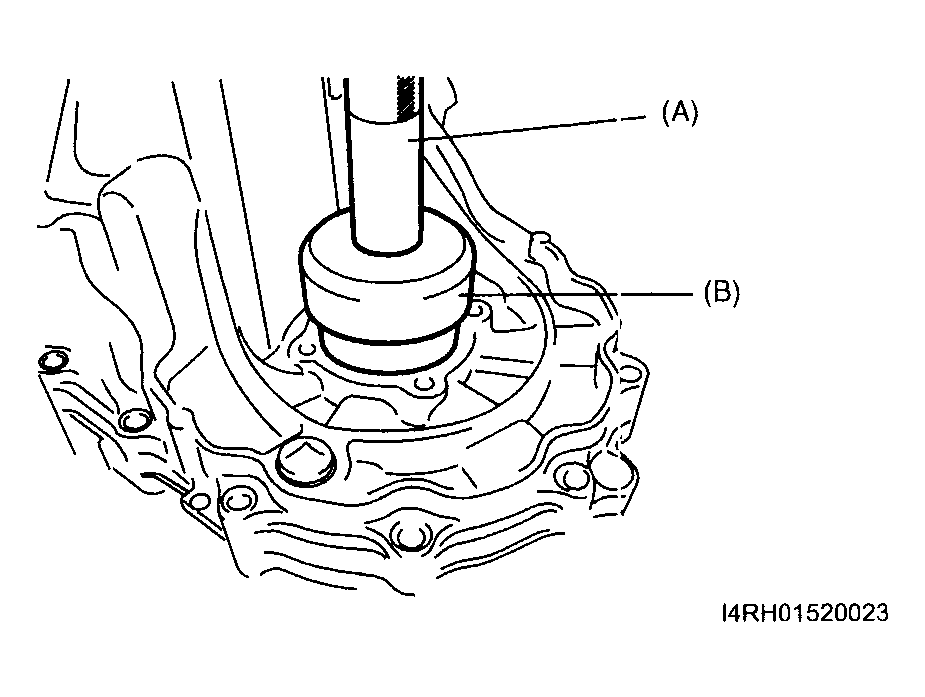

Remove differential side bearing outer race from left case using special tools.
Special tool

(A): 09924--74510

(B): 09926--27610

Fig 9: Removing Differential Side Bearing Outer Race From Left Case Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove differential assembly from right case.
