Gear Shift and Select Shaft Components

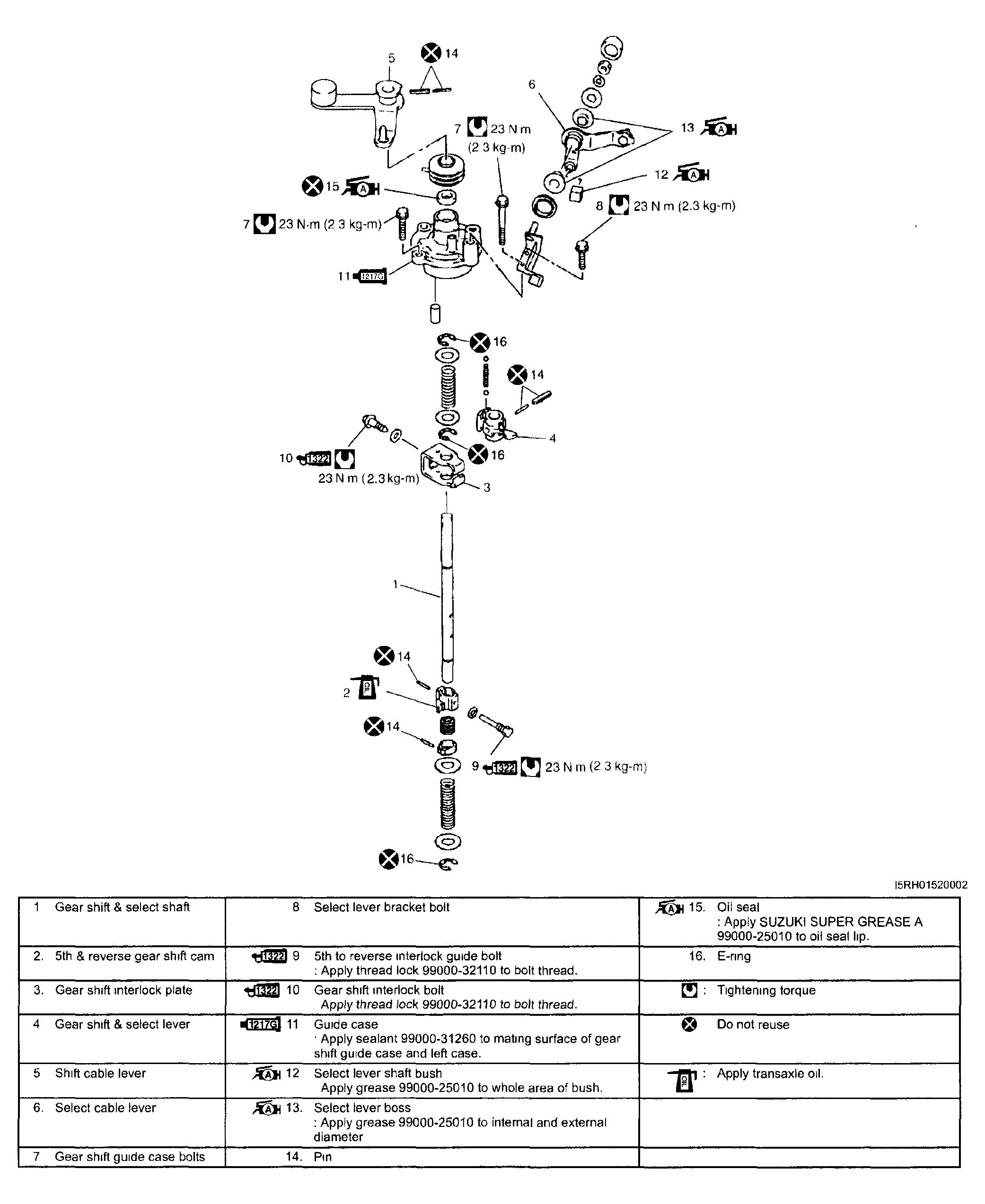

Fig 1: Identifying Gear Shift And Select Shaft Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
