Clutch Operating Cylinder Components

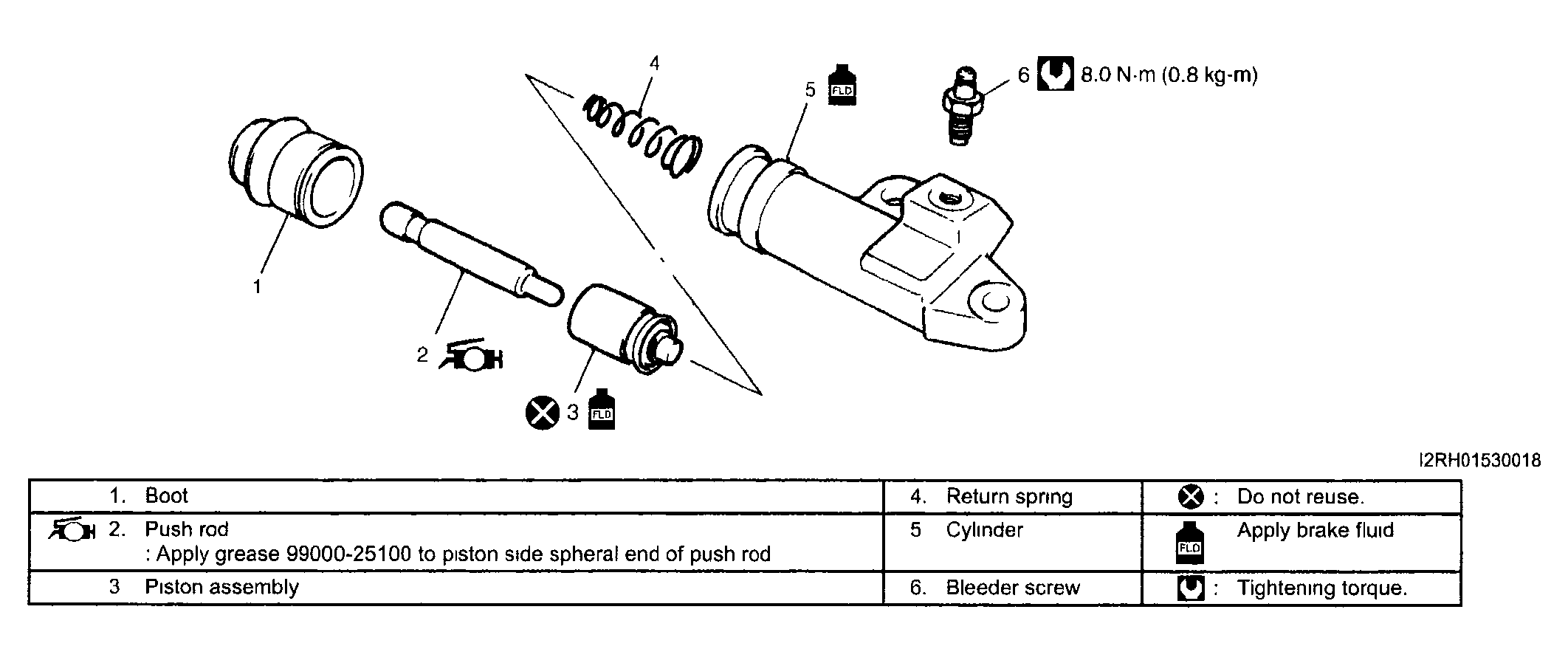

Fig 1: Identifying Clutch Operating Cylinder Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
