Special Tool

SPECIAL TOOL SPECIFICATION

09912-58432 Fuel pressure gauge hose This tool included in fuel pressure gauge set (09912-58413).
G04013826

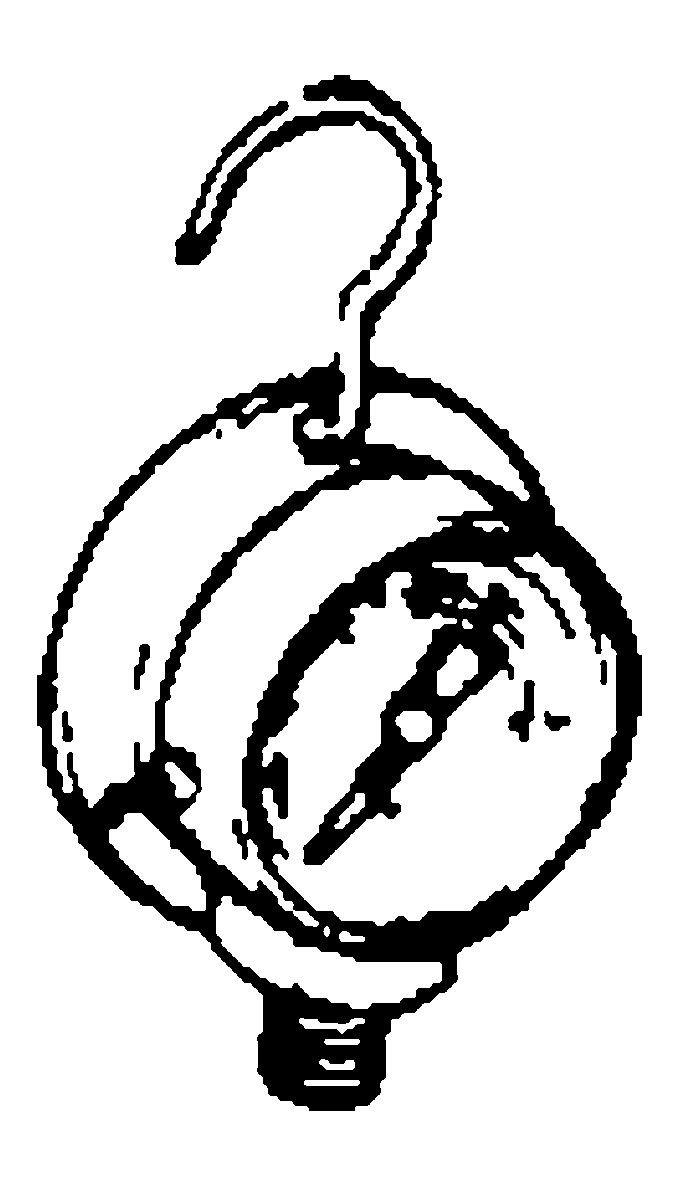

 09912-58442 Fuel pressure gauge This tool included in fuel pressure gauge set (09912-58413).
G04013828
09912-58490 3-way joint & hose
G04013827
 SUZUKI scan tool
-
This kit includes the following items. 1. Tech 2, 2. PCMCIA card, 3. DLC cable, 4. SAE 16/19 adapter, 5. Cigarette cable, 6. DLC loopback adapter, 7. Battery power cable, 8. RS232 cable, 9. RS232 adapter, 10. RS232 loop back connector, 11. Storage case, 12. Power supply
G04013829
