Aerio S, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information And Diagnosis
>>
Idle Air Control (IAC) System Check
>>
System / Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System / Wiring Diagram

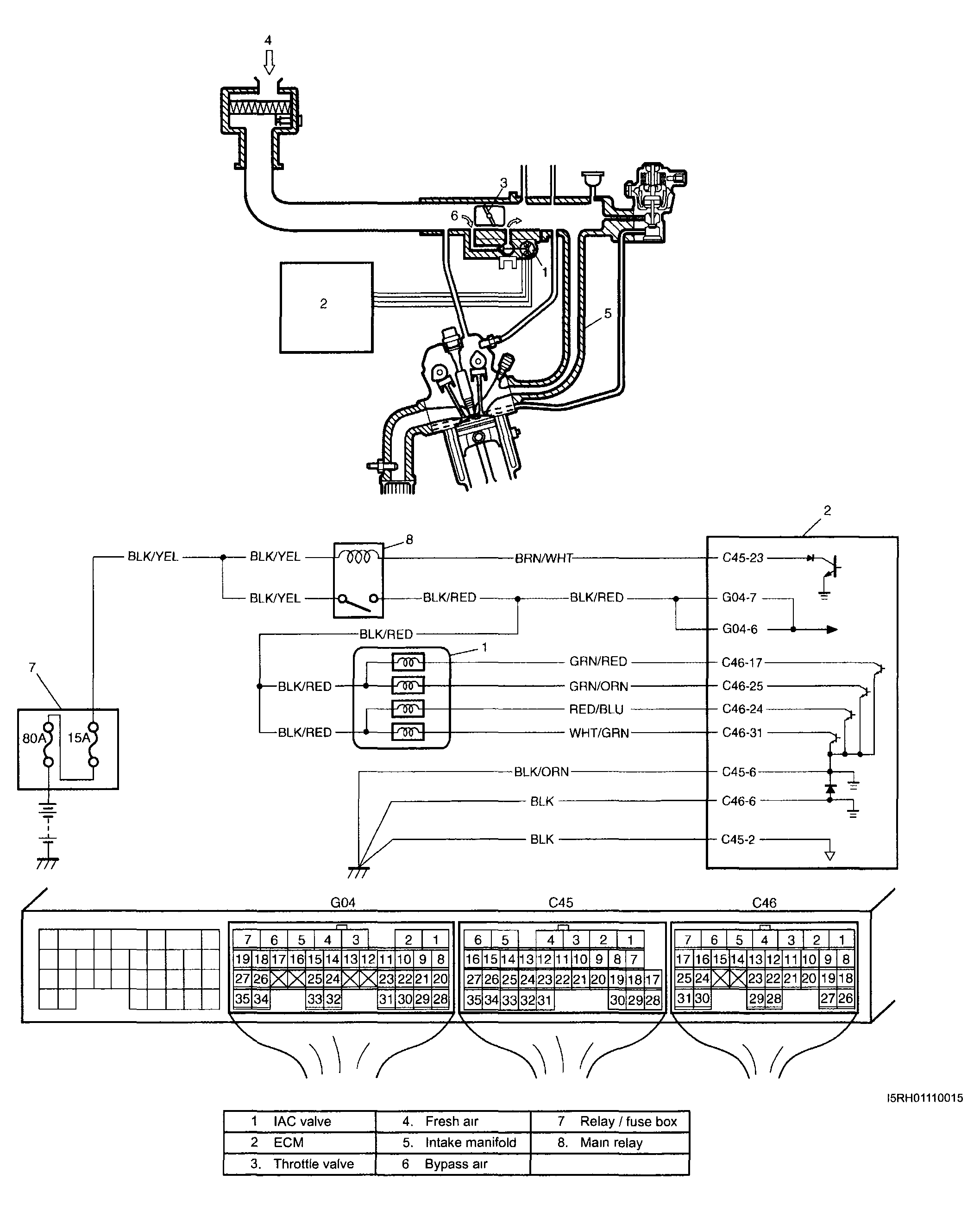

Fig 1: Idle Air Control - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
