DTC P0123: Throttle Position Sensor Circuit High Input: Wiring Diagram

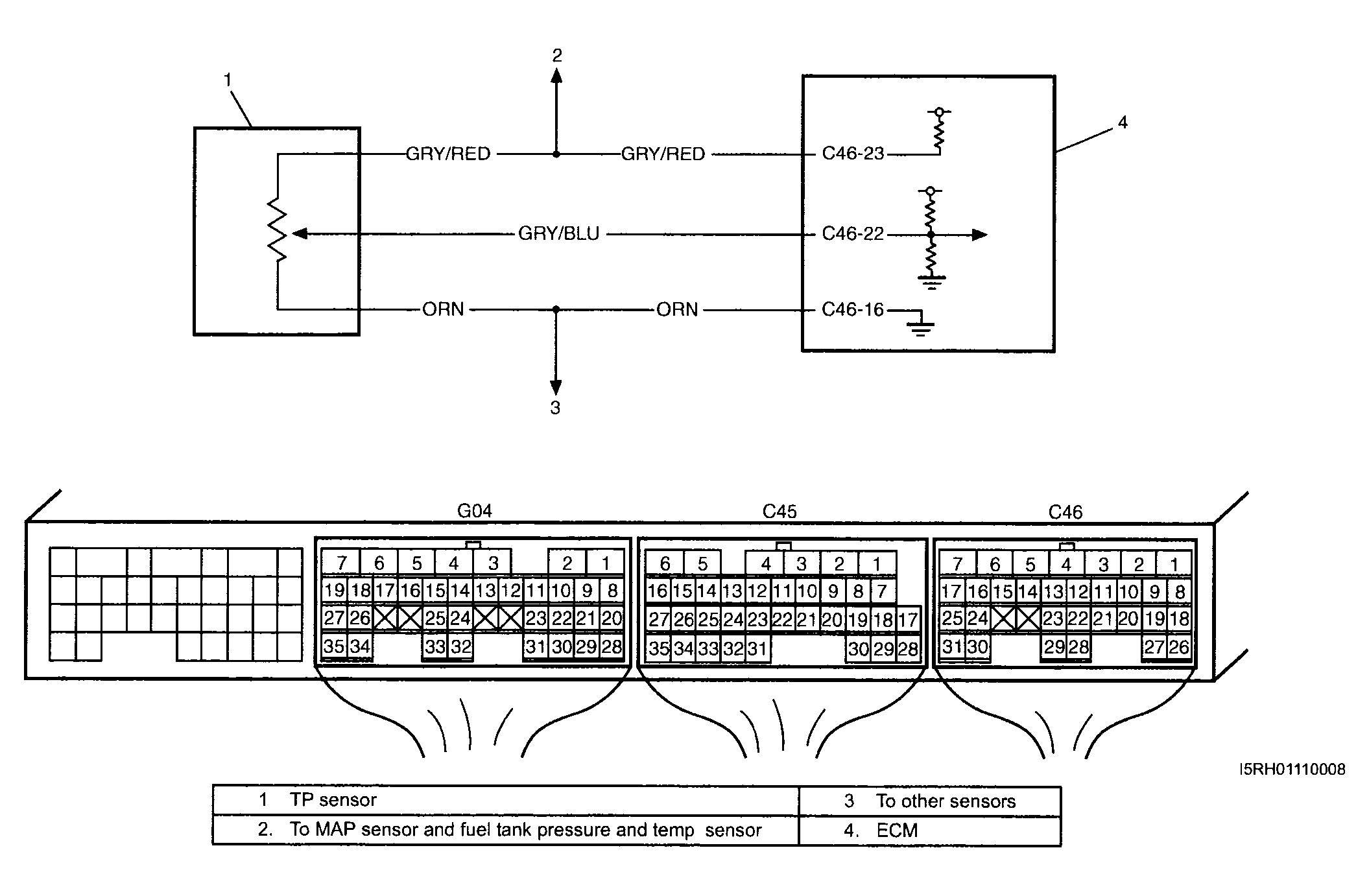

Fig 1: Throttle Position Sensor Circuit High Input - Wiring Diagram (DTC P0123)
G04013708Courtesy of SUZUKI OF AMERICA CORP.
