Generator Drive Belt Removal and Installation: Removal

1. Disconnect negative cable at battery.
2. Remove engine under cover of right side from vehicle body.
3. Loosen tensioner by turning the tensioner pulley clockwise.
4. While holding the tensioner and belt loosen, remove belt.

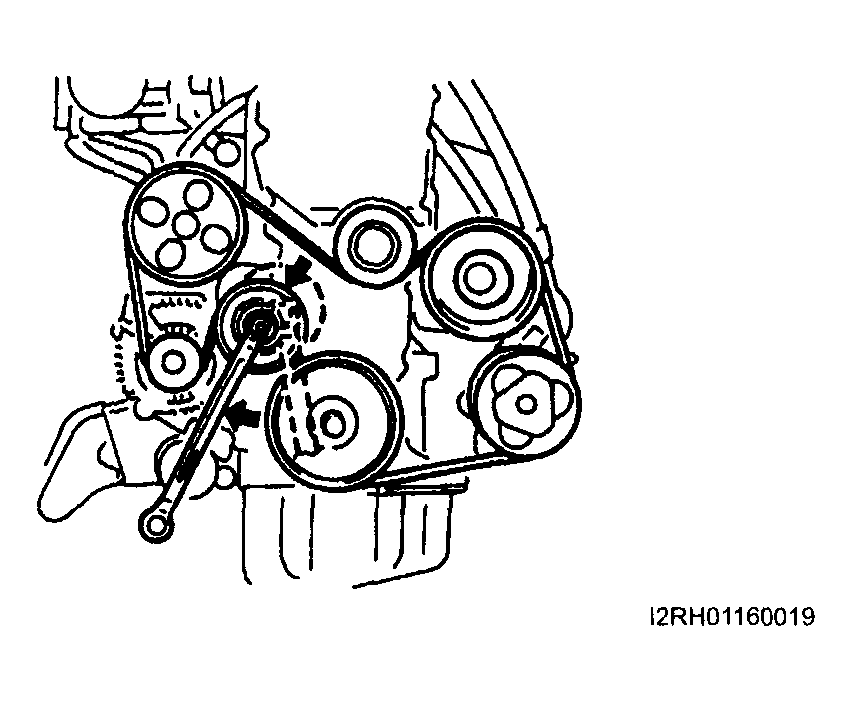

Fig 1: Removing Generator Drive Belt

Courtesy of SUZUKI OF AMERICA CORP.
