Power Door Mirror Switch Inspection

1. Remove mirror switch from door trim.
2. Check for continuity between terminals at each switch position.

If check result is not as specified, replace door mirror switch.

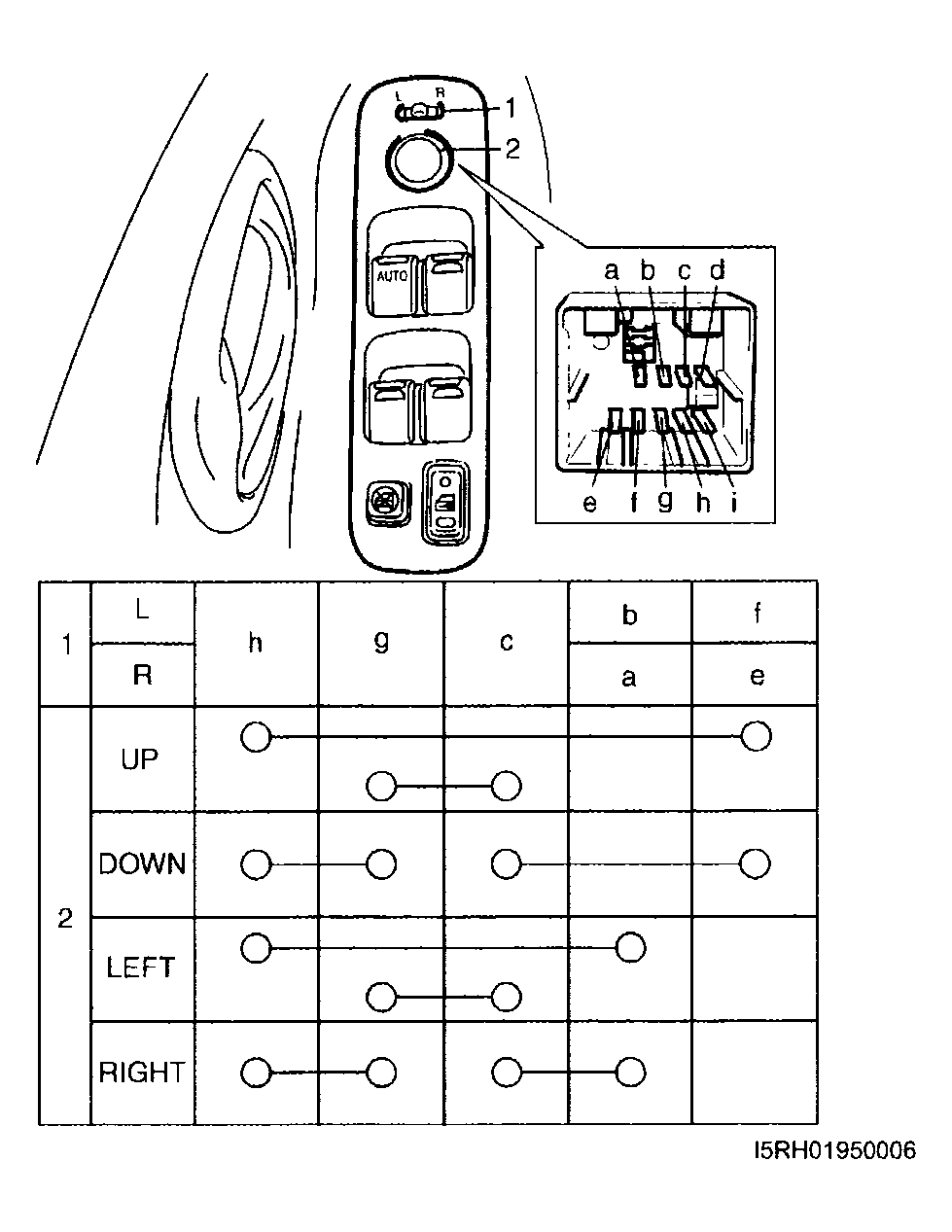

Fig 1: Checking Power Door Mirror Switch

Courtesy of SUZUKI OF AMERICA CORP.
