TCM Power and Ground Circuit Check: Wiring Diagram

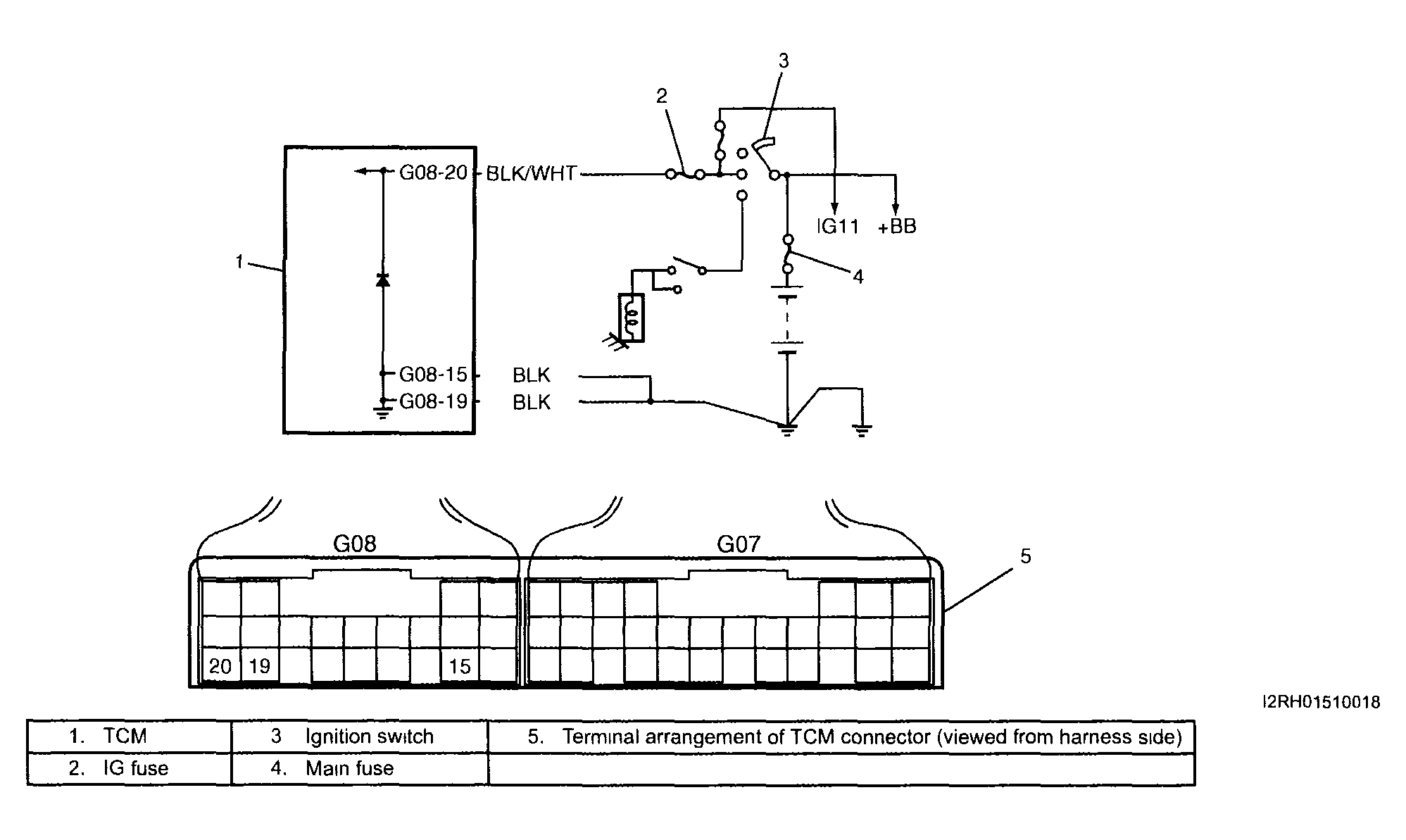

Fig 1: TCM Power And Ground Circuit Wiring Diagram
G04014983Courtesy of SUZUKI OF AMERICA CORP.
