Underdrive Gear Assembly Components

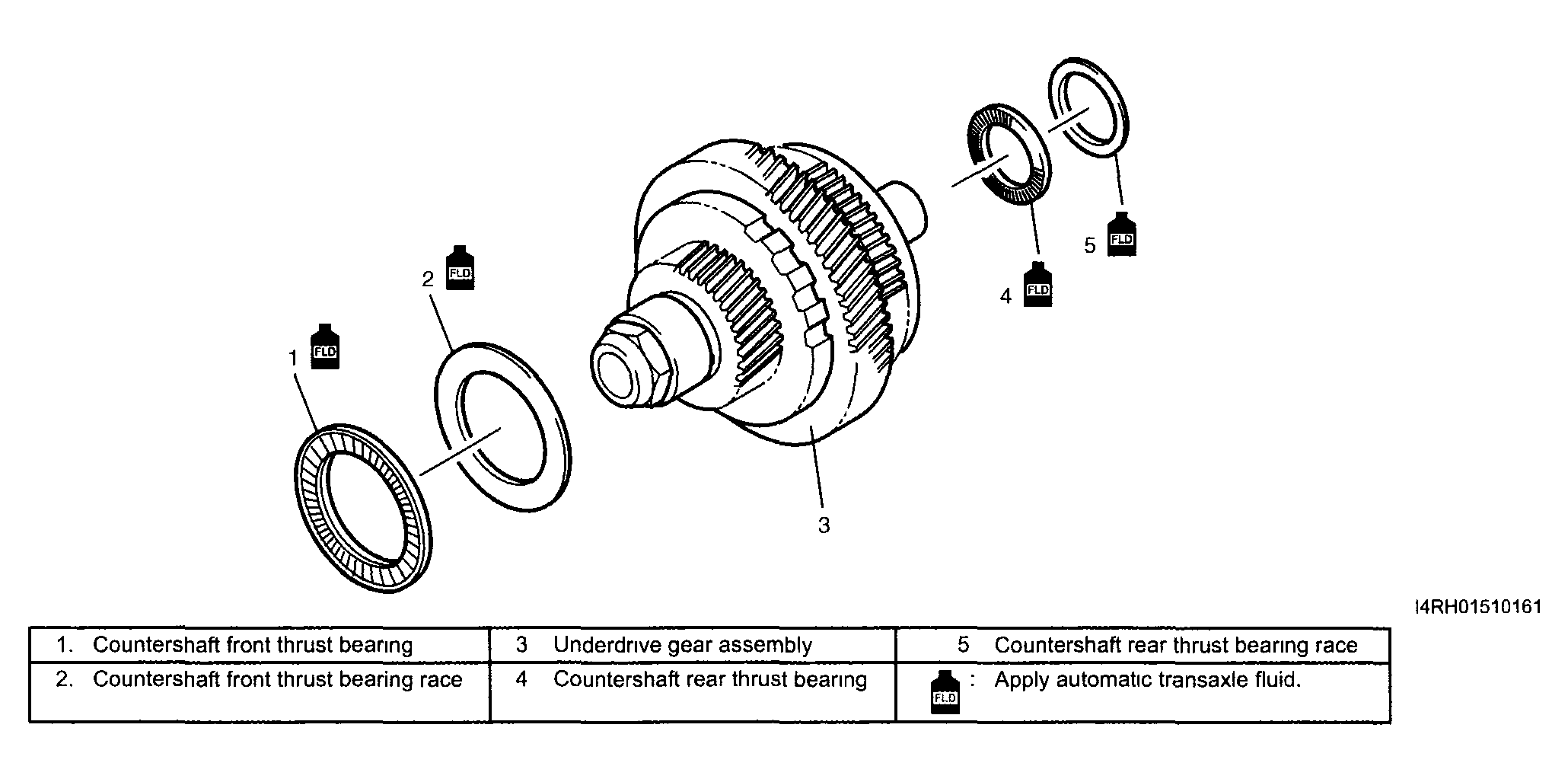

Fig 1: Exploded View Of Underdrive Gear Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
