Transmission Range Sensor (Shift Switch) Inspection and Adjustment: Inspection

1. Disconnect transmission range sensor connector (1).
2. Check that continuity exists at terminals as shown in the following figure by moving select lever. If check result is not as specified, adjust switch.

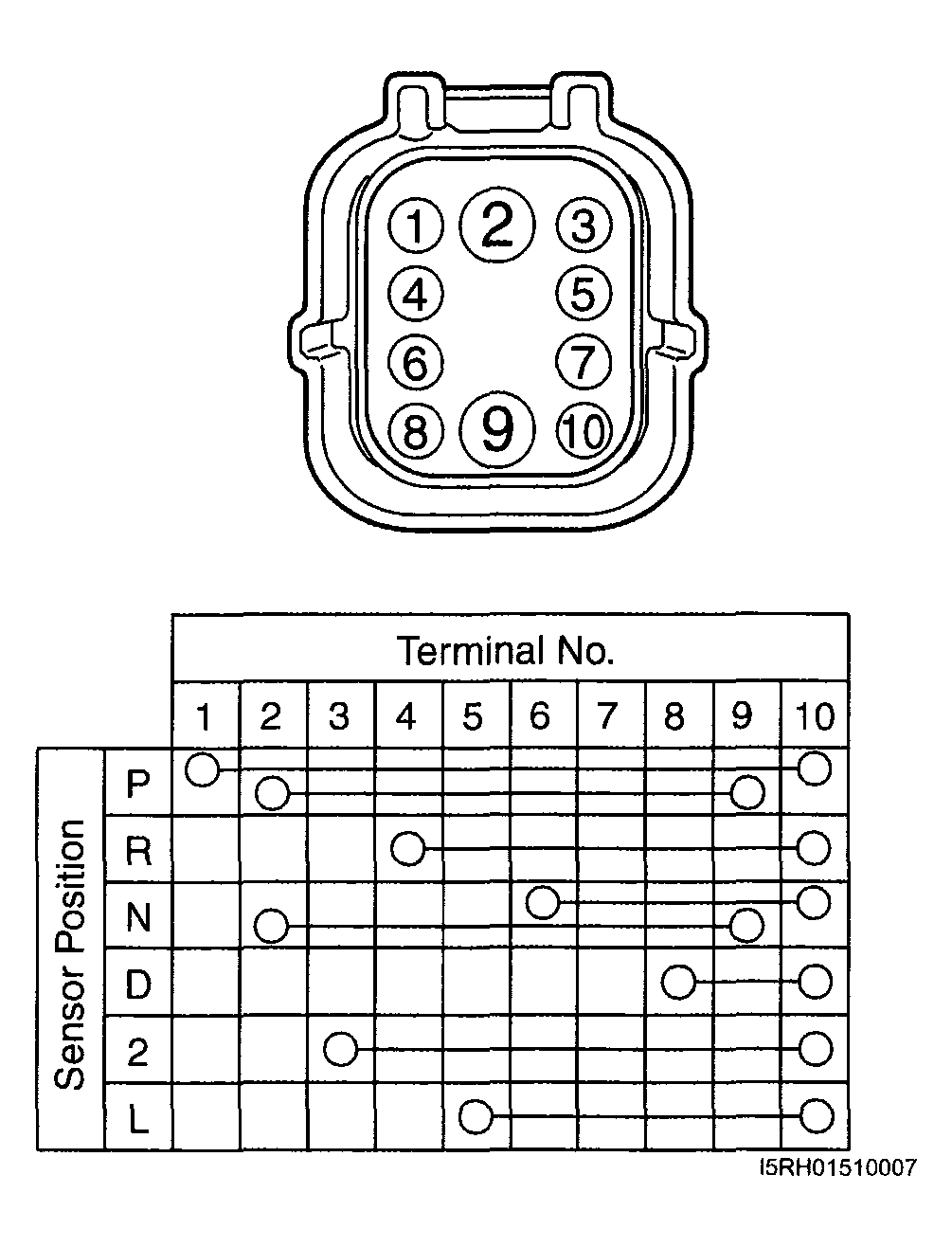

Fig 1: Identifying Transmission Range Sensor Connector Terminals (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
