Transmission Fluid Temperature Sensor Removal and Installation: Installation

Apply A/T fluid to new O-ring.
Install new O-ring to transmission fluid temperature sensor.
Install transmission fluid temperature sensor (1), and tighten A/T fluid temperature sensor to specified torque.
Tightening torque

Transmission fluid temperature sensor: 10 N.m (1.0 kg-m, 7.5 lb-ft)

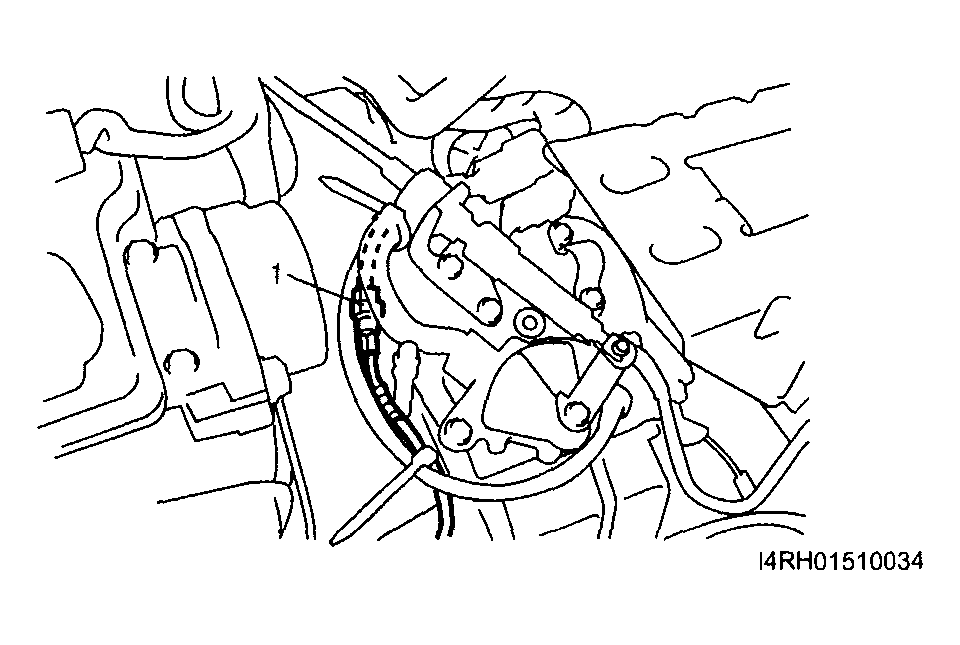

Fig 1: Installing Transmission Fluid Temperature Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Pour A/T fluid referring to "A/T FLUID CHANGE :".
Connect transmission fluid temperature sensor connector (1).

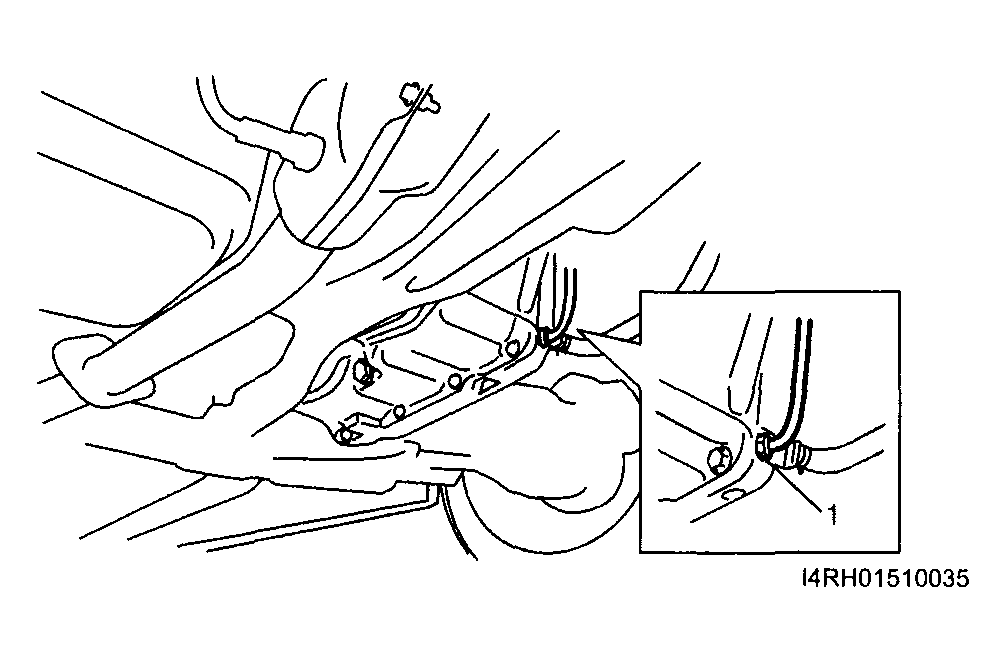

Fig 2: Connecting Transmission Fluid Temperature Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable.
Verify that there is no A/T fluid leakage.
