Output Shaft Speed Sensor Removal and Installation: Installation

Apply A/T fluid to new output shaft speed sensor O-ring.
Install output shaft speed sensor (1) to A/T case and tighten bolt to specified torque.
Tightening torque

Output shaft speed sensor bolt (a): 5.5 N-m (0.55 kg-m, 4.0 lb-ft)
Connect output shaft speed sensor connector (2) to output shaft speed sensor (1).

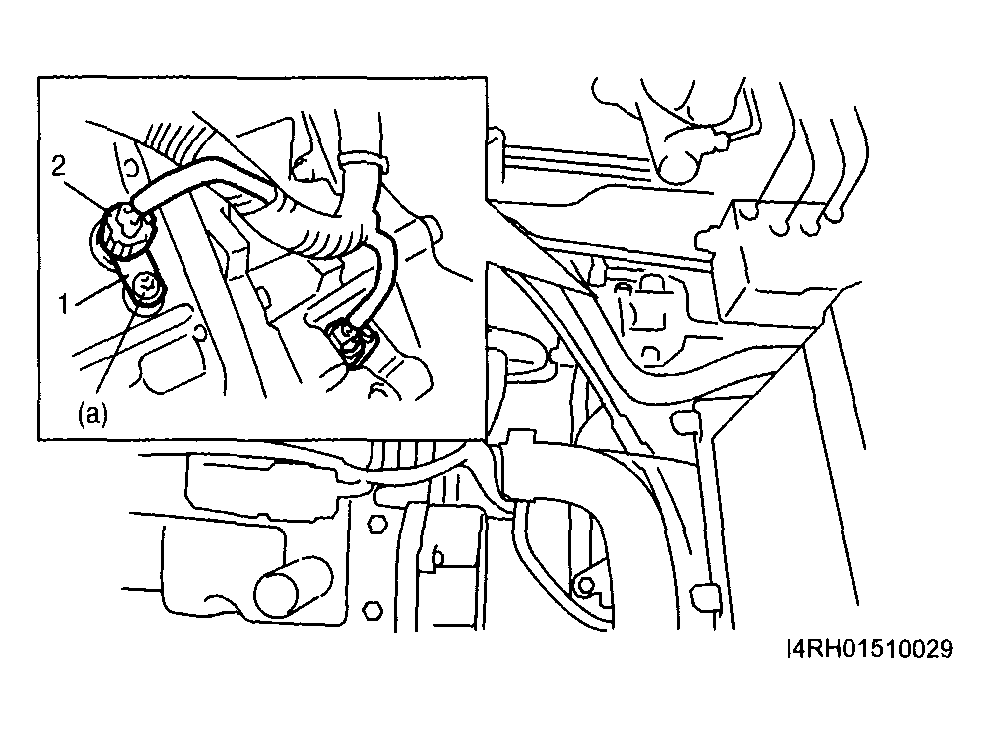

Fig 1: Connecting Output Shaft Speed Sensor Connector To Output Shaft Speed Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable to battery.
