One-Way No. 1 Clutch Operation Check

  1. Check that one-way No. 1 clutch (1) turns freely when turned counterclockwise [A] and locks when turned clockwise [B].

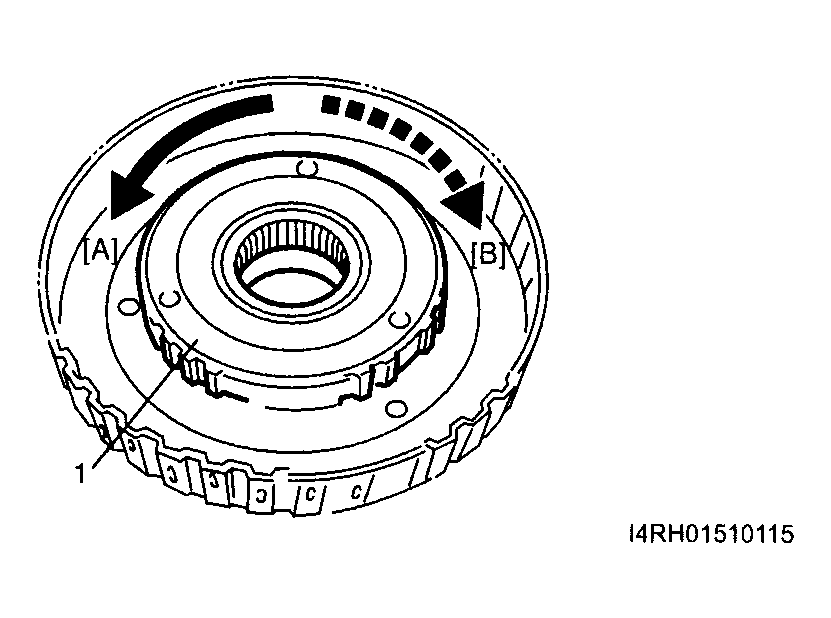

Fig 1: Checking One-Way No. 1 Clutch Operation
G04015116Courtesy of SUZUKI OF AMERICA CORP.
