One-Way No. 1 Clutch Disassembly and Reassembly: Reassembly

1. Install one-way No. 1 clutch (3) into one-way clutch outer race (4).
2. Fit washer (2) to inner race (1) with petroleum jelly so as not to fall washer off when assembling.
   Fig 1: Installing One-Way No. 1 Clutch Into One-Way Clutch Outer Race

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install rear thrust washer (1) onto one-way No. 1 clutch outer race (2).
   Fig 2: Installing Rear Thrust Washer Onto One-Way No. 1 Clutch Outer Race

   Courtesy of SUZUKI OF AMERICA CORP.

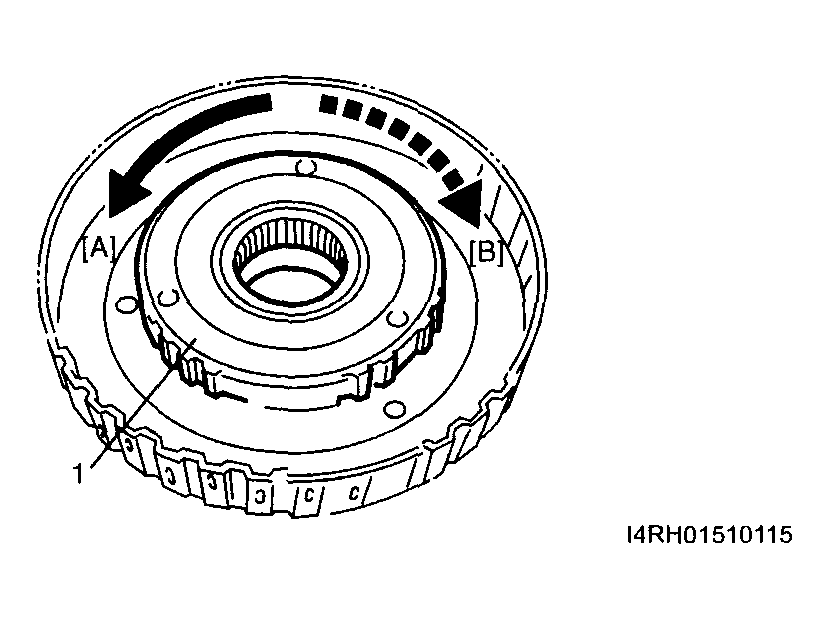

4. Check that one-way No. 1 clutch (1) turns freely when turned counterclockwise [A] and looks when turned clockwise [B].

Fig 3: Checking One-Way No. 1 Clutch Operation

Courtesy of SUZUKI OF AMERICA CORP.
