Input Shaft Speed Sensor Removal and Installation: Installation

Apply A/T fluid to new input shaft speed sensor CD-ring.
Install input shaft speed sensor (1) to A/T case and tighten bolt to specified torque.
Tightening torque

Input shaft speed sensor bolt (a): 5.5 N-m (0.55 kg-m, 4.0 lb-ft)
Connect input shaft speed sensor connector (2) to input shaft speed sensor (1).

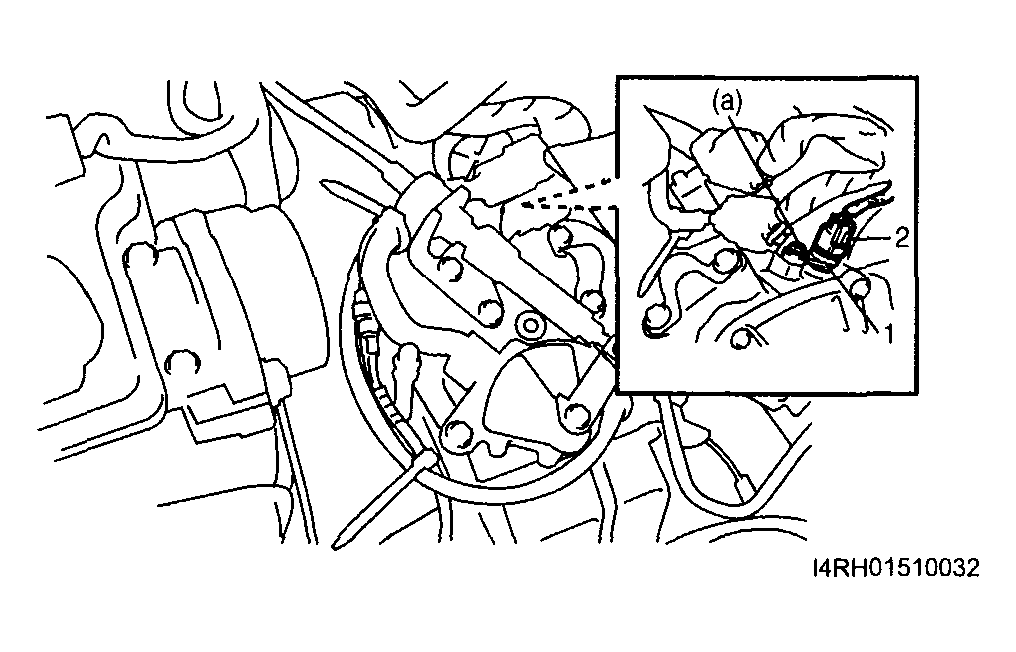

Fig 1: Connecting Input Shaft Speed Sensor Connector To Input Shaft Speed Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable to battery.
