Bearing outer race

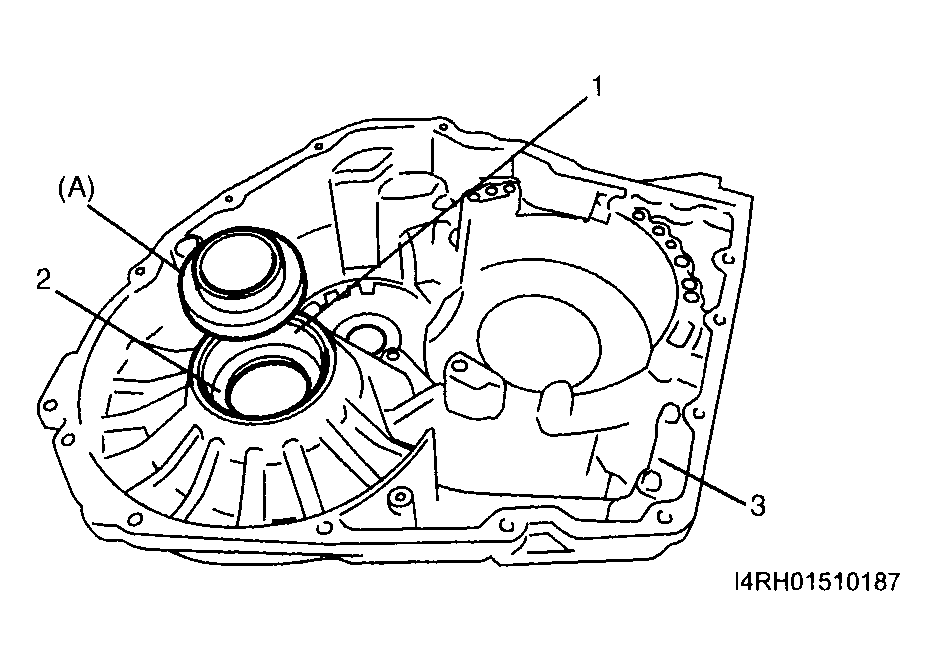

Install differential side right bearing race (1) and shim (2) to transaxle case (3), using special tool.
Special tool

(A): 09924-07710

Fig 1: Installing Differential Side Right Bearing Race
Courtesy of SUZUKI OF AMERICA CORP.

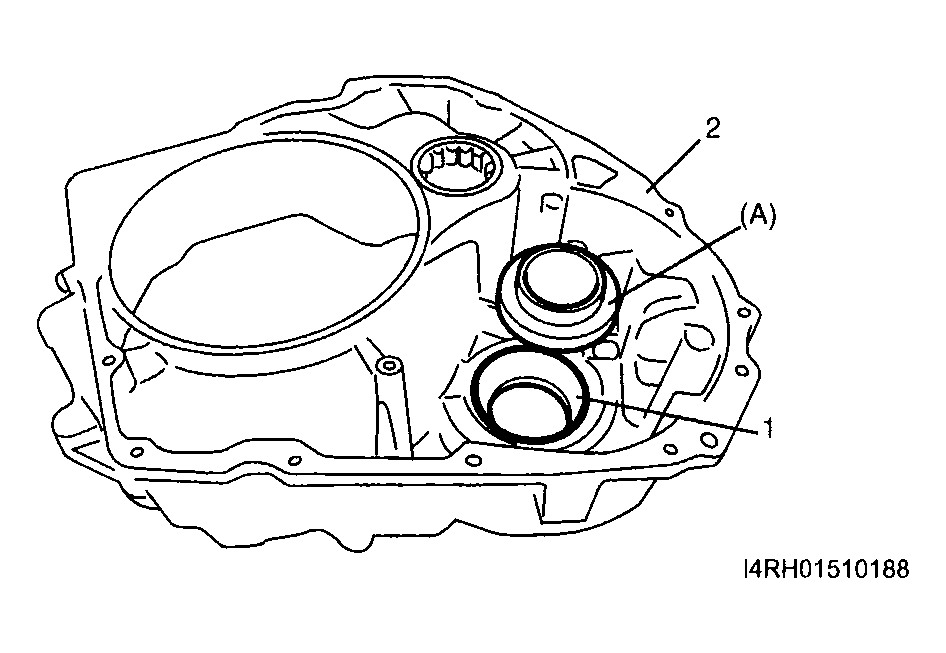

Install differential side left bearing race (1) to transaxle housing (2), using special tool.
Special tool

(A): 09924-07710

Fig 2: Installing Differential Side Left Bearing Race To Transaxle Housing

Courtesy of SUZUKI OF AMERICA CORP.
