DTC P2764 (No. 26): TCC Pressure Control Solenoid Control Circuit Low: Wiring Diagram

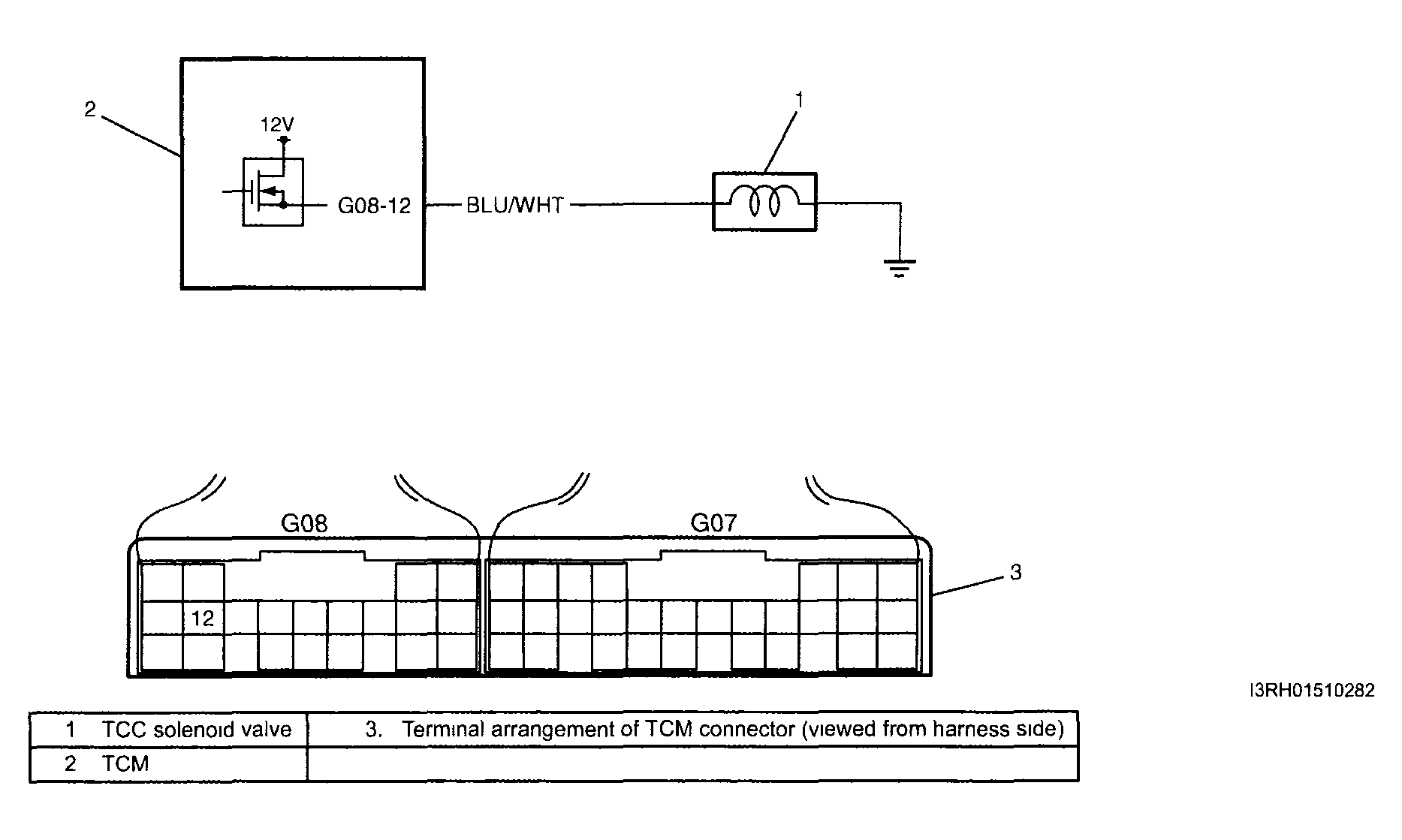

Fig 1: DTC P2764 - Wiring Diagram
G04014971Courtesy of SUZUKI OF AMERICA CORP.
