"O/D OFF" Lamp Circuit Check: Wiring Diagram

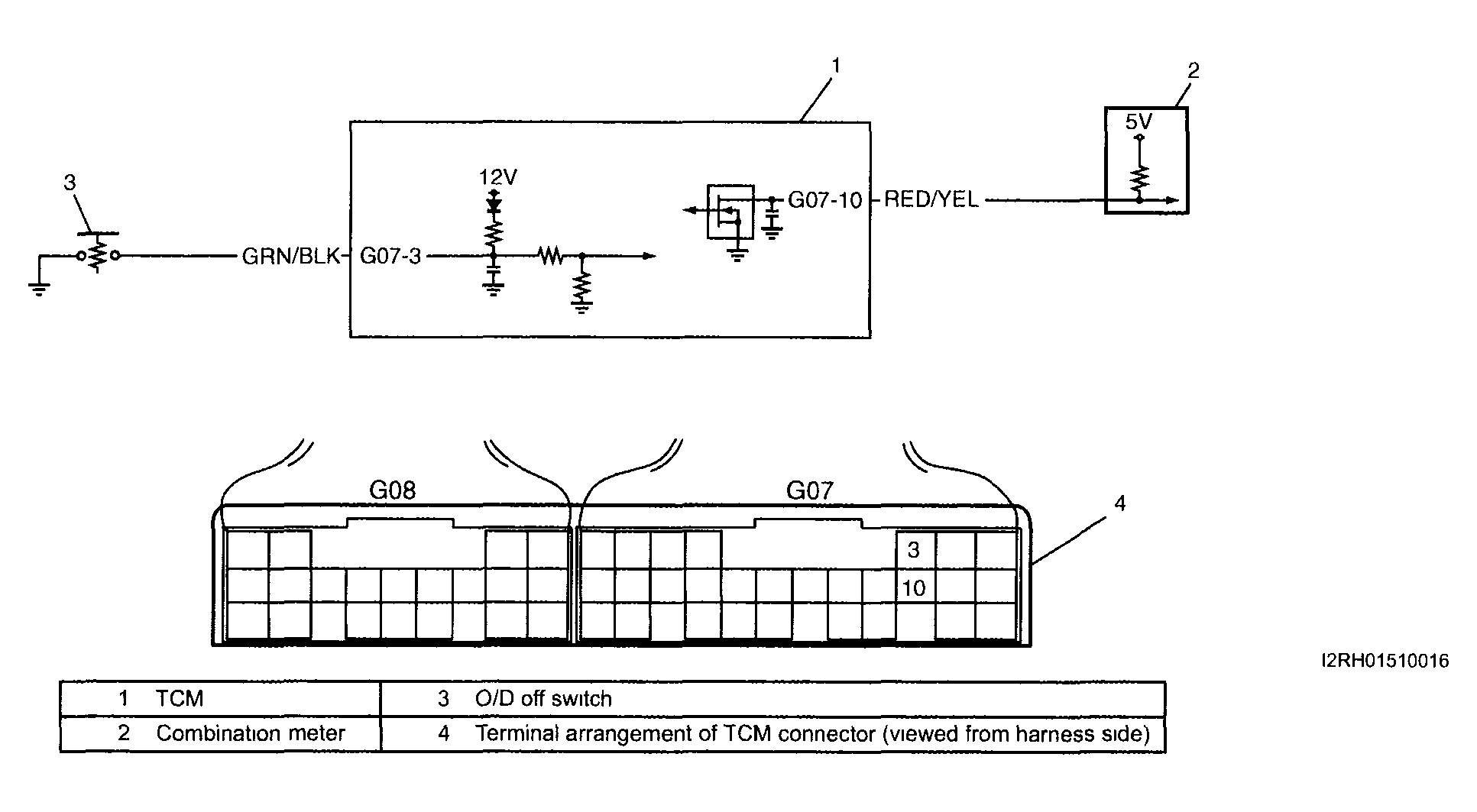

Fig 1: "O/D OFF" Lamp Circuit Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
