Rear Suspension Frame Components

2WD Model

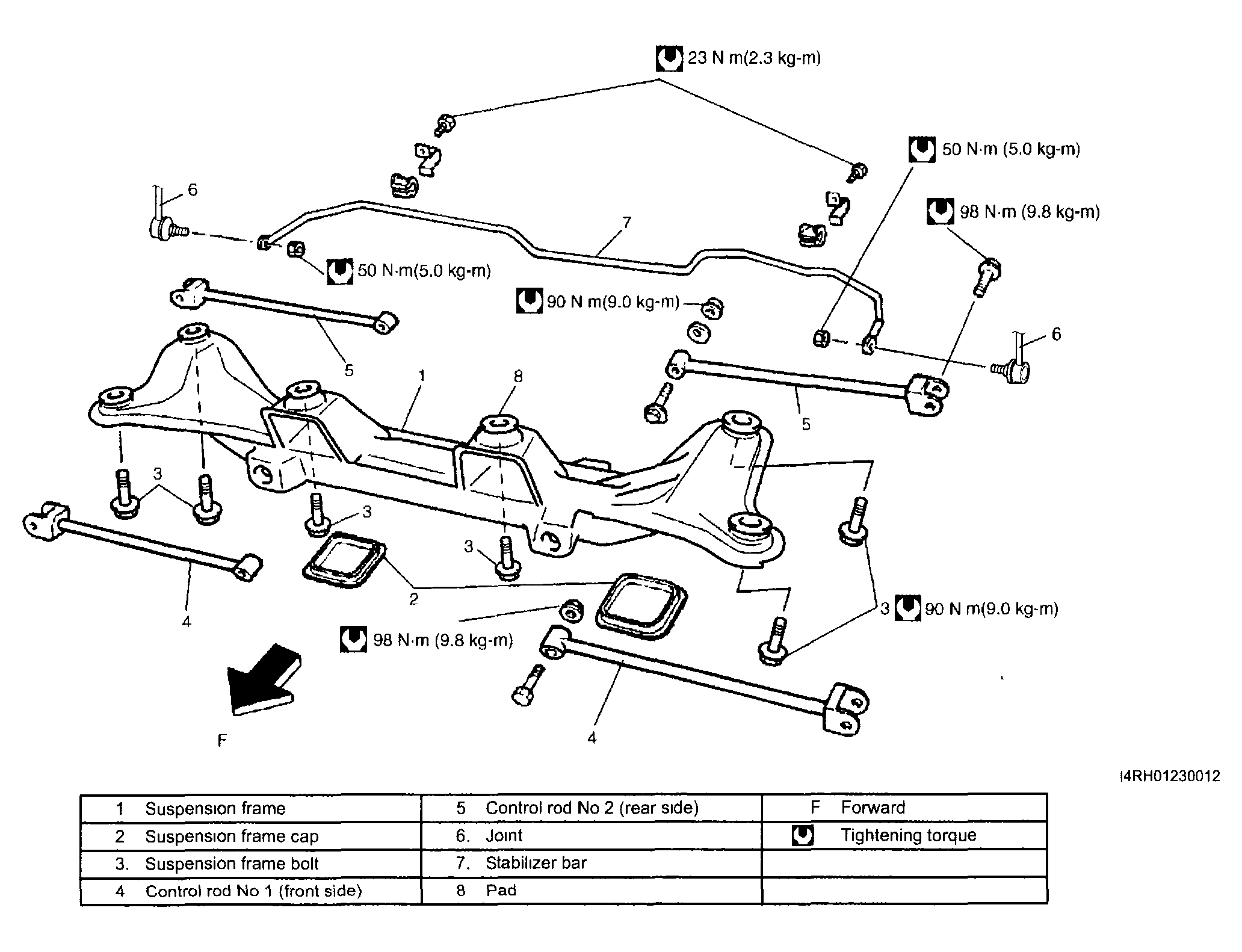

Fig 1: Identifying Rear Suspension Frame Components (2WD Model)
G04014464Courtesy of SUZUKI OF AMERICA CORP.

4WD Model

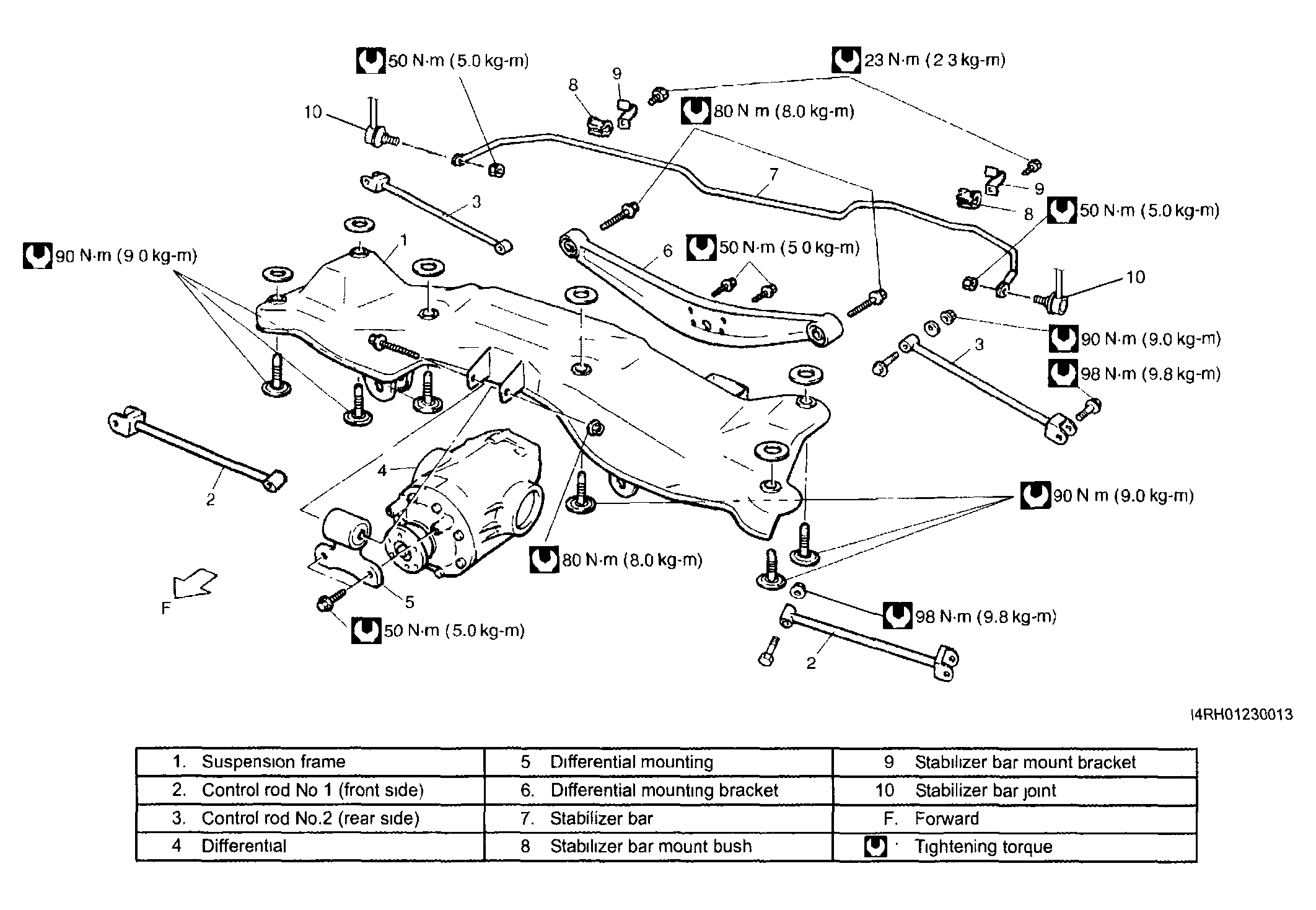

Fig 2: Identifying Rear Suspension Frame Components (4WD Model)
G04014465Courtesy of SUZUKI OF AMERICA CORP.
