SDM Cannot Communicate through the Serial Data Circuit: Wiring Diagram

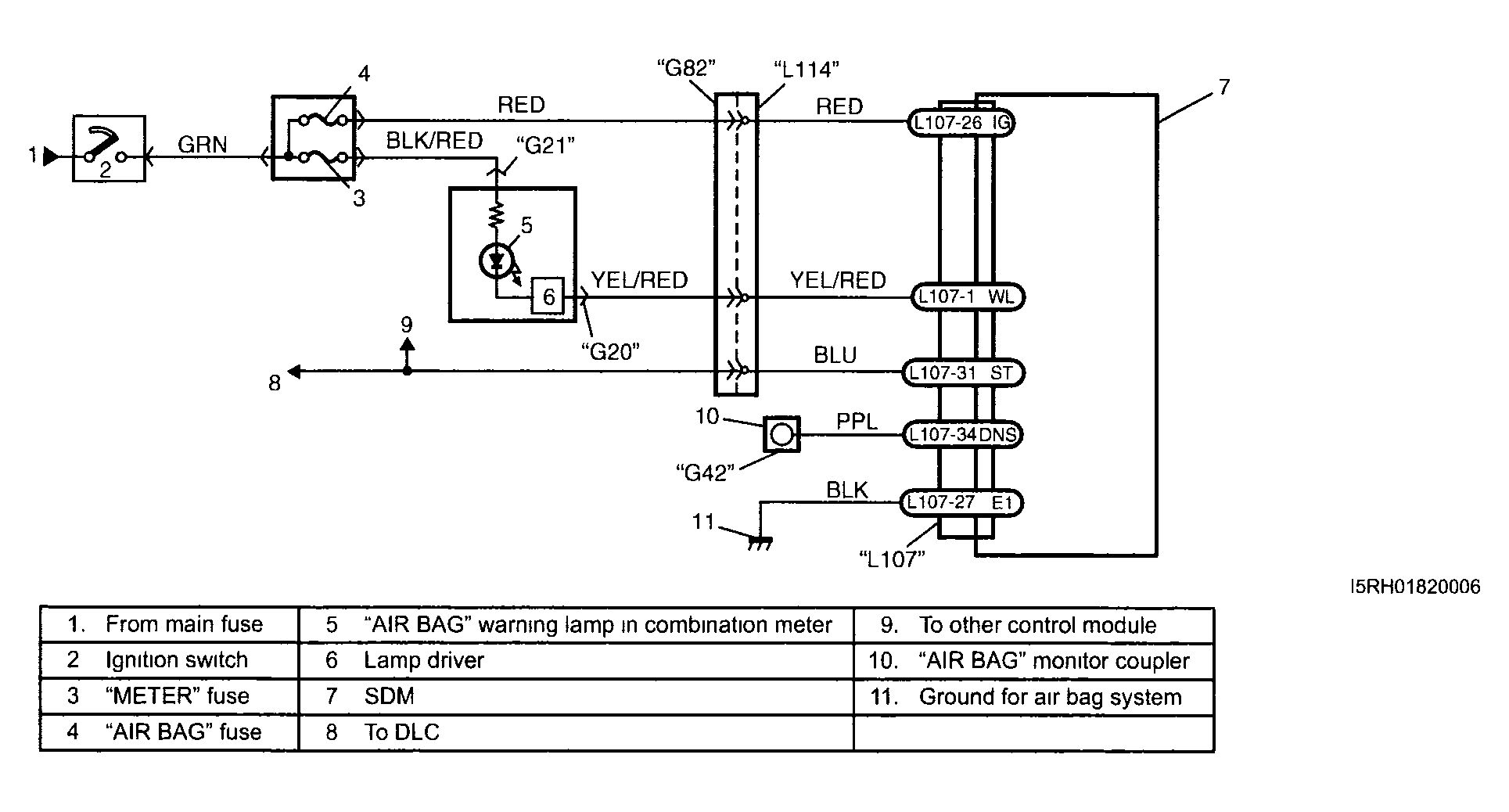

Fig 1: Wiring Diagram - SDM Cannot Communicate Through Serial Data Circuit

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION:

• Be sure to perform "AIR BAG DIAGNOSTIC SYSTEM CHECK : " before starting diagnosis according to flow.
• When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
• When a check for proper connection is required, Refer to "INSPECTION OF INTERMITTENT AND POOR CONNECTIONS : ".
• If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.
