Not Using SUZUKI Scan Tool

1. Check that malfunction indicator lamp ("AIR BAG" warning lamp) comes ON when ignition switch is turned to ON position.

   If it does not come "ON", proceed to ""AIR BAG" WARNING LAMP DOES NOT COME ON :".

2. Using service wire (4), ground diagnosis switch terminal (3) in monitor coupler (1).
3. Read DTC from flashing pattern of malfunction indicator lamp ("AIR BAG" warning lamp) referring to "DTC TABLE :". If lamp does not indicate DTC, proceed to ""AIR BAG" WARNING LAMP CANNOT INDICATE FLASHING PATTERN OF DTC :".
4. After completing the check, turn ignition switch to OFF position and disconnect service wire from "AIR BAG" monitor coupler.

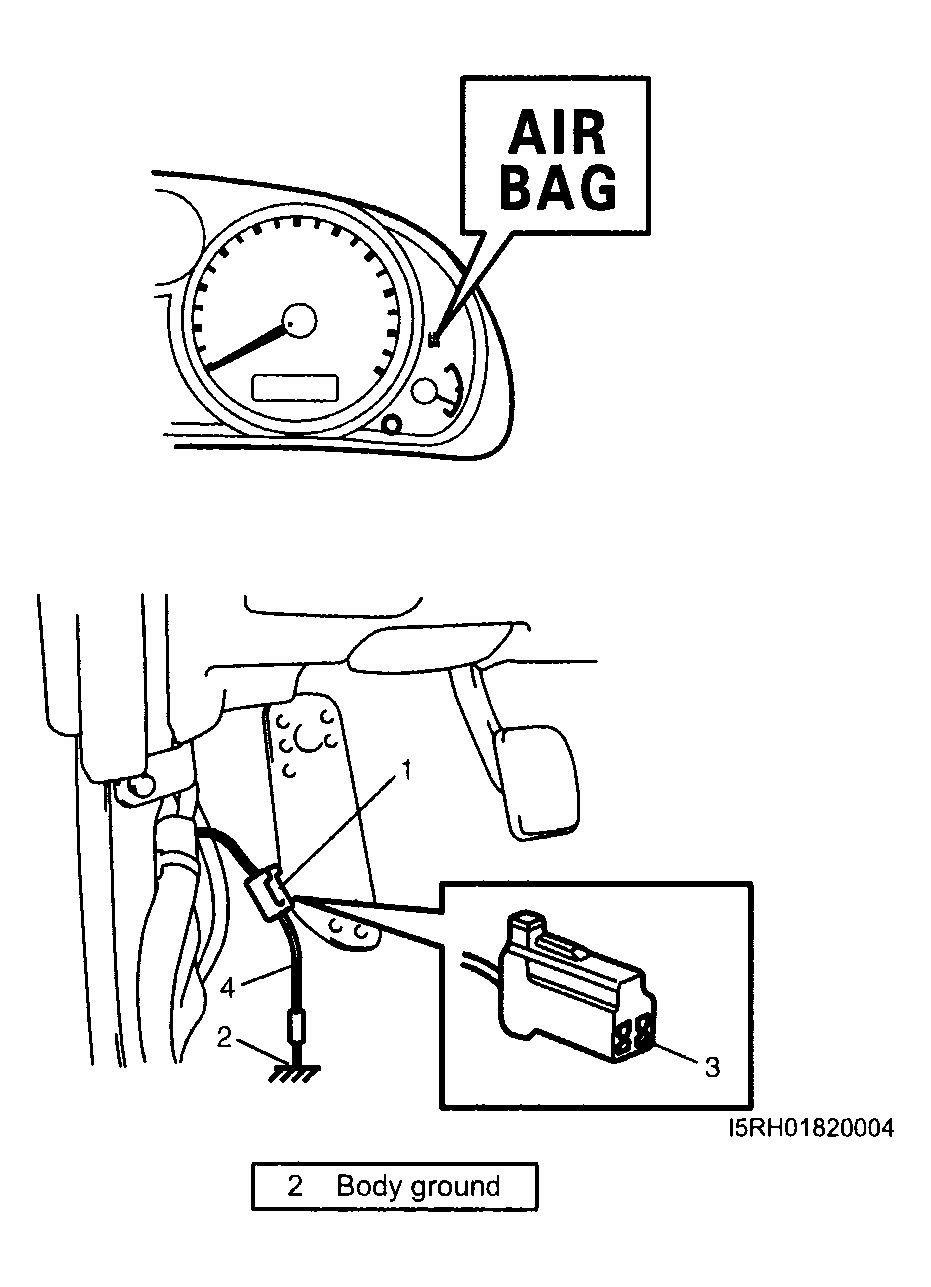

Fig 1: Identifying AIR BAG Warning Lamp

Courtesy of SUZUKI OF AMERICA CORP.

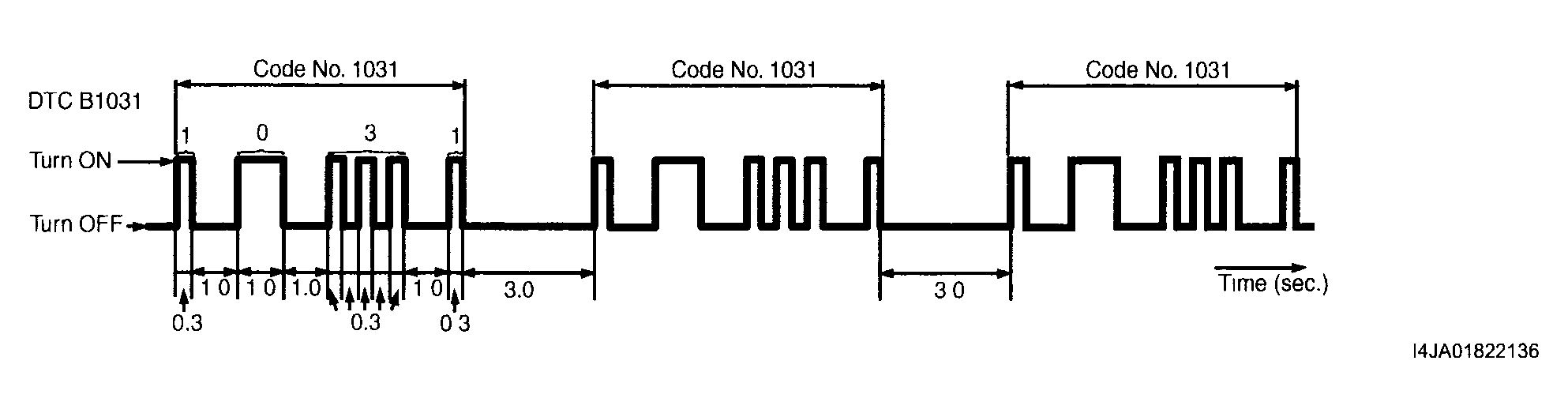

Example: When driver air bag initiator circuit resistance high (DTC B1031) is set

Fig 2: Identifying Flashing Pattern Of Malfunction Indicator Lamp

Courtesy of SUZUKI OF AMERICA CORP.
