Side Sensor Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Disable air bag system. Refer to "DISABLING AIR BAG SYSTEM :".
Remove center pillar lower trim and side sill scuff.
Turn up floor carpet at front seat side.
Remove side sensor bolt (1), and side sensor (2) from under body (3).

Fig 1: Removing Side Sensor Bolt And Side Sensor From Under Body
Courtesy of SUZUKI OF AMERICA CORP.

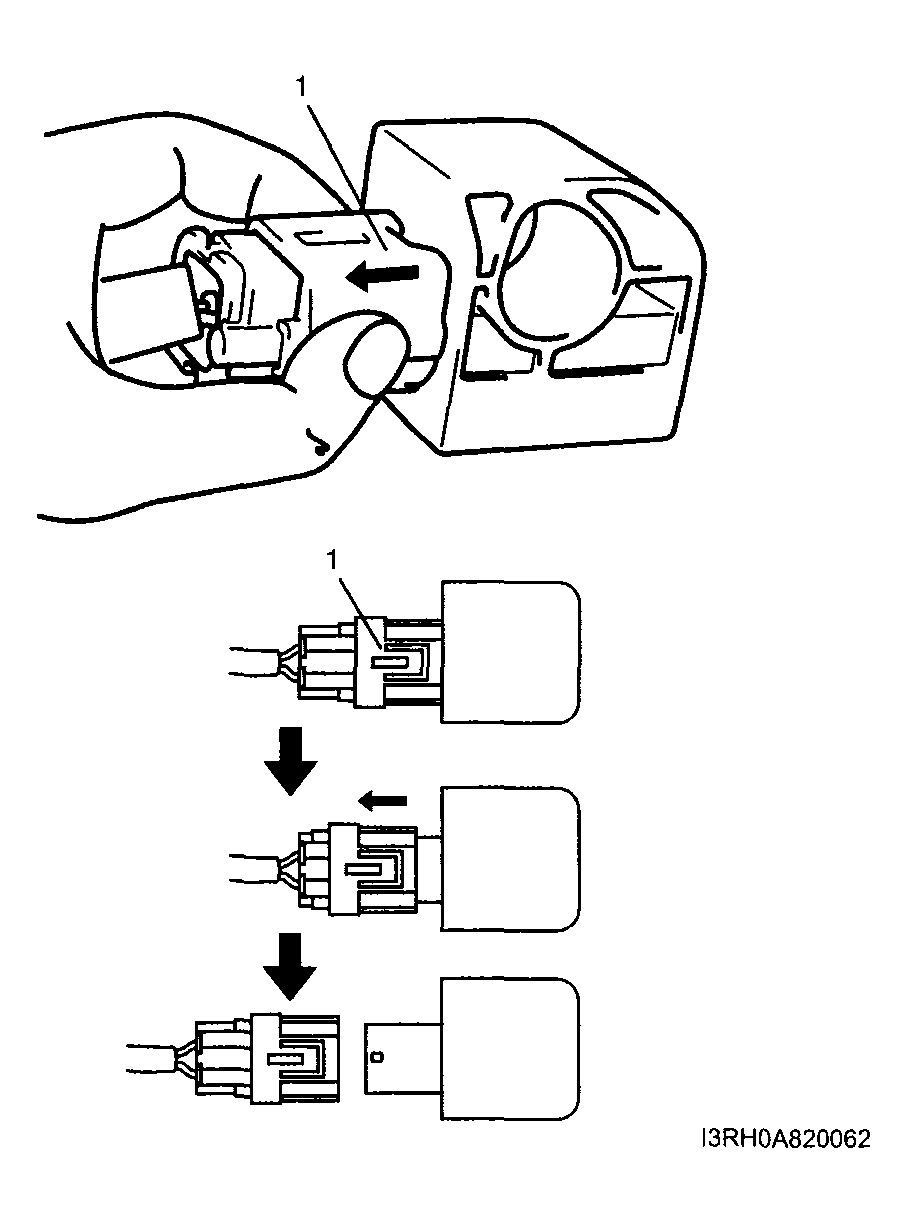

Disconnect side sensor connector sliding connector outer (1) as shown.

Fig 2: Disconnecting Side Sensor Connector Sliding Connector Outer
Courtesy of SUZUKI OF AMERICA CORP.
