Side Air Bag (Inflator) Module Removal and Installation: Removal

Disable air bag system. Refer to "DISABLING AIR BAG SYSTEM :".
Remove side air bag (inflator) module cover (1).
Remove side air bag (inflator) module (2) from seat back (3).

Fig 1: Removing Side Air Bag Module From Seat Back
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect side air bag (inflator) module connector as shown in the figure.
1. Unlock lock button.
2. With lock button unlocked, disconnect connector.

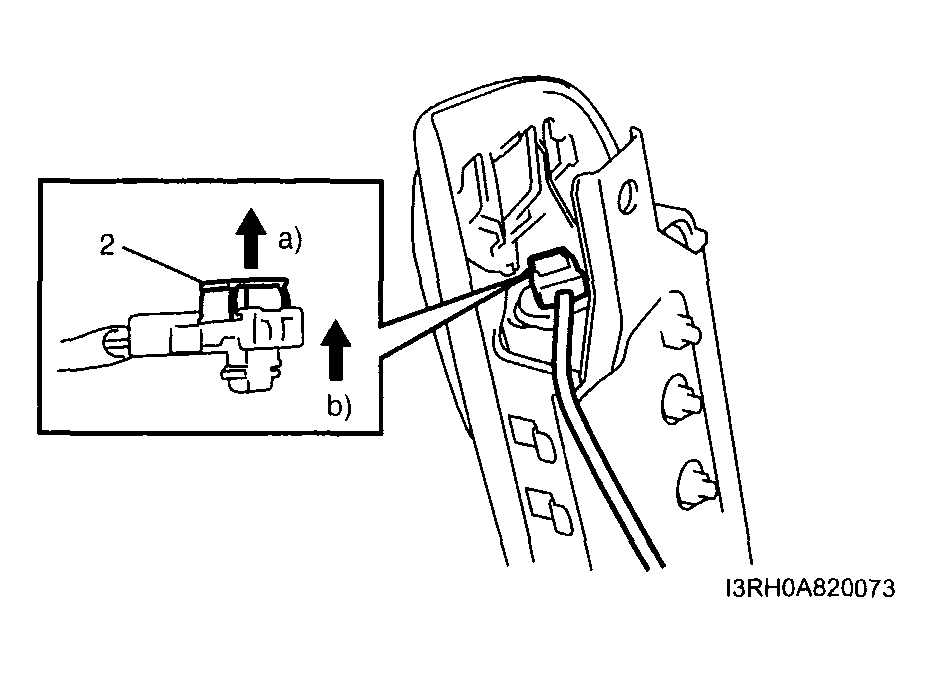

Fig 2: Disconnecting Side Air Bag Module Connector
Courtesy of SUZUKI OF AMERICA CORP.
WARNING:
- When carrying a live air bag (inflator) module, make sure the bag opening is pointed away from you.
  Never carry air bag (inflator) module by wires or connector on the side of the module. In case of an accidental deployment, the bag will then deploy with minimal chance of injury.
- As the live side air bag (inflator) module must be kept with its bag (trim cover) facing up while being stored or left standing. This is necessary so that a free space is provided to allow the air bag to expand in the unlikely event of accidental deployment.
- Observe "Precautions on Handling and Storage of Air Bag System Components: " for handling and storing it.
Otherwise, personal injury may result.
