Seat Position Sensor Removal and Installation: Removal

1. Disconnect negative cable at battery.
2. Disable air bag system referring to "DISABLING AIR BAG SYSTEM :".
3. Remove front seat referring to FRONT SEAT REMOVAL AND INSTALLATION .
4. Disconnect seat position sensor connector at seat harness.
5. Remove seat position sensor bolt (1) and seat position sensor (2) from seat adjuster.

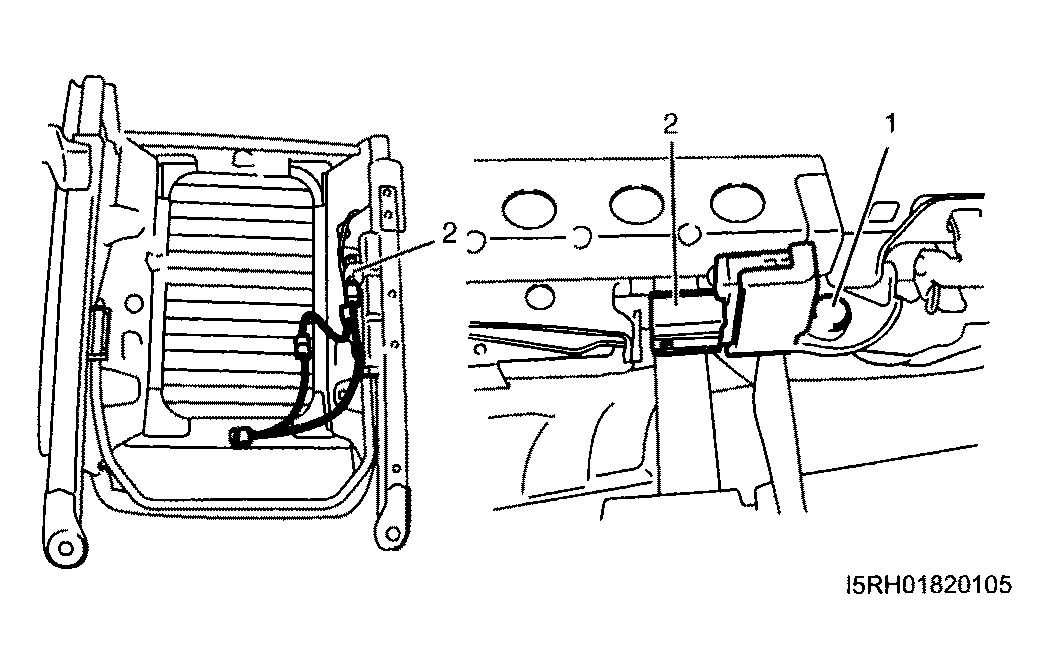

Fig 1: Removing Seat Position Sensor Bolt And Seat Position Sensor From Seat Adjuster

Courtesy of SUZUKI OF AMERICA CORP.
