SDM Removal and Installation: Installation

Check that none of the following faulty conditions exists.
- Bend, scratch, deformity in vehicle body where SDM is mounted.
- Foreign matter or rust on mating surface of vehicle body where SDM is mounted.
Install SDM (2) to vehicle.
CAUTION: Ensure that arrow on the SDM is pointing toward the front of the vehicle.
Tighten SDM bolts to specified torque.
Tightening torque

SDM bolt (a): 7 N.m (0.7 kg-m, 5.0 lb-ft)
Connect SDM connector (1) to SDM (2) securely.

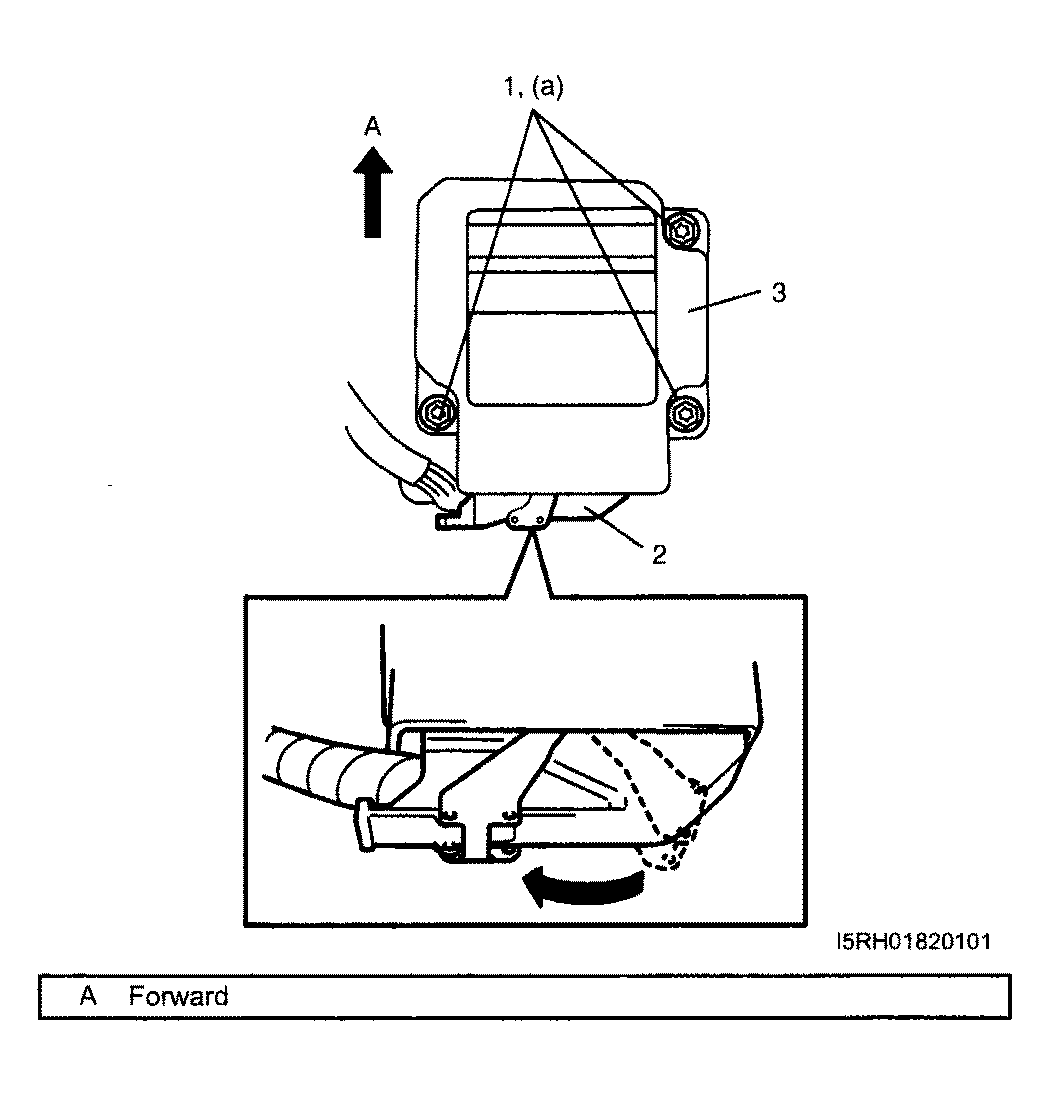

Fig 1: Connecting SDM Connector To SDM
Courtesy of SUZUKI OF AMERICA CORP.
Install center console box upper cover.
Enable air bag system referring to "ENABLING AIR BAG SYSTEM :".
Connect negative cable at battery.
