Passenger Air Bag (Inflator) Module Removal and Installation: Installation

Install passenger air bag (inflator) module to instrument panel.
CAUTION: Confirm claw (1) of passenger air bag (inflator) module hangs in instrument panel (2).

Fig 1: Installing Passenger Air Bag Module To Instrument Panel
Courtesy of SUZUKI OF AMERICA CORP.
Tighten passenger air bag (inflator) module attaching bolts (1) to specified torque and screws (2).
Tightening torque

Passenger air bag (inflator) module attaching bolt (a): 23 N.m (2.3 kg-m, 16.5 lb-ft)

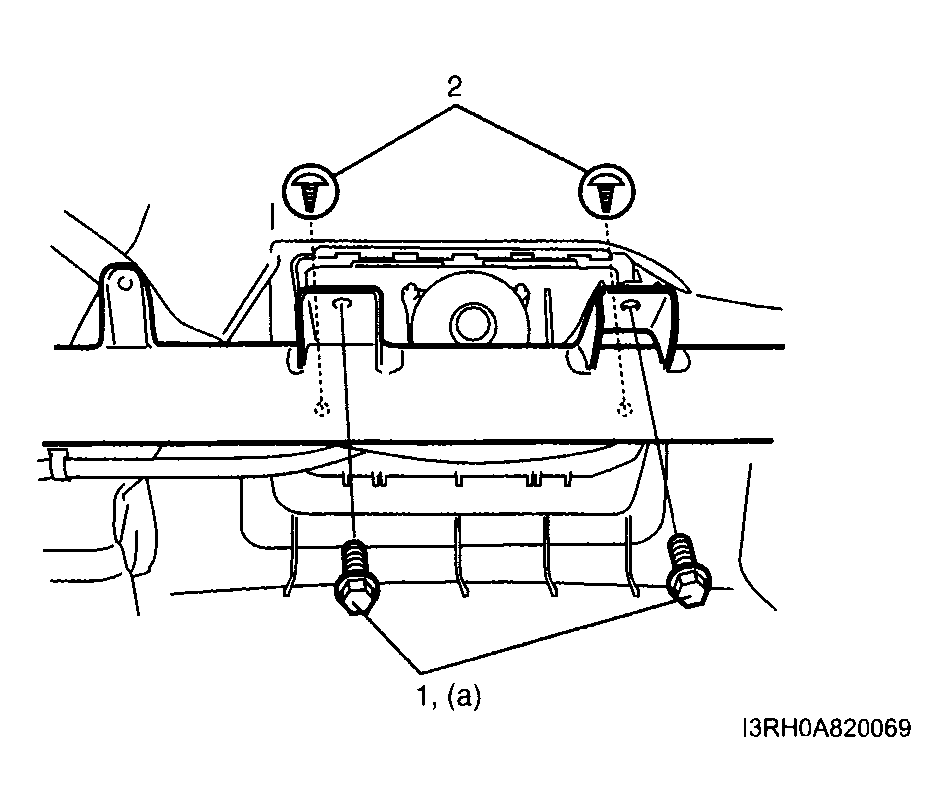

Fig 2: Tightening Passenger Air Bag Module Attaching Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Connect passenger air bag (inflator) module connectors (1) securely as shown in the figure.
1. Connect connector.
2. Lock connector with lock button (2).
Install blower unit and fresh air inlet duct referring to BLOWER UNIT REMOVAL AND INSTALLATION .
Enable air bag system. Refer to "ENABLING AIR BAG SYSTEM :".
