Driver Air Bag (Inflator) Module Removal and Installation: Removal

Disconnect negative cable at battery.
Disable air bag system. Refer to "DISABLING AIR BAG SYSTEM :".
Loosen driver air bag (inflator) module mounting bolts (1) till it turns freely, pull them out and fix them to bolt clamps.

Fig 1: Loosening Driver Air Bag Module Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove air bag (inflator) module from steering wheel.
Disconnect driver air bag (inflator) module connectors (1) of driver air bag (inflator) module and horn connector (2) as shown in the figure.
1. Unlock lock button (3).
2. With lock button unlocked, disconnect connectors.

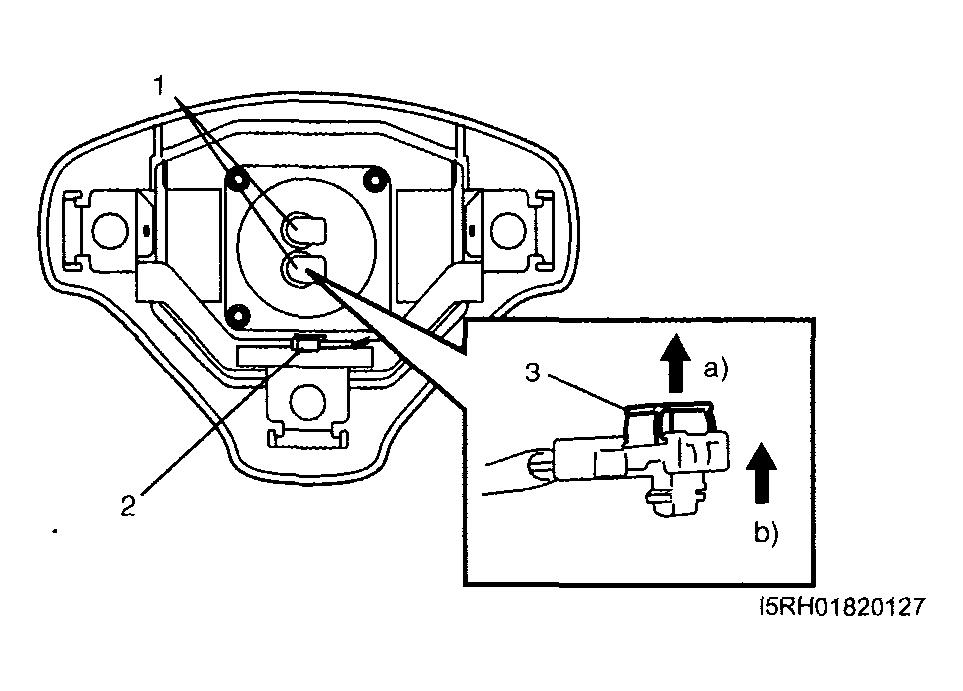

Fig 2: Disconnecting Driver Air Bag Module Connectors Of Driver Air Bag Module And Horn Connector
Courtesy of SUZUKI OF AMERICA CORP.

WARNING: Special care is necessary when handling and storing a live (undeployed) air bag (inflator) module. Observe "Precautions on Handling and Storage of Air Bag System Components: ". Otherwise, personal injury may result.
