Driver Air Bag (Inflator) Module Removal and Installation: Installation

Connect horn connector (4) securely.
Connect driver air bag (inflator) module connectors (1) (orange) and (2) (black) to driver air bag (inflator) module (3) securely as shown in the figure.
1. Connect connectors.
2. Lock connectors with lock button.

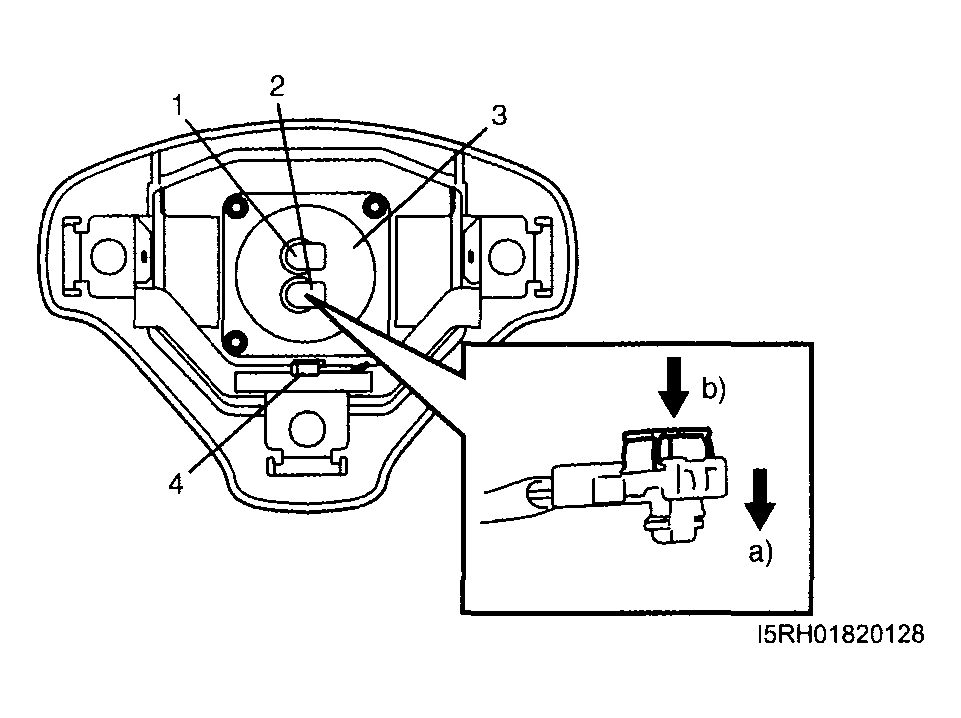

Fig 1: Connecting Driver Air Bag Module Connectors And To Driver Air Bag Module
Courtesy of SUZUKI OF AMERICA CORP.
Install driver air bag (inflator) module (1) to steering wheel (2), taking care so that no part of wire harness is caught between them.
Make sure that clearance between module (1) and steering wheel (2) is uniform all the way.
Tighten driver air bag (inflator) module mounting bolt (left side) (3) to specified torque first and then driver air bag (inflator) module mounting bolt (right side) (4) to specified torque.
Tightening torque

Driver air bag (inflator) module mounting bolt

(a): 9 N.m (0.9 kg-m, 6.5 lb-ft)

Fig 2: Installing Driver Air Bag Module To Steering Wheel
Courtesy of SUZUKI OF AMERICA CORP.
Enable air bag system. Refer to "ENABLING AIR BAG SYSTEM :".
Connect negative cable at battery.
