Service Manual Correction Of Alignment Specifications (TS_03_04076R2)
Publication date: 2006-04-07Reference number: TS_03_04076R2
SERVICE MANUAL CORRECTION OF ALIGNMENT SPECIFICATIONS
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 03 04076R2, Date of Issue:
April 07, 2006
| SUZUKI: | 2004~2005 AERIO (RH423) |
| SECTION: | Suspension-Wheels and Tires |
REVISION
Rear toe specifications have been updated.
CONDITION
The alignment specifications have changed.
CAUSE
N/A
CORRECTION

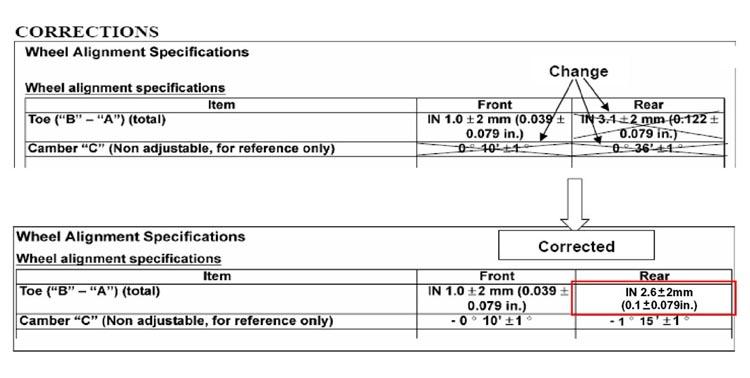

Please update your Service Manual according to the attached specifications.
AFFECTED SERVICE MANUALS
AFFECTED SERVICE MANUALS DESCRIPTION
| Name of Manuals | Part Numbers | Corresponding Pages |
|---|---|---|
| 2004 MY AERIO (RH423) Service Manual | 99500-54G20-33E | Page 2A-3 |
| 2005 MY AERIO (RH423) Service Manual | 99500S54G30-33E | Page 2A-3 |
NOTE:
This update will reflect in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been corrected.
