Service Manual Correction Of Alignment Specifications (TS 03 04145)

Publication date: 2005-04-14
Reference number: TS 03 04145

SERVICE MANUAL CORRECTION OF ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 03 04145, Date of Issue: April 14, 2005

SUZUKI:	2004-2005 AERIO (RH423)
SECTION:	Suspension-Wheels and Tires

CONDITION:

The alignment specifications have changed.

CAUSE:

N/A

CORRECTION:

Please update your Service Manual according to the attached specifications.

AFFECTED SERVICE MANUALS

Name of Manuals	Part Numbers	Corresponding Pages
2004 MY AERIO (RH423) Service Manual	99500-54G20-33E	Page 2A-3
2005 MY AERIO (RH423) Service Manual	99500S54G30-33E	Page 2A-3

NOTE: This update will reflect in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been corrected.

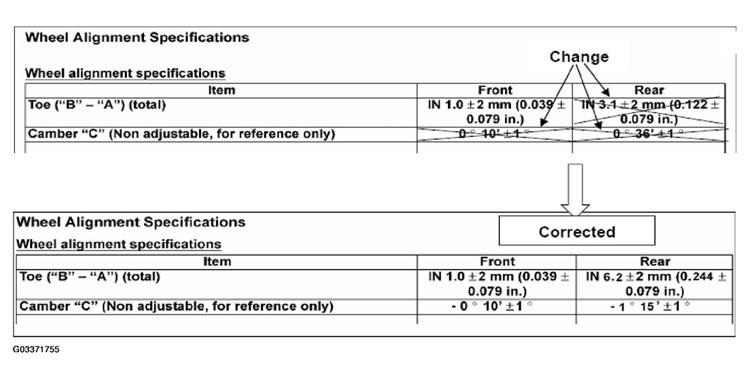

Fig 1: Identifying Corrections
