Modification Of Main Bearing Oil Clearance And The Bearing Selection Procedure (TS 04 05175)

Publication date: 2005-05-17
Reference number: TS 04 05175

MODIFICATION OF MAIN BEARING OIL CLEARANCE AND THE BEARING SELECTION PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 04 05175, Date of Issue: May 17, 2005

SUZUKI:	2002-2005 AERIO (RH420/RH423)
SECTION:	Engine

CONDITION:

Oil clearance of the main bearings has been modified.

CAUSE:

N/A

CORRECTION:

The crankshaft main bearing oil clearance for the J20 and J23 engines has been modified as well as the main bearing selection procedure. Please update your service manual according to the following specifications and the four attached Service Manual pages.

OIL CLEARANCE SPECIFICATIONS

The oil clearance of the main bearing has been changed to the following specifications:

OIL CLEARANCE SPECIFICATIONS

Engine Type	Model	Oil Clearance Specification
J20	RH420	STD: 0.026~0.044 mm (0.0011~0.0017 in.): LIMIT: 0.057 mm (0.0022 in.)
J23	RH423	STD: 0.020~0.038 mm (0.0008~0.0015 in.): LIMIT: 0.051 mm (0.0020 in.)

CRANKSHAFT JOURNALS

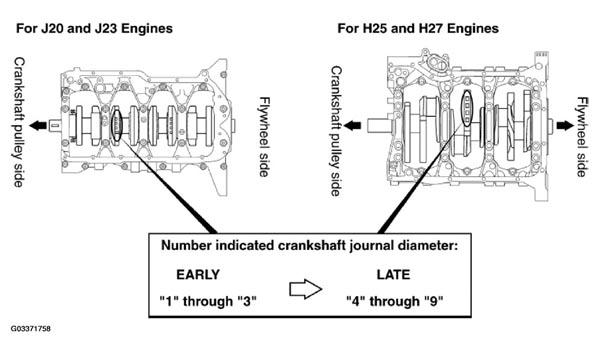

The number that indicates the crankshaft journal diameter has been changed from three stamped numbers ("1" through "3") to six stamped numbers ("4" through "9") as shown in the figure below.

Fig 1: Identifying Crankshaft Journal Diameter

CRANKSHAFT MAIN BEARING

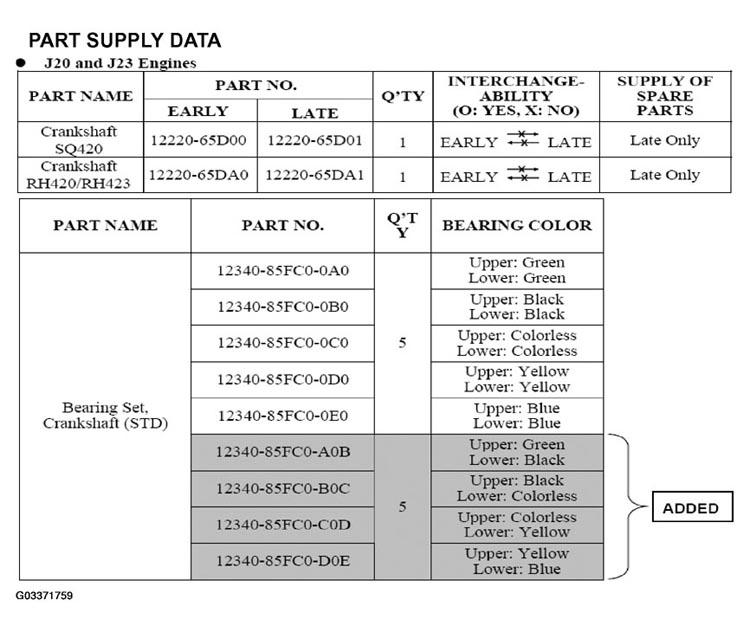

According to the change in oil clearance, new combinations of the crankshaft main bearings have been added as described in "PART SUPPLY DATA" below.

NOTE: The late crankshaft is usable instead of the early crankshaft if the main bearings are selected according to the procedure in the attached page.

Fig 2: Identifying Part Supply Data

SERVICE MANUAL UPDATE

AFFECTED SERVICE MANUALS

Manual Name	Model Year	Part Number	Corresponding Section
Aerio (RH420) Service Manual	2002	99500#54G0#-33E	1D Engine Mechanical (J20 Engine)
Aerio (RH420) Service Manual	2003	99500#54G1#-33E	1D Engine Mechanical (J20 Engine)
Aerio (RH423) Service Manual	2004	99500#54G2#-33E	1D Engine Mechanical (J23 Engine)
Aerio (RH423) Service Manual	2005	99500#54G3#-33E	1D Engine Mechanical (J23 Engine)

NOTE: This update will reflect in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been corrected.

Please attach the following additional Service Manual pages into the appropriate Service Manual section.

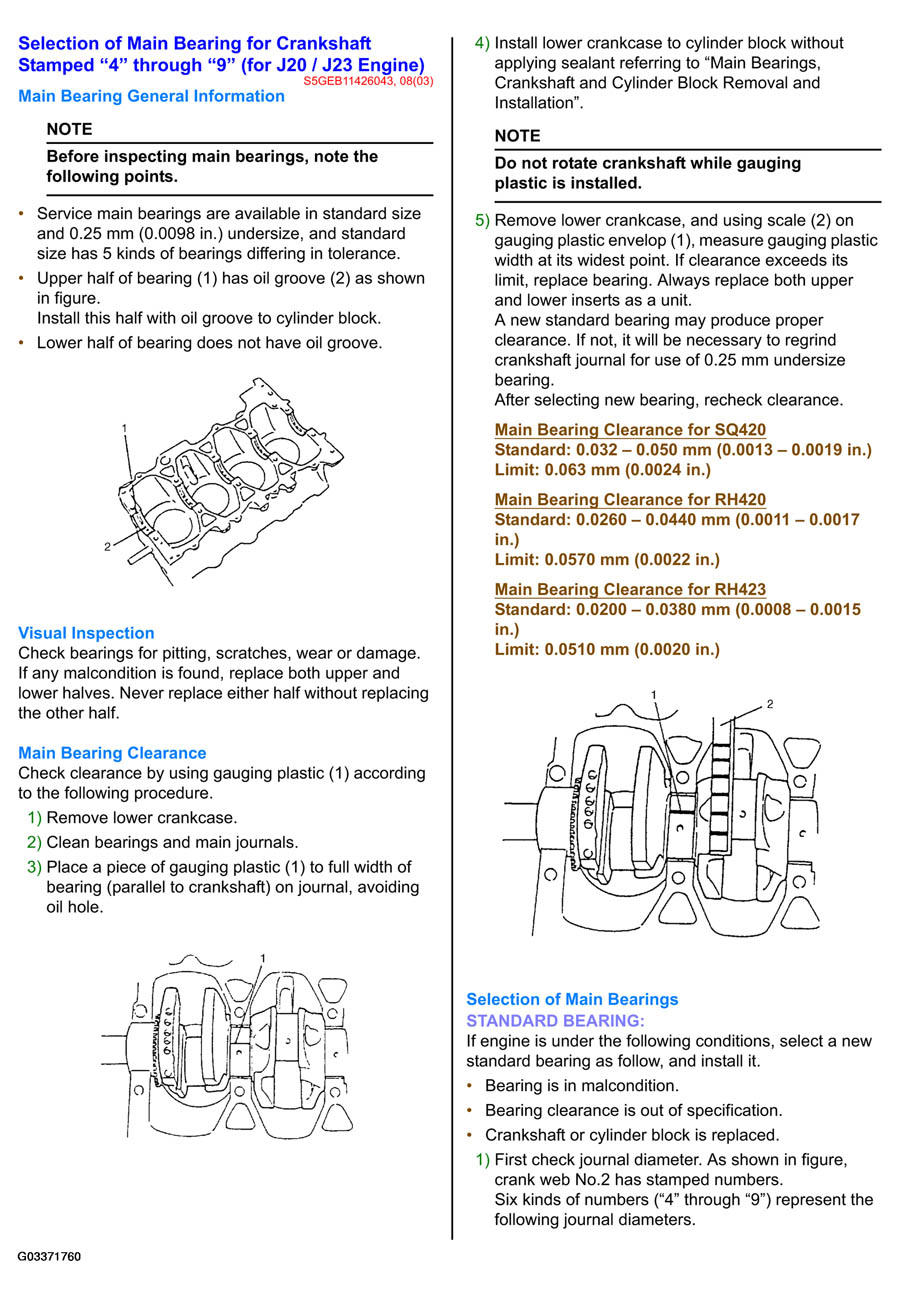

Fig 3: Service Manual Update (1 Of 4)

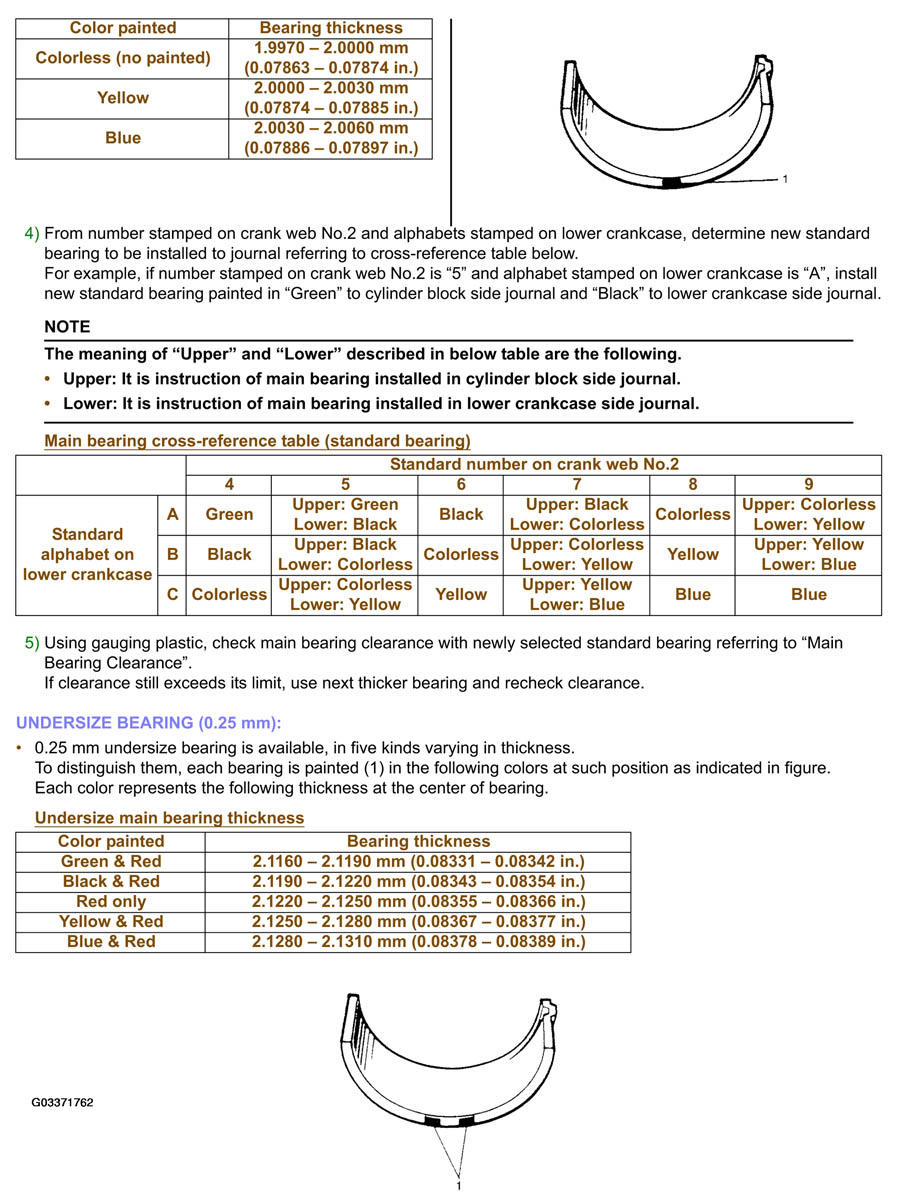

Fig 4: Service Manual Update (2 Of 4)

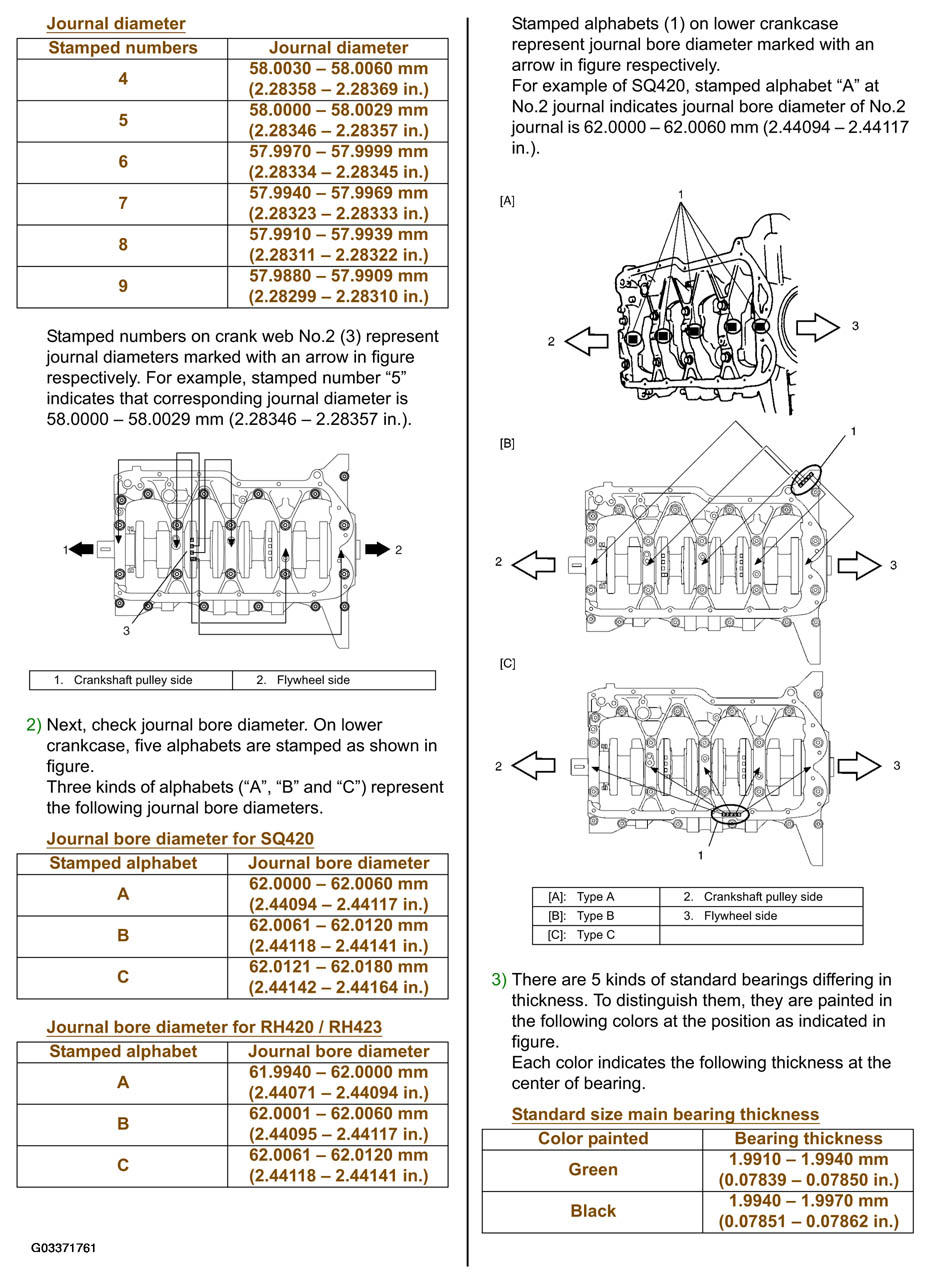

Fig 5: Service Manual Update (3 Of 4)

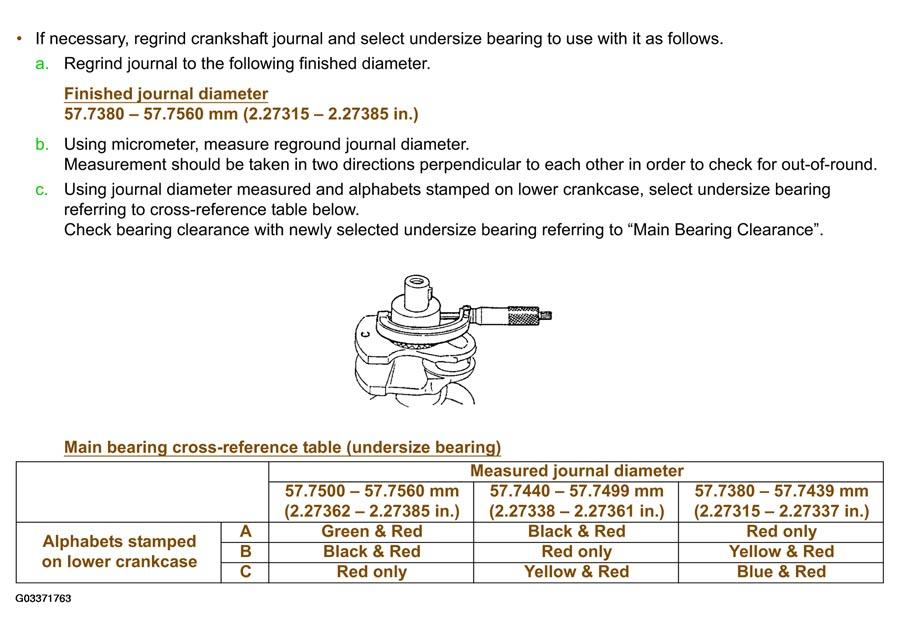

Fig 6: Service Manual Update (4 Of 4)
