HVAC Control Module Removal and Installation: Removal

1. Disconnect negative (-) cable at battery.
2. Gently remove instrument panel center garnish trims (1) from instrument panel.
   NOTE: Be careful not to damage instrument panel center garnish trims.

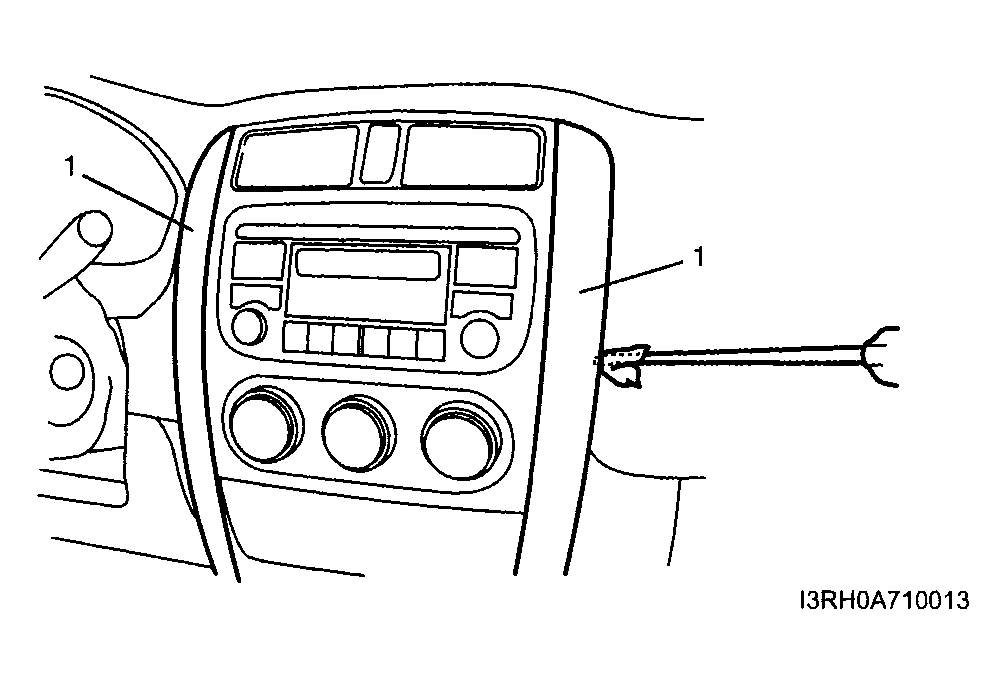

   Fig 1: Removing Instrument Panel Center Garnish Trims

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove screws (1).
4. Tilt instrument panel center garnish (2) and pull it through instrument panel.

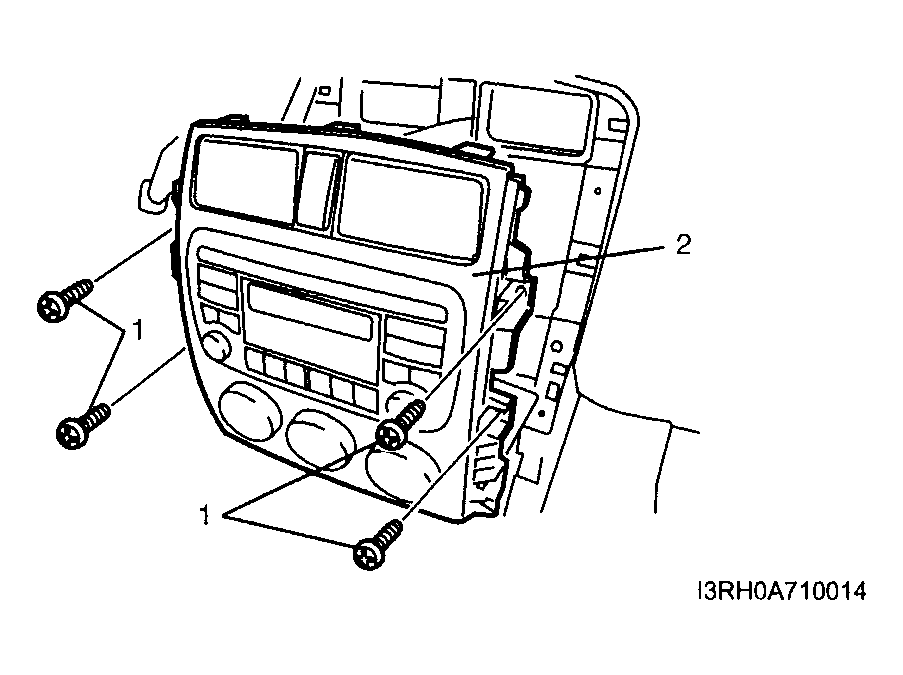

   Fig 2: Removing Screws

   Courtesy of SUZUKI OF AMERICA CORP.
5. Disconnect electrical connectors from HVAC control module, audio system and hazard switch.
6. Remove instrument panel center garnish.
7. Remove audio system (1) from instrument panel center garnish.
8. Remove screws and HVAC control module (2) from instrument panel center garnish.

Fig 3: Removing Audio System From Instrument Panel Center Garnish

Courtesy of SUZUKI OF AMERICA CORP.
