Air Intake Control Actuator Inspection

Check air intake control actuator as follows:

1. Using service wire, connect battery positive terminal to "a" terminal and battery negative terminal to terminal "b". And, check if air intake selector link operates smoothly and it stops at fresh position (1).
2. Using service wire, connect battery positive terminal to "a" terminal and battery negative terminal to terminal "c". And, check if air intake selector link operates smoothly and it stops at recirculation position (2).

If malfunction is found, replace it with new one.

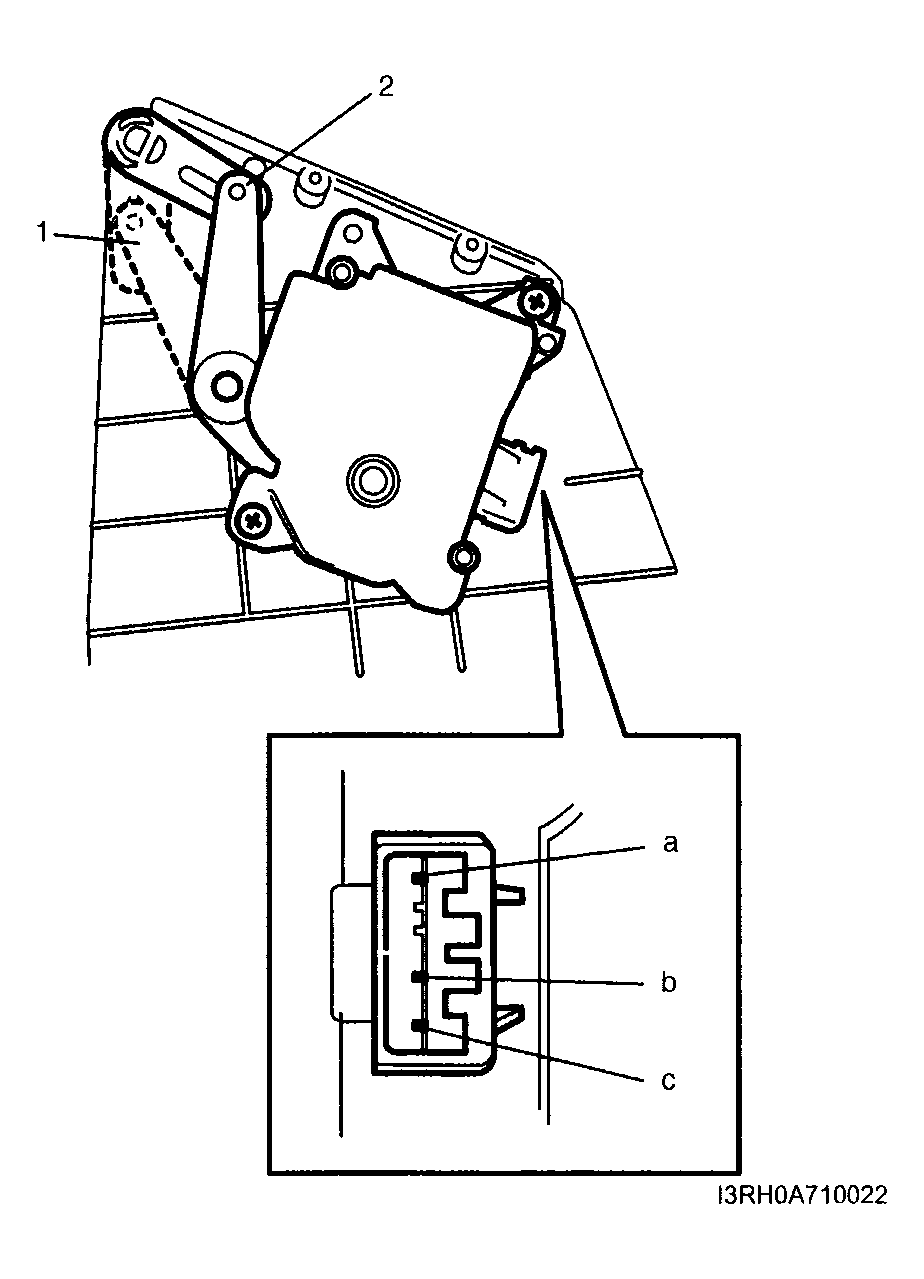

Fig 1: Checking Air Intake Control Actuator

Courtesy of SUZUKI OF AMERICA CORP.
