PCV Valve Removal and Installation: Installation

Apply sealant to thread part of PCV valve (1).
"A": Sealant 99000-31250
Install PCV valve (1) to cylinder head cover.
Tightening torque

PCV valve (a): 27 N.m (2.7 kg-m, 19.5 lb-ft)
Connect PCV hose (2) to PCV valve (1).

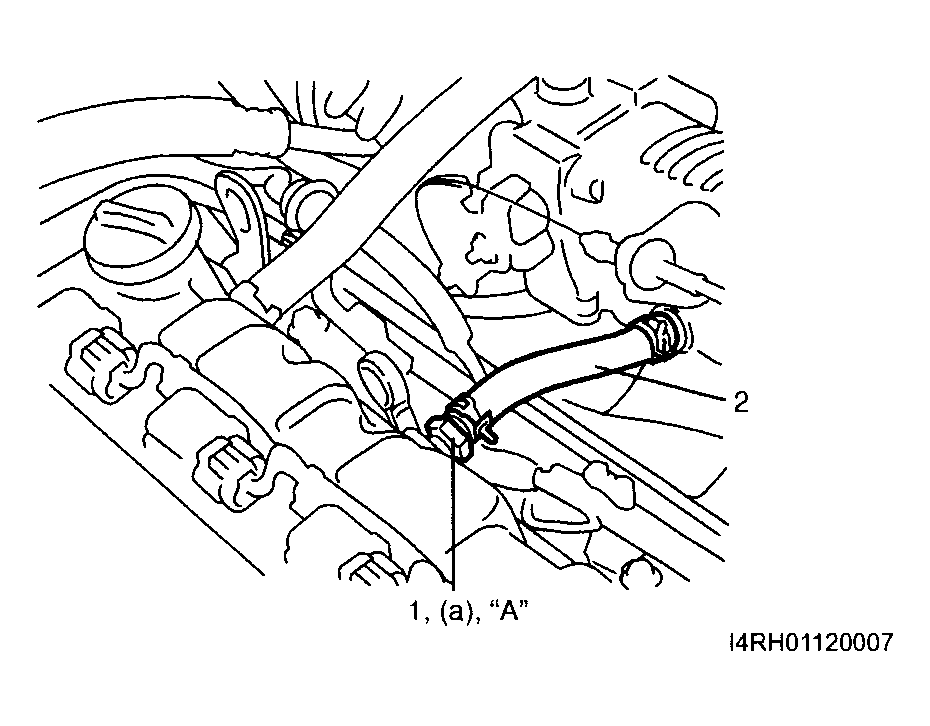

Fig 1: Installing PCV Valve To Cylinder Head Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install engine cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
