DTC P1107: Manifold Absolute Pressure (MAP) Sensor Rationality - Low: Wiring Diagram

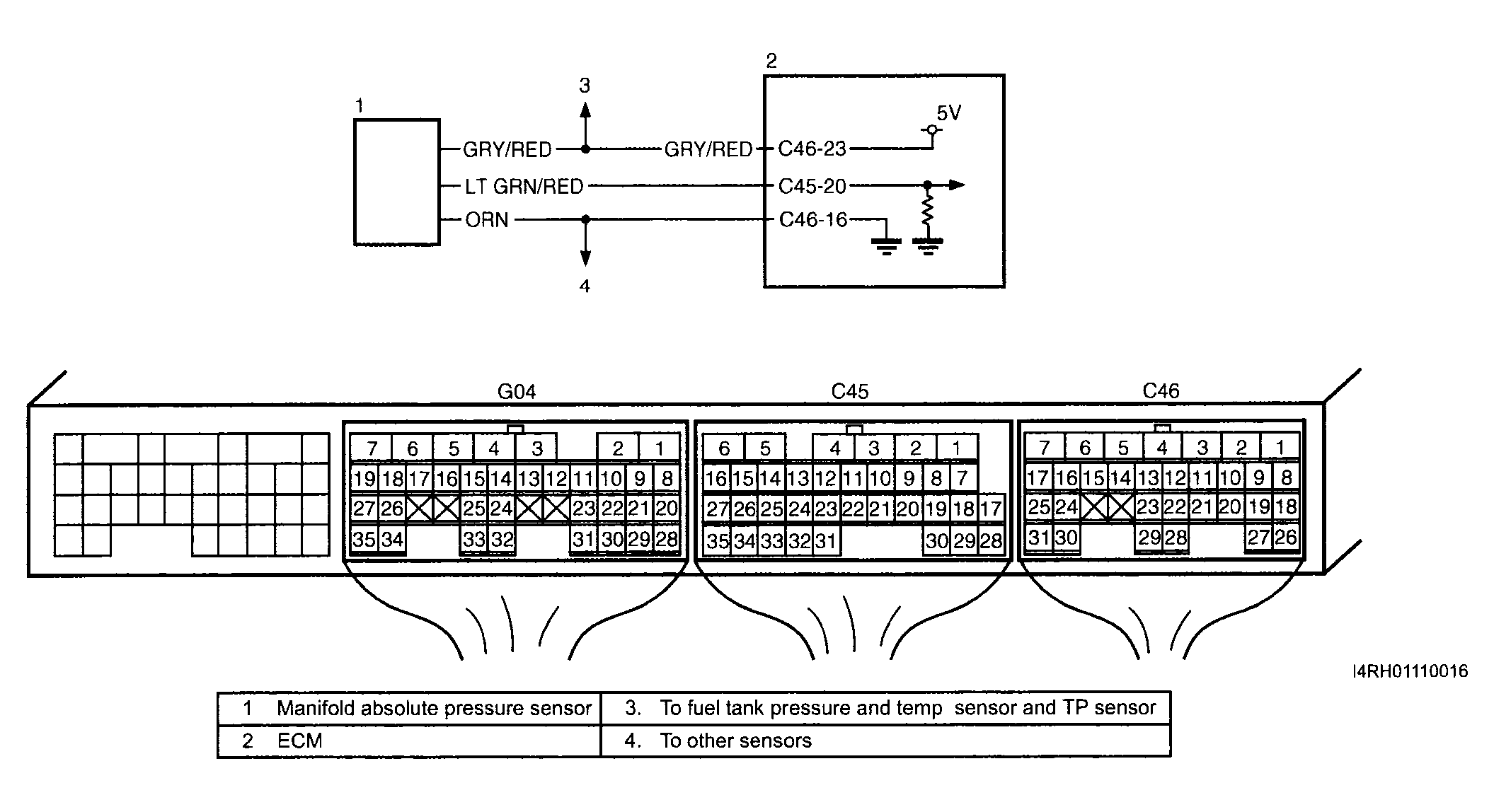

Fig 1: Manifold Absolute Pressure (MAP) Sensor Rationality And Low - Wiring Diagram (DTC P1107)

Courtesy of SUZUKI OF AMERICA CORP.
