System / Wiring Diagram

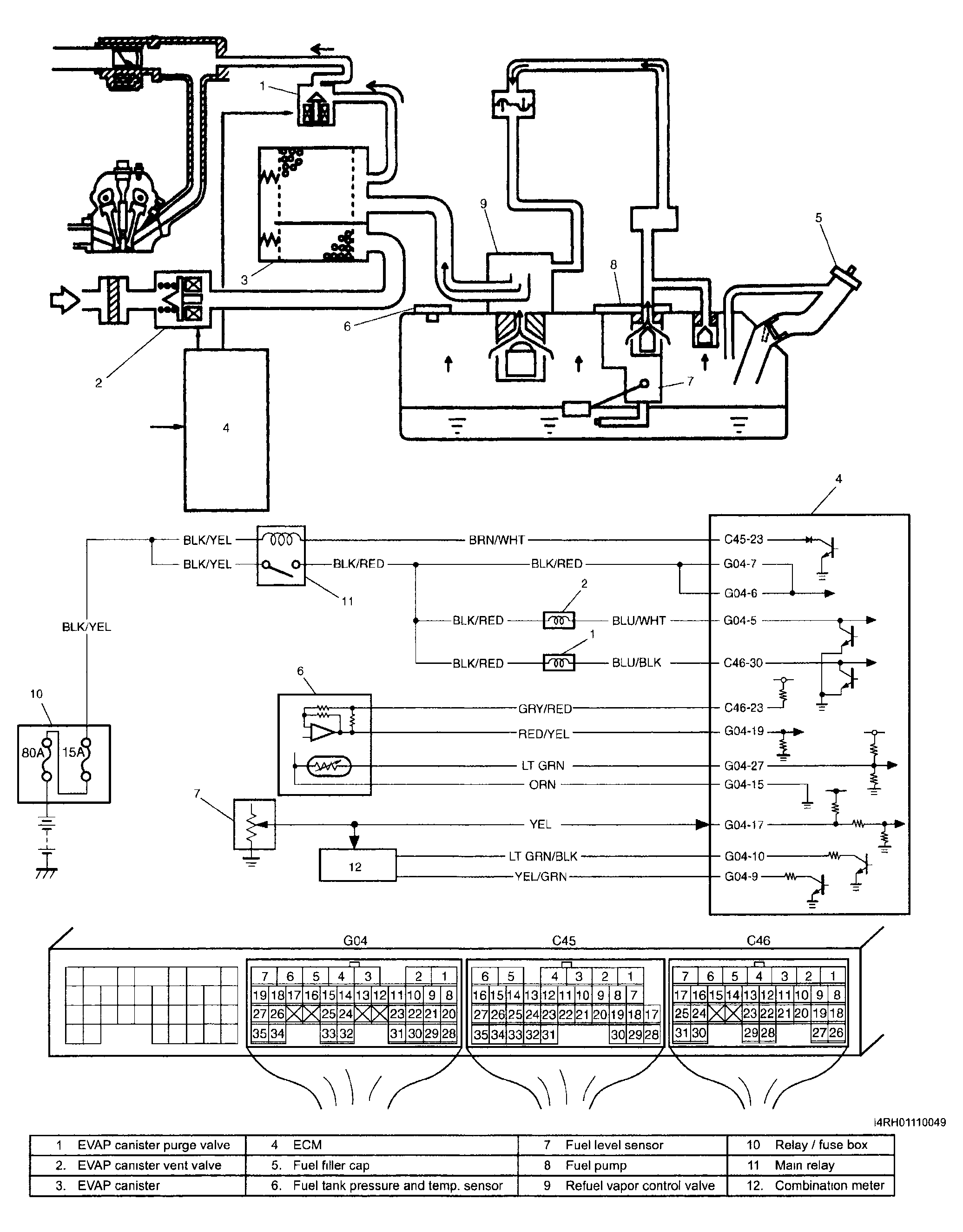

Fig 1: Evaporative Emission Control System Leak Detected - Wiring Diagram (DTC P0456)
G04013738Courtesy of SUZUKI OF AMERICA CORP.
