DTC P0451: Evaporative Emission Control System Pressure Sensor Range/Performance: Wiring Diagram

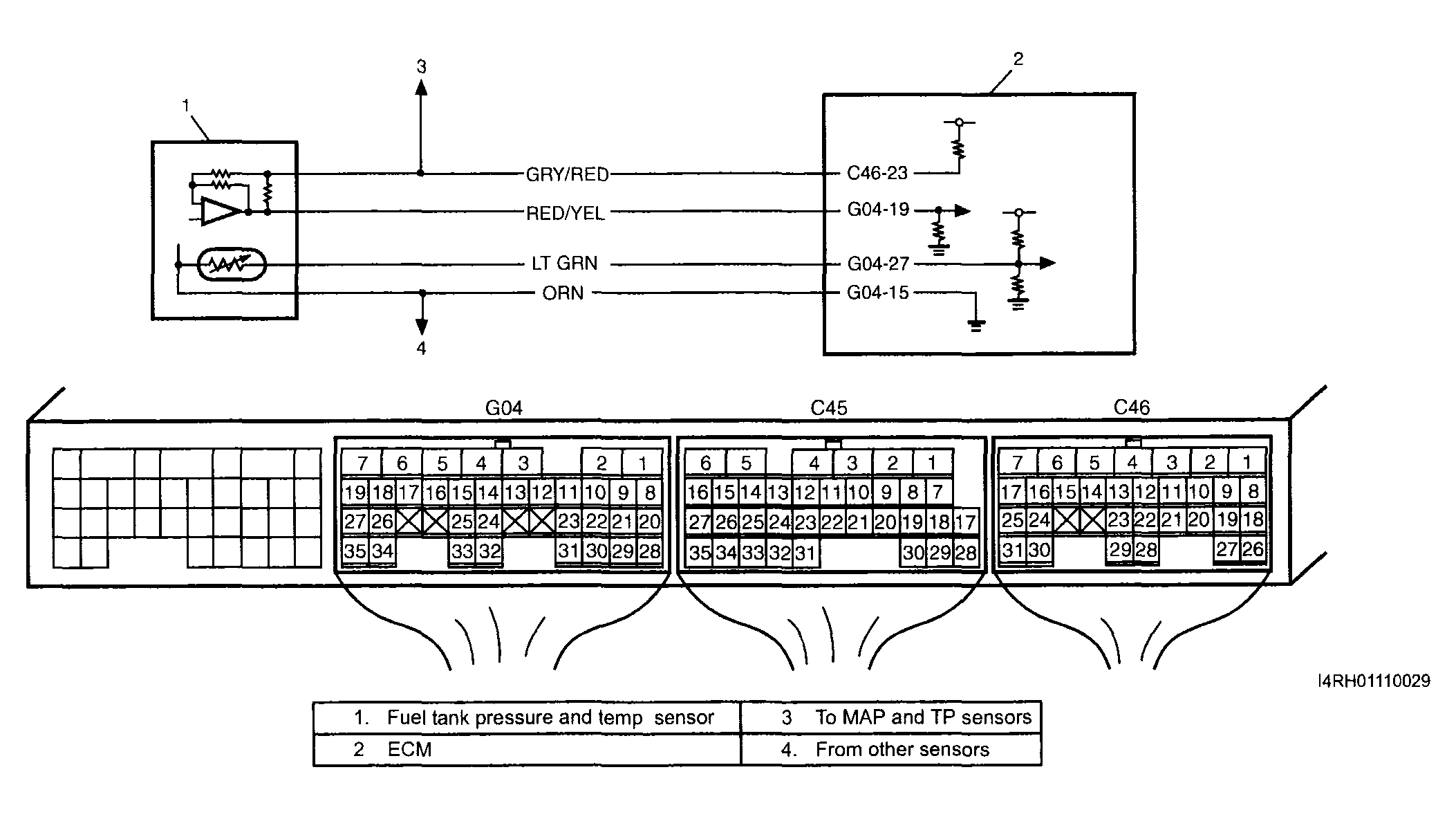

Fig 1: Evaporative Emission Control System Pressure Sensor Range - Wiring Diagram (DTC P0451)
G04013735Courtesy of SUZUKI OF AMERICA CORP.
