DTC P0444: Evaporative Emission Control System Purge Control Valve Circuit Open: Wiring Diagram

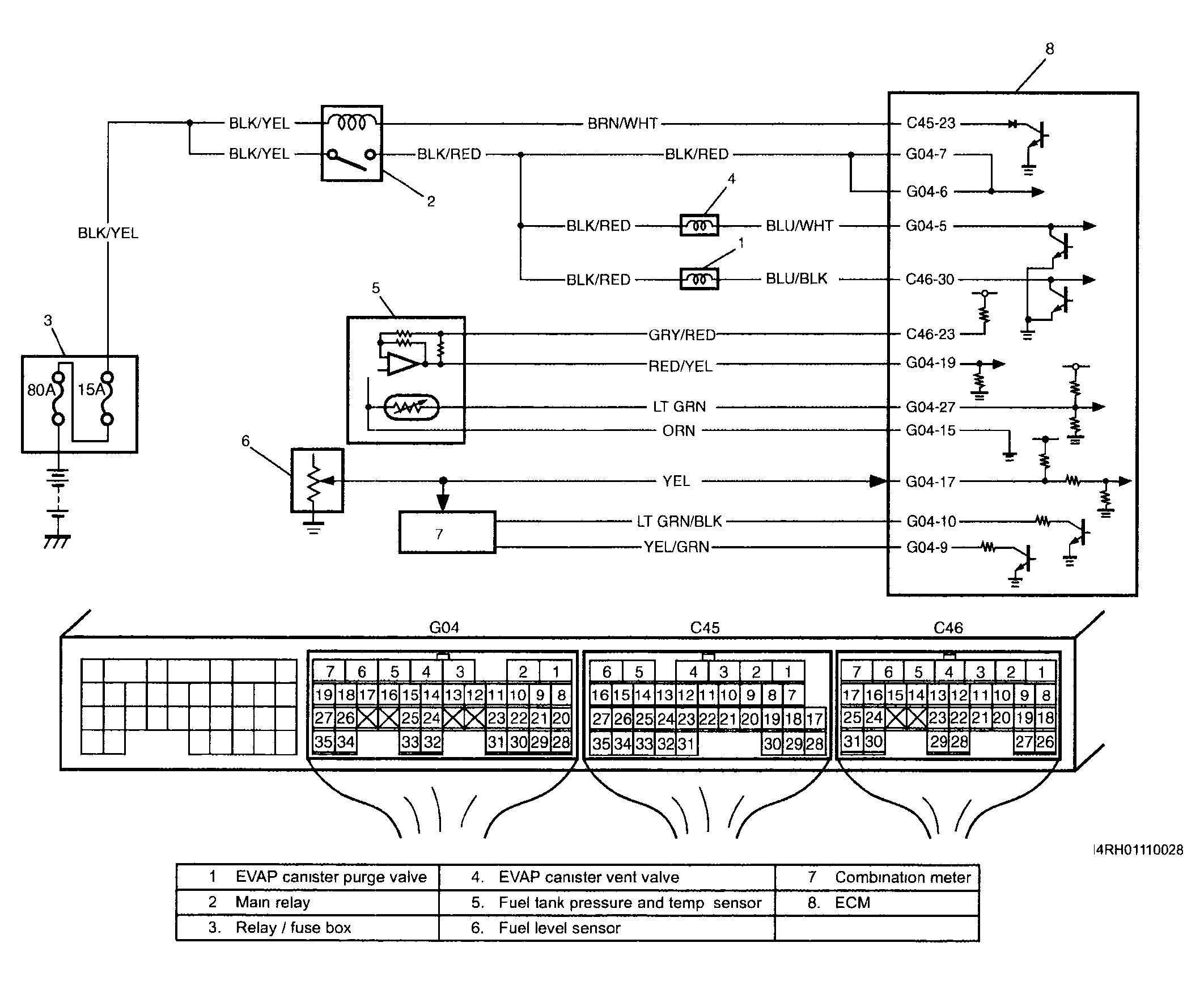

Fig 1: Evaporative Emission Control System Purge Control Valve Circuit Open - Wiring Diagram (DTC P0444)
G04013731Courtesy of SUZUKI OF AMERICA CORP.
