System / Wiring Diagram

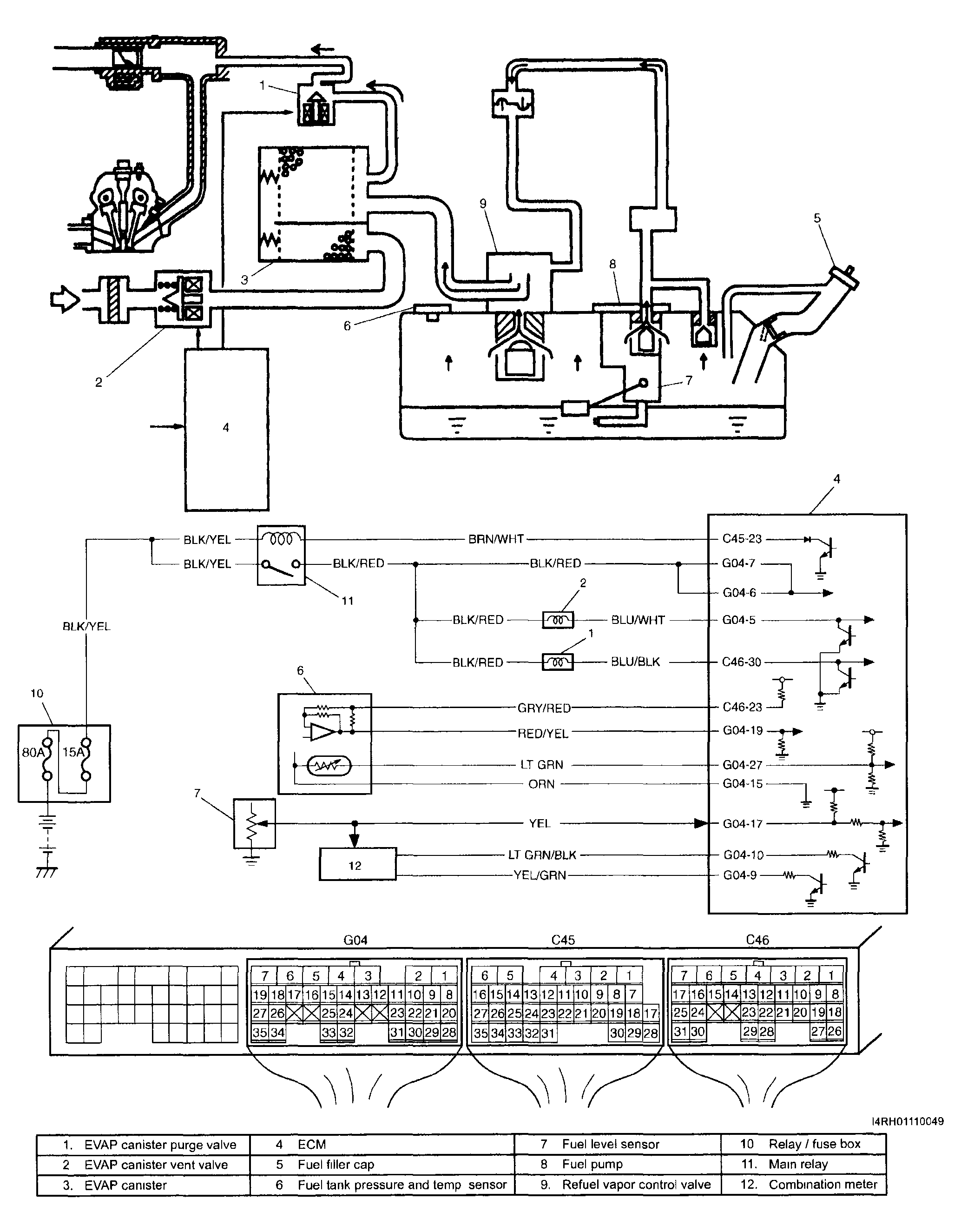

Fig 1: Evaporative Emission Control System - Wiring Diagram (DTC P0442/P0455)
G04013730Courtesy of SUZUKI OF AMERICA CORP.
