DTC P0420: Catalyst System Efficiency below Threshold
>>
System / Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System / Wiring Diagram

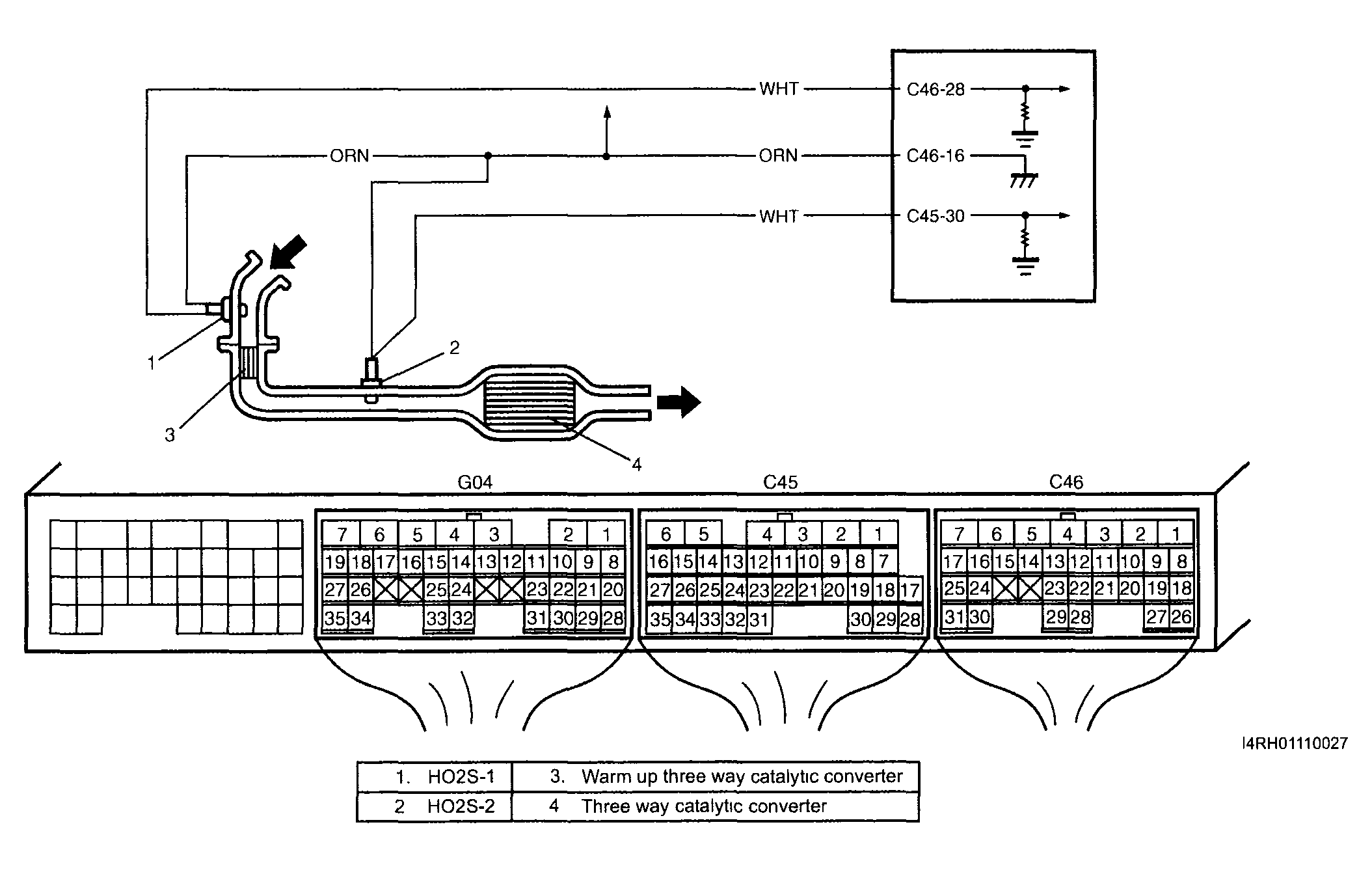

Fig 1: Catalyst System - Wiring Diagram (DTC P0420)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
