DTC P0117: Engine Coolant Temperature Circuit Low Input: Wiring Diagram

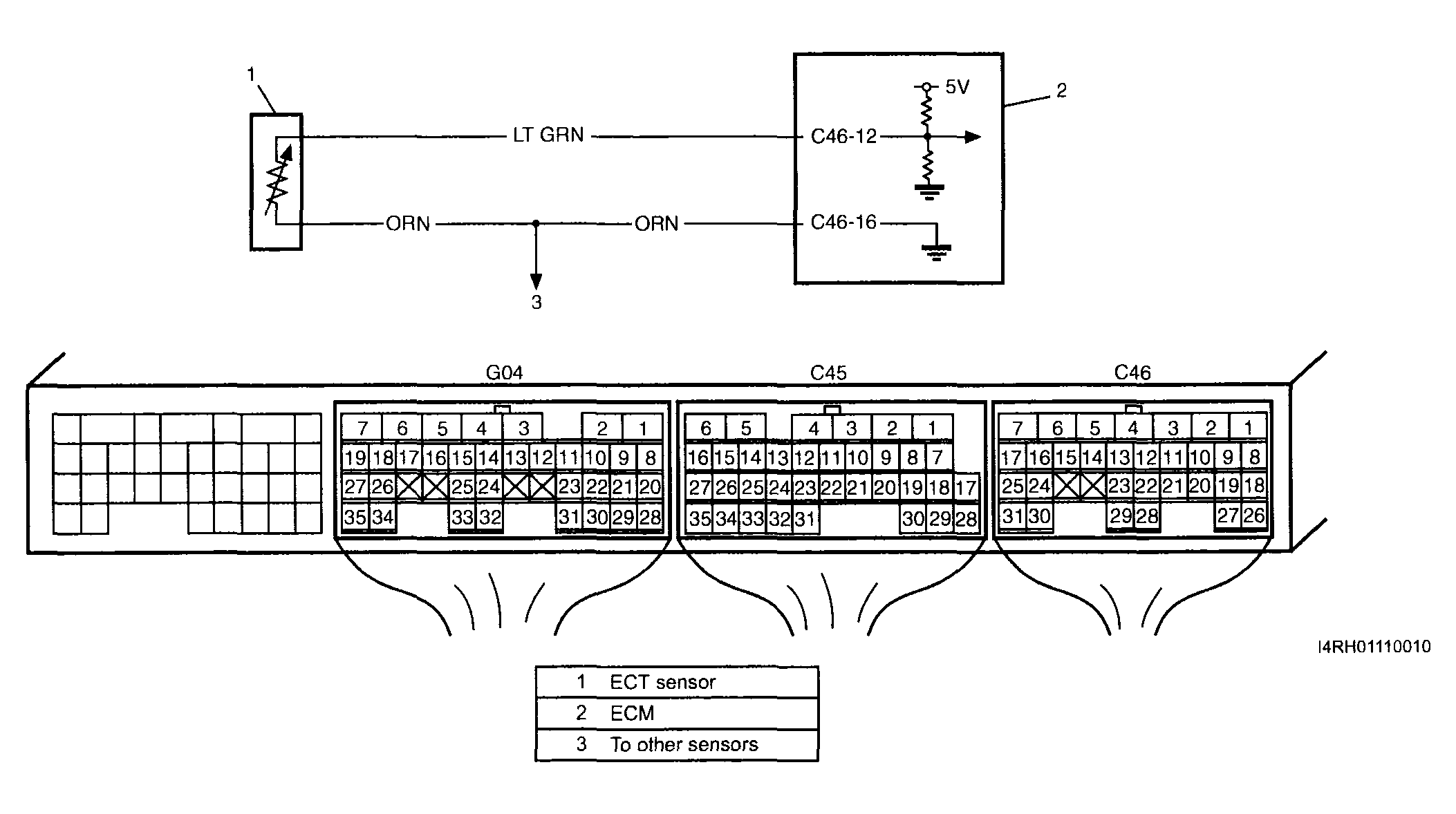

Fig 1: DTC P0117 - Wiring Diagram (Engine Coolant Temperature Circuit Low Input)
G04013697Courtesy of SUZUKI OF AMERICA CORP.
